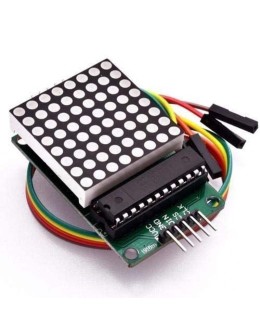

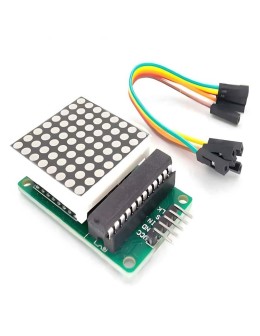

MAX7219 LED Matrix 8x8 Red – compact SPI dot matrix display module, ideal for Arduino, ESP32 and Raspberry Pi projects. Control 64 red LEDs with just 3 data lines and add scrolling text, animations or visual effects to any build.



The MAX7219 LED Matrix 8x8 Red module is a serial-interfaced dot matrix display driver that lets you control 64 red LEDs using only 3 wires (SPI). The MAX7219 IC handles all the multiplexing and brightness control internally, freeing your microcontroller from constant refresh cycles — making this the go-to display module for makers, students and engineers working with Arduino, ESP32 or Raspberry Pi.

Key Features

  • MAX7219 Driver IC: Handles LED multiplexing and brightness control in hardware → minimal CPU overhead
  • SPI Interface (3-wire): Only DIN, CLK and CS lines needed → leaves most GPIO pins free
  • Daisy-chain support: Multiple modules can be chained together using a single SPI bus → scalable for large displays
  • 8x8 Red LED Matrix: 64 individually addressable red LEDs → perfect for scrolling text, symbols and animations
  • Compact & lightweight: Small footprint → easy to embed in enclosures and wearable projects
  • Wide library support: Compatible with popular Arduino libraries (e.g. LedControl, MD_MAX72xx) → quick start for beginners

Pinout & Wiring

PINSymbolDescription
1VCCPower supply (5V)
2GNDGround
3DINSPI Data Input
4CSChip Select (active LOW)
5CLKSPI Clock

Wiring note: Connect VCC to 5V, GND to GND, then map DIN→MOSI, CLK→SCK and CS to any digital output pin on your Arduino. For chaining, connect DOUT of the first module to DIN of the next.

Compatibility

  • Arduino UNO / Nano / Mega: Native 5V SPI — plug and play, no level shifting required.
  • ESP32 / ESP8266: 3.3V logic — use a level shifter on DIN and CLK lines to protect the module.
  • Raspberry Pi: 3.3V GPIO — level shifting recommended; use SPI interface with appropriate Python libraries.

Typical Applications

  • Scrolling text displays: Show messages, notifications or weather data in real time.
  • Digital clocks & timers: Display hours, minutes and seconds with eye-catching animation.
  • Scoreboards & counters: Perfect for game projects, sports counters or lab equipment readouts.
  • LED animations & visual effects: Create pixel art, moving patterns or custom icons for interactive installations.
  • IoT dashboards: Pair with ESP32/ESP8266 to display sensor readings or alerts wirelessly.

Technical Specifications

InterfaceSPI (3-wire: DIN, CLK, CS)
Driver ICMAX7219
Matrix Size8×8 (64 LEDs)
LED ColorRed
Operating Voltage5V DC
Daisy-chainYes (cascade multiple modules)
MPNMAX7219

FAQ

Q: Can I connect multiple MAX7219 modules to one Arduino?
A: Yes. The modules support daisy-chaining — connect DOUT of one module to DIN of the next, share CLK and CS lines, and address each module individually in your code.

Q: Does it work with ESP32 at 3.3V?
A: The module is rated for 5V. It can often work with 3.3V logic signals from an ESP32, but for reliable long-term operation a logic-level shifter on the data lines is recommended.

Package contents: 1× MAX7219 LED Matrix 8x8 Red module.
⚠ Note: Operating voltage is 5V DC. When using with 3.3V systems (ESP32, Raspberry Pi), add a logic-level shifter to avoid damaging the module or the host microcontroller.
