Espressif ESP32-WROOM-32 Development Board 38-Pin Type-C WiFi Bluetooth CH340 for IoT and Smart Home Cyprus
ESP32 WROOM Dev Board 38-Pin Type-C WiFi &...
Espressif ESP32-WROOM-32 Development Board 38-Pin Type-C WiFi Bluetooth CH340 for IoT and Smart Home Cyprus
ESP32 WROOM Dev Board 38-Pin Type-C WiFi & Bluetooth CH340

ESP32 WROOM Dev Board 38-Pin Type-C WiFi & Bluetooth CH340

ESP32/ESP8266 Boards
ESP016
€11.95
Out of Stock

This board is a cutting-edge WiFi & Bluetooth IoT Development Board, powered by a robust dual-core 32-bit (LX6) microcontroller. It provides simultaneous Wi-Fi and Bluetooth (BLE) support, making it the ultimate choice for demanding automation applications. Featuring a Type-C interface and the CH340 communication chip, it guarantees full compatibility with Arduino IDE, MicroPython, and ESPHome. WARNING: All 38 GPIOs operate STRICTLY at 3.3V.



The Core for Every Modern IoT and Smart Home Project

Designed around a dual-core processor clocking up to 240 MHz, this development board delivers top-tier processing power combined with optimized energy consumption. It is the perfect platform to transform your ideas into real Internet of Things projects, offering unmatched hardware interfacing flexibility.

  • Wireless Connectivity: Full integration of Wi-Fi (802.11 b/g/n) and Bluetooth v4.2 (Classic & BLE) protocols for seamless wireless communication with mobile devices, sensors, and smart home hubs.
  • Power & Communication: Equipped with a modern USB Type-C interface and the cost-effective CH340 USB-to-Serial converter (an industry standard) for reliable programming.

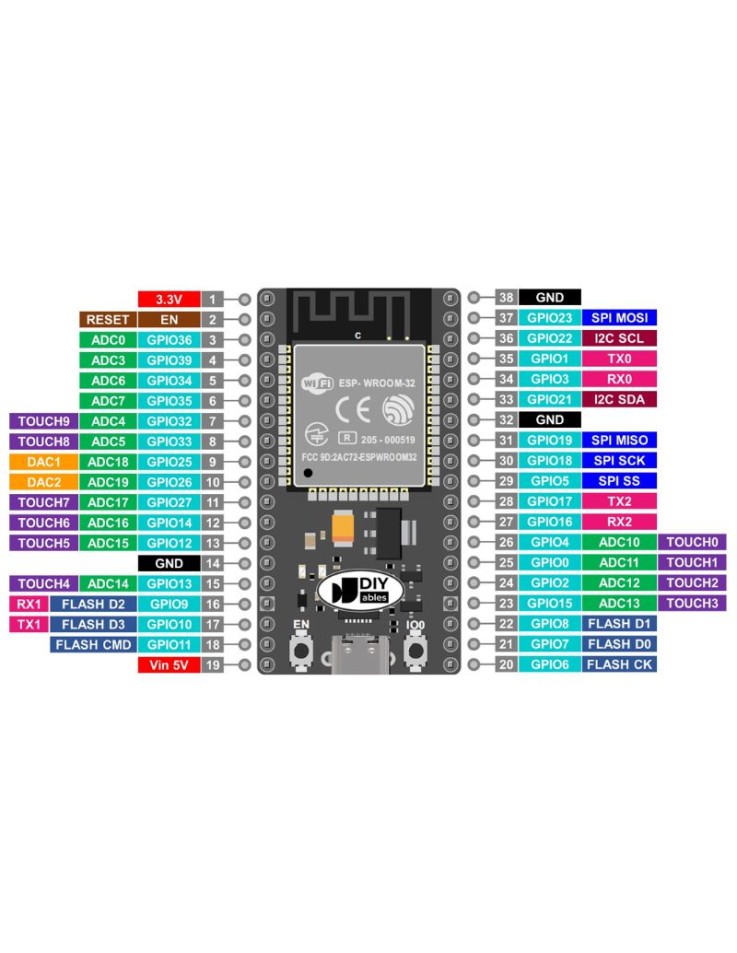

  • Versatile I/O Pins: The expanded 38-Pin layout unlocks more GPIOs (ADC, DAC, PWM, I2C, SPI), making it ideal for projects that require multiple sensors connected simultaneously.
  • Onboard Storage: Features 4MB of Flash Memory and 520KB SRAM for smooth execution of complex scripts.

Frequently Asked Questions

Q: Can I integrate this with Home Assistant?
A: Yes, the board is fully supported by ESPHome and Tasmota, making it ideal for custom Smart Home sensors (e.g., energy meters, Bluetooth proxies, multisensors).

Q: Do the Pins work with 5V sensors?
A: Warning: The GPIO pins operate STRICTLY at 3.3V. To connect 5V components (like ultrasonic distance sensors or 5V displays), you must use a Logic Level Shifter to avoid permanent hardware damage.

Microcontroller / Architecture Dual-core 32-bit LX6 (up to 240 MHz)
Logic Operating Voltage 3.3V (Strictly)
Input Power Voltage 5V (via USB Type-C or Vin)
Wireless Protocols Wi-Fi + Bluetooth (BLE v4.2)
Flash & SRAM Memory 4MB Flash / 520KB SRAM
USB-to-Serial Controller CH340
I/O Pin Count 38 Pins (Extended Layout)

Suggested Alternatives

Looking for something different for your build?

Learn how to easily get started with your ESP

Guide: ESP on Arduino IDE
What's in the Box:
The product ships with all 38 header pins pre-soldered from the factory, making the board breadboard-ready right out of the package. Type-C cable is not included.
