ESP32-S3 N16R8 WiFi Bluetooth (BLE 5.0) Development Board
ESP32-S3 N16R8 WiFi Bluetooth (BLE 5.0) Development Board

ESP32-S3 N16R8 WiFi Bluetooth (BLE 5.0) Development Board

ESP32/ESP8266 Boards
ESP046
Part.No: ESP32-S3-DevKitC-1
€17.95
In Stock
Immediate Dispatch

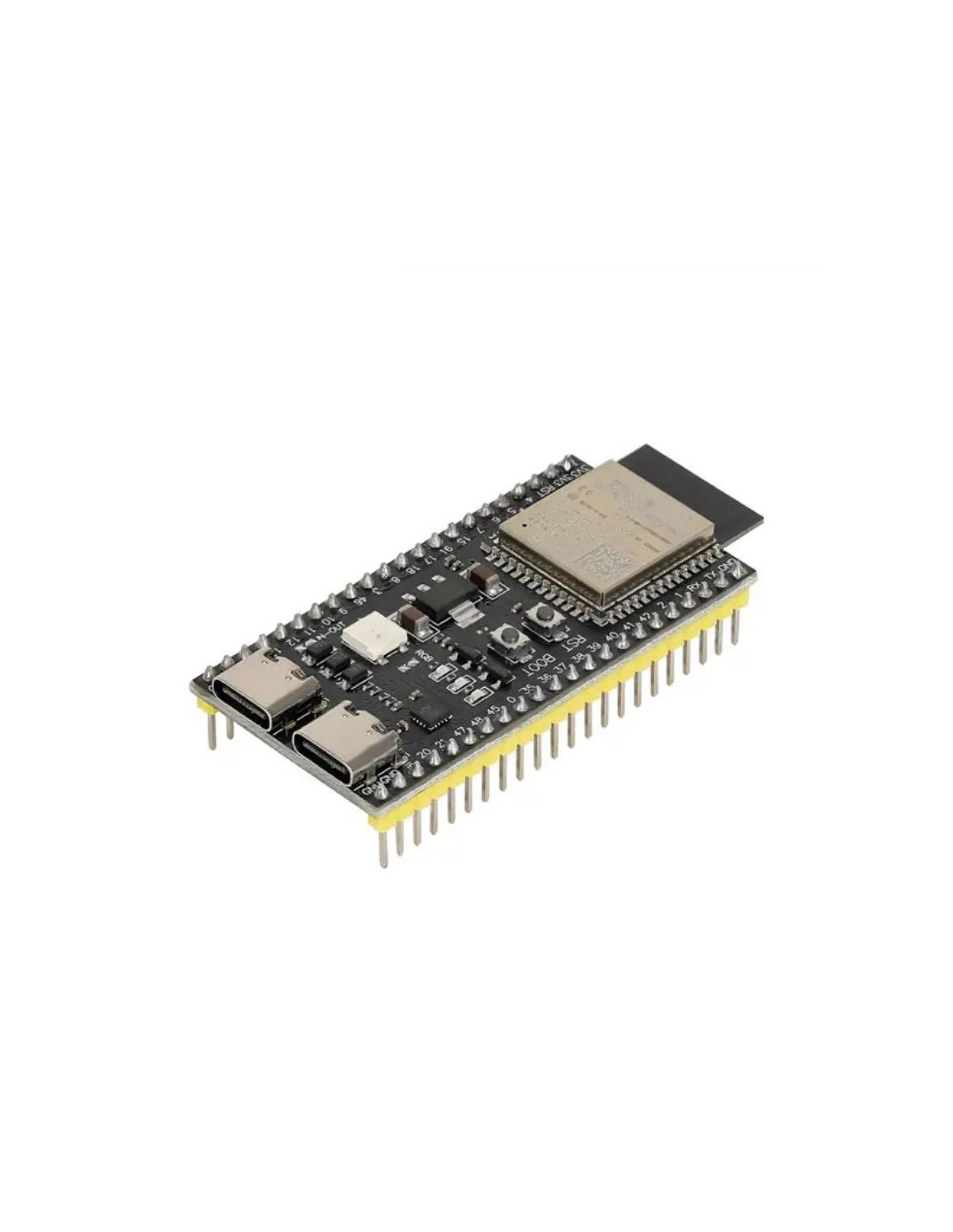

The ESP32-S3-DevKitC-1 (OEM) is a formidable development board powered by the mighty Xtensa 32-bit LX7 dual-core processor, clocked up to 240MHz. It serves as the perfect foundation for demanding IoT, Machine Learning, and Smart Home projects, supporting Wi-Fi (802.11 b/g/n) and Bluetooth LE 5.0 / Mesh. It features dual USB Type-C ports (for UART and Native USB OTG) and is easily programmed via the Arduino IDE or MicroPython. Caution: The operating and logic voltage (logic level) on the GPIO pins is strictly 3.3V.



The Ultimate Board for your IoT Projects: ESP32-S3-DevKitC-1

The compatible ESP32-S3-DevKitC-1 (OEM) board puts the raw processing power of the ESP32-S3 in your hands. Integrating the blazing-fast Xtensa 32-bit LX7 dual-core processor and a wealth of peripheral interfaces, it is engineered to handle complex algorithms, AIoT applications, and robust wireless networking. It is the definitive choice for Engineers, Programmers, and Makers building custom automation nodes (e.g., Home Assistant sensors) that require top-tier performance.

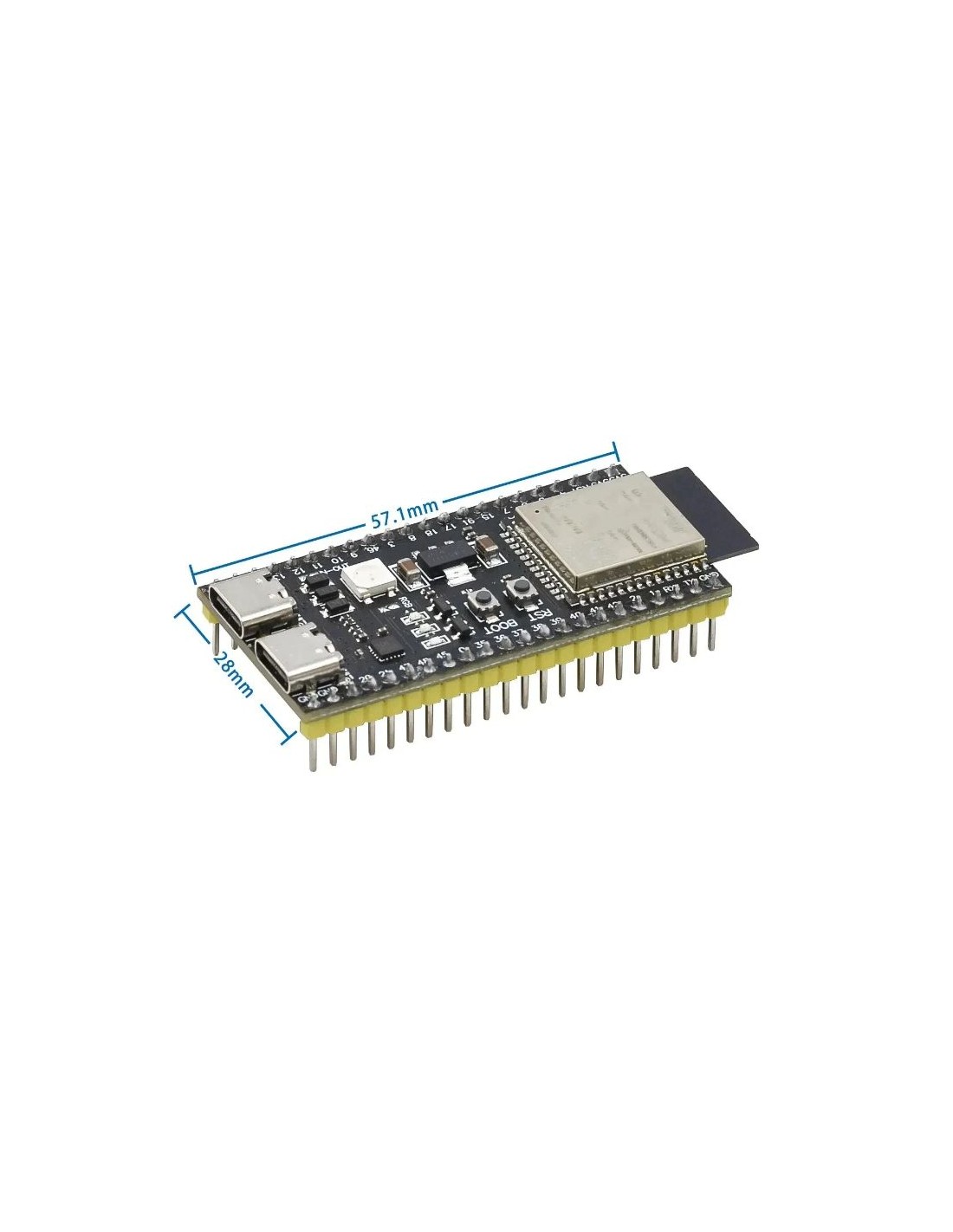

ESP32-S3-DevKitC-1 board details and dimensions

Key Features

  • Top-Tier Processing Power: Dual-core processor at 240MHz with SIMD instruction support, delivering exceptional performance.
  • Next-Gen Wireless Networking: Supports Wi-Fi 4 (2.4 GHz) with data rates up to 150 Mbps and Bluetooth 5 (LE) / Bluetooth Mesh.
  • Dual Type-C Ports: The board features two USB ports. One is routed to the Communication Chip (CP2102/CH340/CH343) for classic UART flashing and debugging, while the other provides a direct connection (Native USB OTG / JTAG) to the microcontroller.
  • Abundant I/O Pins: Extensive pinout featuring 45x GPIO ports, multiple SPI, I2C, UART, and 12-bit ADC interfaces.
  • Strict Logic Voltage: All I/O signals communicate exclusively at 3.3V.

Frequently Asked Questions

Is the ESP32-S3-DevKitC-1 compatible with 5V sensors?

Not directly. As with the entire ESP32 family, the logic voltage on the pins is strictly 3.3V. Connecting a 5V signal directly to a GPIO will fry the microcontroller. You must always use a Level Shifter to read or send signals to 5V modules.

What drivers do I need and which USB port should I use?

For initial programming (flashing), it is recommended to use the UART port (usually labeled COM/UART) which requires the drivers for the onboard Communication Chip (e.g., CH343/CP2102). The second USB port provides Native communication (JTAG/OTG) and is recognized automatically as a USB device by the operating system.

Technical Specifications

Microcontroller (Chip) ESP32-S3 (Xtensa 32-bit LX7 dual-core, 240MHz)
Logic Level Voltage 3.3V
Input Voltage 5V (via USB Type-C ports)
Internal Memory 512 KB SRAM / 384 KB ROM / 16 KB RTC SRAM
Wi-Fi Standard 802.11 b/g/n (Wi-Fi 4)
Bluetooth Standard Bluetooth LE 5.0 / Mesh
Connection Ports 2 x USB Type-C (UART & Native)

Learn how to easily get started with your ESP32

Guide: ESP32 on Arduino IDE

Packaging Information

This is an OEM (compatible) version of the DevKitC-1. The board is shipped in a protective anti-static bag. It is typically supplied with the pin headers unsoldered (unless specified otherwise via a product variant), giving you the flexibility to solder them for breadboard use or to solder wires directly onto the pads.
