Arduino Shields
ARD600
€3.95
In Stock
Immediate Dispatch
Proto Shield for Arduino UNO with Mini Breadboard by Kuongshun — expand your UNO with a solderless prototyping area, DIP IC support, and SMD pads. Ideal for turning breadboard ideas into permanent circuits without soldering.

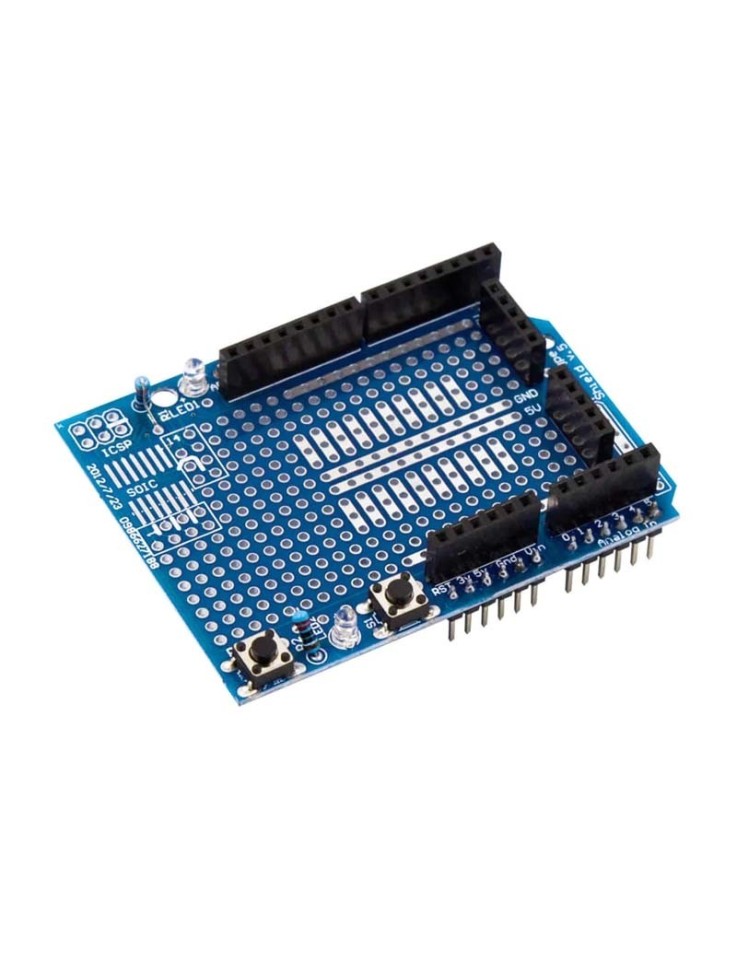

The Kuongshun Proto Shield for Arduino UNO with Mini Breadboard is the go-to prototyping shield for makers who want to move their Arduino projects from a loose breadboard setup into a cleaner, more permanent form — without picking up a soldering iron. It stacks directly on top of your Arduino UNO (R3-compatible), carries all UNO pins to the upper layer, and includes a mini breadboard in the centre for rapid, solder-free prototyping.

Key Features

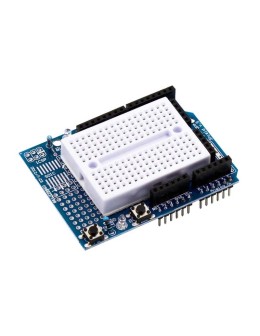

  • Mini Breadboard Included: Placed in the centre section of the shield → allows quick component testing and circuit iteration without soldering.

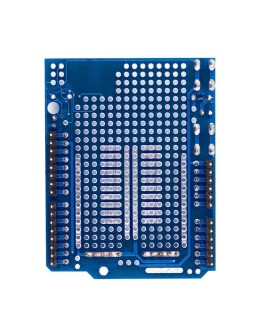

  • Standard 2.54 × 2.54 mm Prototyping Grid: Large, easy-to-solder pads across the board → gives you a clean surface to build permanent circuits when you're ready.
  • DIP IC Pattern (up to 20 pins): Dedicated IC footprint on the board → add microcontrollers, shift registers, op-amps, or other DIP packages directly.
  • SMD Component Areas: Dedicated pads for surface-mount devices → supports mixed through-hole and SMD builds on a single shield.
  • Power Rails: Power buses run down the middle and sides → distributing VCC and GND to your components is straightforward and tidy.
  • Arduino UNO R3 Pin-Compatible: All Arduino UNO pins, including 3.3 V and Reset, are broken out to the top of the shield → no pin is lost.
  • No Soldering Required for Breadboard Use: Use the mini breadboard area straight away → perfect for beginners and rapid prototyping.

Compatibility

  • Arduino UNO (R3): Designed specifically for the UNO form factor; R3 pinout fully supported including the SDA/SCL header.

Typical Applications

  • Turning a breadboard prototype into a tidy, stackable Arduino shield for a finished project
  • Adding custom buttons, LEDs, or sensors directly to your UNO without extra wiring
  • Testing DIP ICs or SMD components alongside Arduino code during development
  • Classroom and workshop use where quick, solderless experimentation is needed
  • Building one-off custom circuits for robotics, home automation, or IoT sensor nodes

Technical Specifications

SpecificationValue
Compatible BoardArduino UNO (R3)
Prototyping Grid Pitch2.54 × 2.54 mm
DIP IC SupportUp to 20 pins
SMD PadsYes
Mini BreadboardIncluded (centre-mounted)
Power RailsMiddle and sides
Pins ExposedAll UNO pins incl. 3.3 V and Reset
BrandKuongshun

FAQ

Q: Can I use this shield without soldering anything?
A: Yes. The included mini breadboard lets you prototype immediately with no soldering. Soldering is only needed when you want to make connections permanent on the proto grid.

Q: Will this shield work with Arduino UNO clones?
A: It is designed for the standard UNO R3 footprint, so any board that follows the same mechanical and pin layout should be compatible.

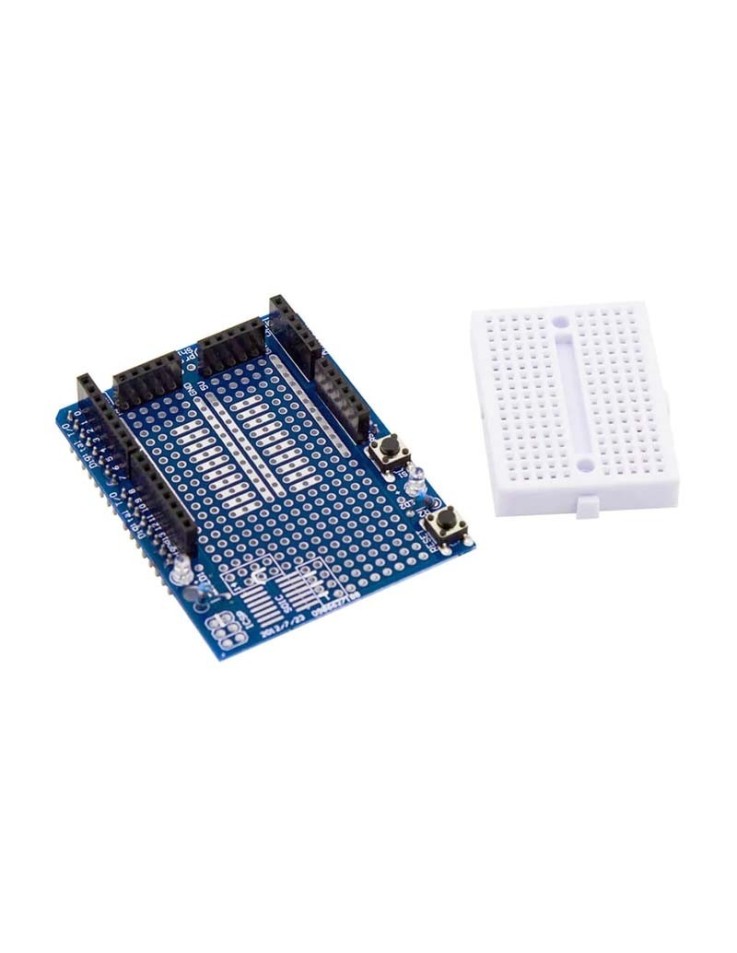

Package Contents: 1 × Proto Shield for Arduino UNO, 1 × Mini Breadboard (pre-mounted)

⚠ Note: Arduino UNO board is not included. Sold as shield only.
