ESP32-C6 SuperMini Development Board

Name: ESP32-C6 SuperMini Development Board
Brand: Αντωνιάδης | antoniadis.com.cy
SKU: ESP032
Price: 7.95 EUR
Availability: InStock

ESP32/ESP8266 Boards

Reference: ESP032

Part.No: ESP32-C6 SuperMini

€7.95

In Stock

Immediate Dispatch

The ESP32-C6 SuperMini Development Board is a compact next-generation development board with Wi-Fi 6, Bluetooth 5.3 (LE) and Zigbee 3.0 / Thread (Matter-ready) support. Fully supported by Arduino IDE, ESP-IDF, PlatformIO and MicroPython.

RISC-V core up to 160MHz, 512KB SRAM, 4MB Flash
Onboard WS2812 RGB LED (Pin 8)

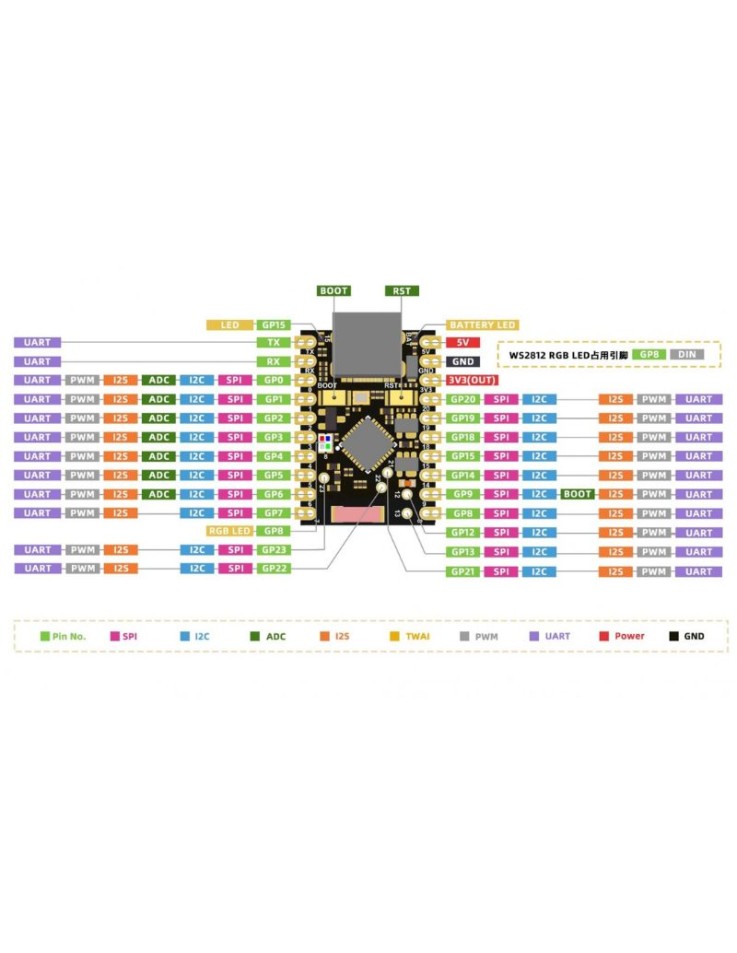

~23 GPIO pins (I2C, SPI, UART, PWM)
USB-C for programming & power
3.3V logic, 5V via USB

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

ESP32-C6 SuperMini: Wi-Fi 6, Zigbee & Thread in a compact footprint

The ESP32-C6 SuperMini combines next-generation wireless connectivity with the familiar Arduino workflow. It's supported directly in the Arduino IDE (via Board Manager / Espressif package), and for more flexibility it also works with ESP-IDF, PlatformIO and MicroPython. It's among the first compact boards with Wi-Fi 6 and Zigbee 3.0 / Thread (Matter-ready) — ideal for smart home and future interoperability projects.

Technical Specifications

Feature	Value
Chip	ESP32-C6 (RISC-V 32-bit, single-core, up to 160MHz)
RAM	512KB SRAM
Flash	4MB external (may vary by batch)
Wi-Fi	Wi-Fi 6 (802.11ax, 2.4GHz, backward-compatible)
Bluetooth	Bluetooth 5.3 (LE)
Zigbee / Thread	Zigbee 3.0 + Thread (Matter-ready)
GPIO	~23 pins (digital/analog, I2C, SPI, UART, PWM)
Onboard LED	WS2812 RGB (connected to Pin 8)
USB	USB-C, native (built-in USB Serial/JTAG controller — no separate USB-to-Serial chip needed)
Operating Voltage	3.3V logic (5V input via USB-C, onboard regulator)
Form Factor	SuperMini, breadboard-friendly

⚠️ Note: Manufacturer sources list two different dimensions (approx. 34x18mm as a general "SuperMini" description vs. 18x16x10mm in a specs table). The exact dimension will be confirmed before publishing.

Comparison with other SuperMini / C6 boards

Board	Core	Wireless	Flash	Size	Best for
ESP32-C6 SuperMini	RISC-V single-core, 160MHz	Wi-Fi 6, BLE 5.3, Zigbee/Thread	4MB	Compact SuperMini	Smart home, Matter/Zigbee, future-proof networks
ESP32-C3 SuperMini	RISC-V single-core	Wi-Fi 4, BLE 5.0	4MB	~22x18mm	Simple IoT projects, low power
ESP32-S3 SuperMini	Dual-core Xtensa LX7	Wi-Fi 4, BLE 5.0	4MB	22.5x18mm	Wearables, more processing power
ESP32-C6-DevKitC-1 N8	RISC-V single-core, 160MHz	Wi-Fi 6, BLE 5.3, Zigbee/Thread	8MB	Full DevKit	Full GPIO breakout, prototyping/testing

Who is this for

Smart Home / Zigbee & Matter Developers: Built-in Zigbee 3.0 and Thread on a single chip, no separate radio module required.

IoT Makers: Wi-Fi 6 for future-proof networks, in a compact and affordable form factor.

Students & Experimenters: Access to Espressif's latest wireless protocols, with full Arduino IDE support.

Frequently Asked Questions

What does Zigbee/Thread bring to this board?
It enables direct participation in smart home networks (e.g. Zigbee mesh, Matter over Thread) without a separate radio module — ideal for custom smart devices.

Do I need an external programmer?
No — the ESP32-C6 SuperMini connects directly via USB-C, using the chip's native USB Serial/JTAG controller.

What's the difference from the ESP32-C6-DevKitC-1 N8?
Same chip (ESP32-C6) in two form factors: the SuperMini is more compact with fewer broken-out GPIO, while the DevKitC-1 N8 offers a full pinout and more Flash (8MB) for more demanding development.
