Compatible Arduino Nano V3.0 USB-C Unsoldered
Compatible Arduino Nano V3.0 USB-C Unsoldered
Compatible Arduino Nano V3.0 USB-C Unsoldered
Compatible Arduino Nano V3.0 USB-C Unsoldered
Compatible Arduino Nano V3.0 USB-C Unsoldered
Compatible Arduino Nano V3.0 USB-C Unsoldered

Compatible Arduino Nano V3.0 USB-C Unsoldered

Arduino Compatible Boards
ARD0241
Part.No: AH031
€9.95
In Stock
Immediate Dispatch

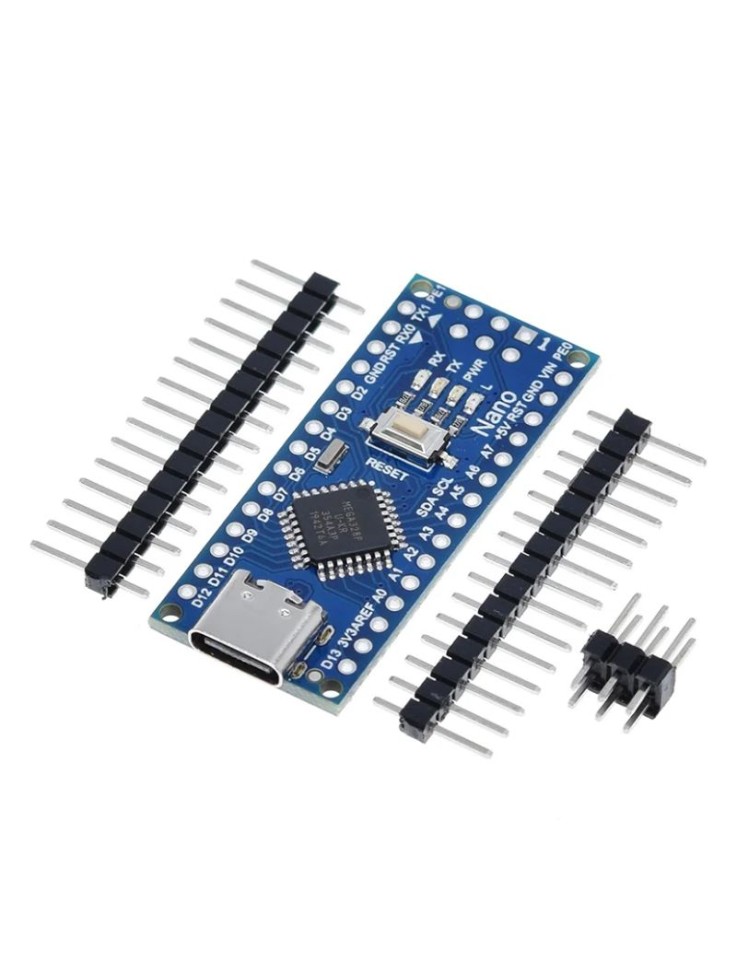

The Compatible Arduino Nano V3.0 USB-C Unsoldered is an ultra-compact board (18.5×43mm) functionally identical to the Arduino Nano — ATmega328P @ 16MHz, 8 analog inputs, 14 digital I/O — with a USB-C connector and no pre-soldered headers for maximum installation flexibility.

  • 🔌 USB-C connector — same cable as your laptop & smartphone
  • ⚙️ ATmega328P @ 16MHz, 32kB Flash, 8 analog inputs, 6 PWM, CH340
  • 🔧 No soldered headers — solder your preferred header type
  • ⚠️ Not a genuine Arduino Nano. Genuine Nano here.



Compatible Arduino Nano V3.0 USB-C Unsoldered — USB-C and Header Flexibility in One

⚠️ Important Note: This board is compatible with the Arduino Nano but is not a genuine Arduino board. For the official genuine board choose the Arduino Nano (A000005).

The Compatible Arduino Nano V3.0 USB-C Unsoldered (SKU: AH031) combines the two most requested features in one version: the modern USB-C connector — same cable as your laptop and smartphone — and the flexibility of the unsoldered version for soldering custom headers. Functionally identical to the Arduino Nano: ATmega328P @ 16MHz, 8 analog inputs, 14 digital I/O (6 PWM), bootloader pre-installed, full Arduino IDE compatibility.

🔧 Need immediate breadboard use without soldering? Choose the Compatible Nano USB-C with soldered headers — same board, breadboard-ready.

Technical Specifications

Feature Specification
Microcontroller ATmega328P (SMD)
USB-to-Serial Chip CH340 (driver installation required)
USB Connector USB-C
Operating Voltage 5V
Input Voltage 7–12V (recommended) / 6–20V (limit)
Clock Speed 16 MHz
Flash / SRAM / EEPROM 32 kB (2kB bootloader) / 2 kB / 1 kB
Digital I/O Pins 14 (6 PWM)
Analog Input Pins 8 (A0–A7)
Max DC per I/O Pin 40 mA
Headers Included — soldering required
Bootloader Pre-installed — immediate use with Arduino IDE

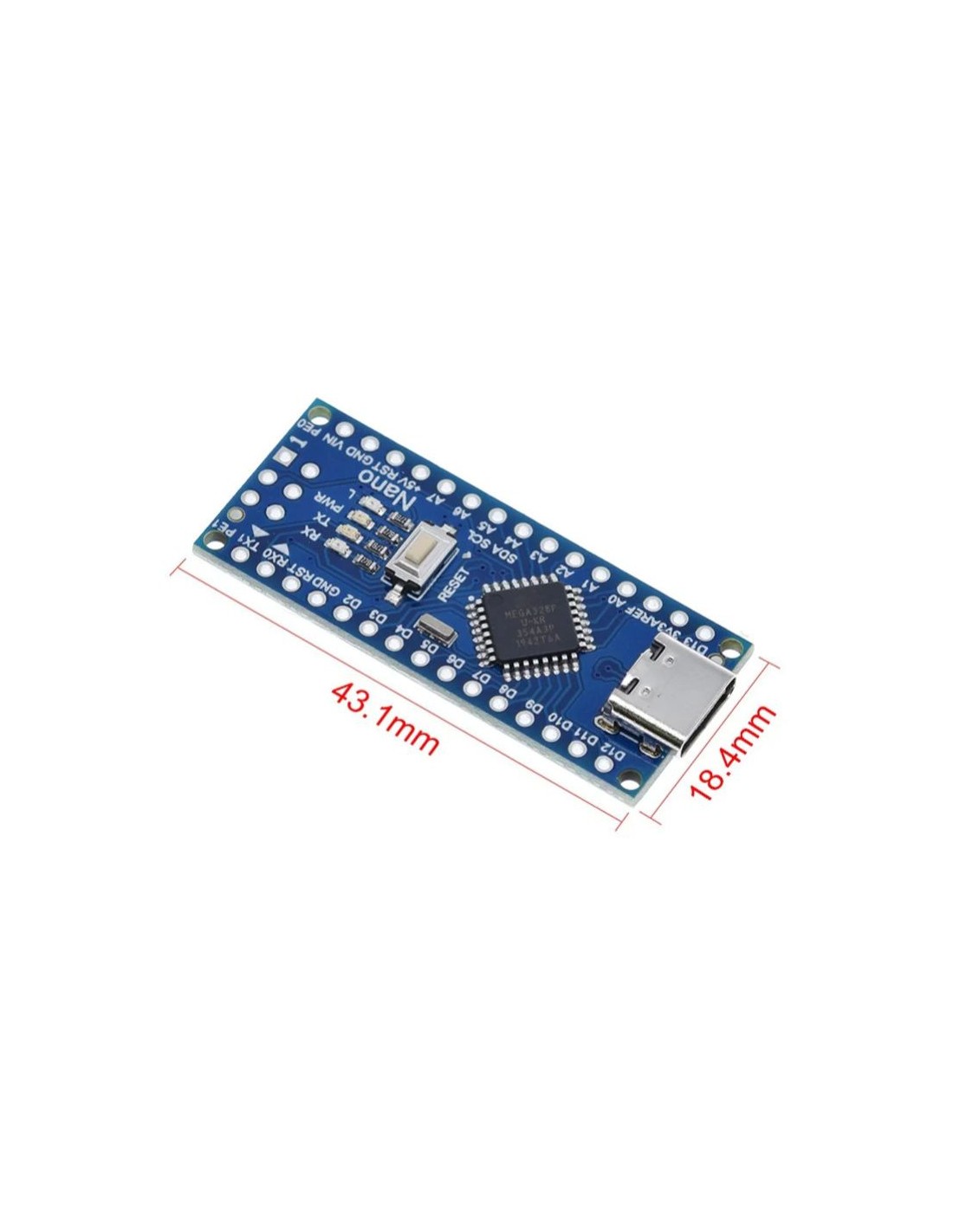

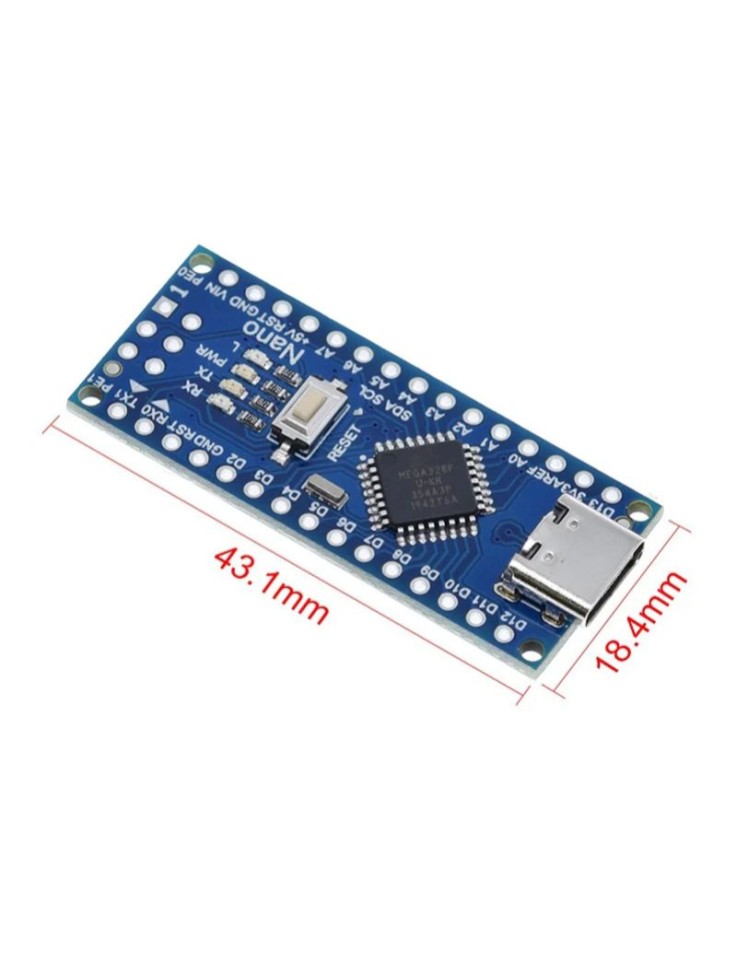

Dimensions 18.5mm × 43mm

Which Nano version should I choose?

Unsoldered CH340
Mini-USB		 Compatible with Headers
Mini-USB		 Unsoldered USB-C
(this version)		 Compatible USB-C
with Headers		 Genuine
Arduino Nano
Headers Unsoldered Soldered ✓ Unsoldered Soldered ✓ Soldered ✓
USB Mini-USB Mini-USB USB-C ✓ USB-C ✓ Mini-USB
Driver required Yes Yes Yes Yes No
Breadboard-ready ✗ (soldering) ✓ ✗ (soldering) ✓ ✓
Official Arduino ✗ ✗ ✗ ✗ ✓
Best for Custom PCB, flexibility Breadboard, beginners USB-C + custom headers USB-C + breadboard Official support

Who is it for?

  • Makers & embedded engineers with USB-C setups: If your computer only has USB-C ports, this version eliminates the need for adapters. The unsoldered format gives you freedom to choose your header type — straight, angled, female, or solder directly onto a custom PCB.
  • Bulk prototypers with USB-C workstations: Ideal for bulk purchase for labs that already have USB-C cables everywhere and want mounting flexibility. Pairs with sensors and modules.
  • Students with a soldering iron: If you already have a USB-C cable and basic soldering skills, this version gives you the best of both worlds — modern connectivity and header choice.

See Also

Frequently Asked Questions

Do I need to solder the headers to use this board?
Yes. The Unsoldered version includes headers but you need a soldering iron to fit them. If you don't have a soldering iron, choose the Compatible Nano USB-C with soldered headers.

Does the CH340 chip require a driver?
Yes. A driver must be installed (free, available for Windows/macOS/Linux). Once installed, select in Arduino IDE: Board → "Arduino Nano", Processor → "ATmega328P".

What is the difference from the Compatible Nano CH340 Unsoldered (Mini-USB)?
The only difference is the USB connector — this version (AH031) has USB-C, while the AA237 has Mini-USB. Both are unsoldered. If you already have USB-C cables, this is the better choice.
