Compatible Arduino Nano V3.0 ATmega328P CH340C Type-C
Compatible Arduino Nano V3.0 ATmega328P CH340C Type-C

Compatible Arduino Nano V3.0 ATmega328P CH340C Type-C

Arduino Compatible Boards
ARD0251
€9.95
In Stock
Immediate Dispatch

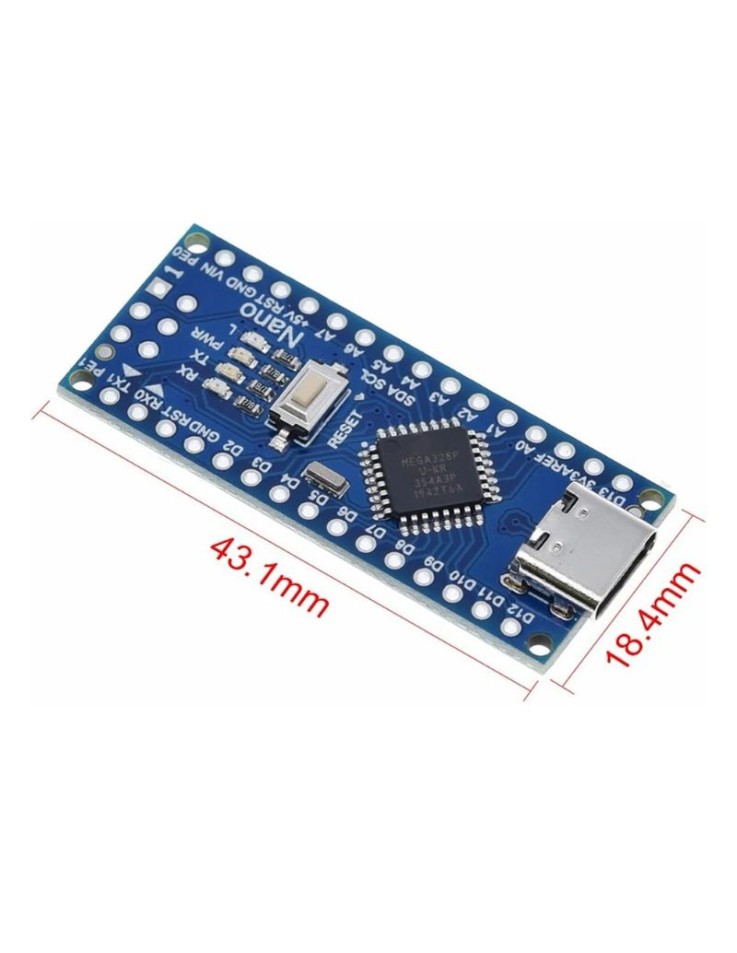

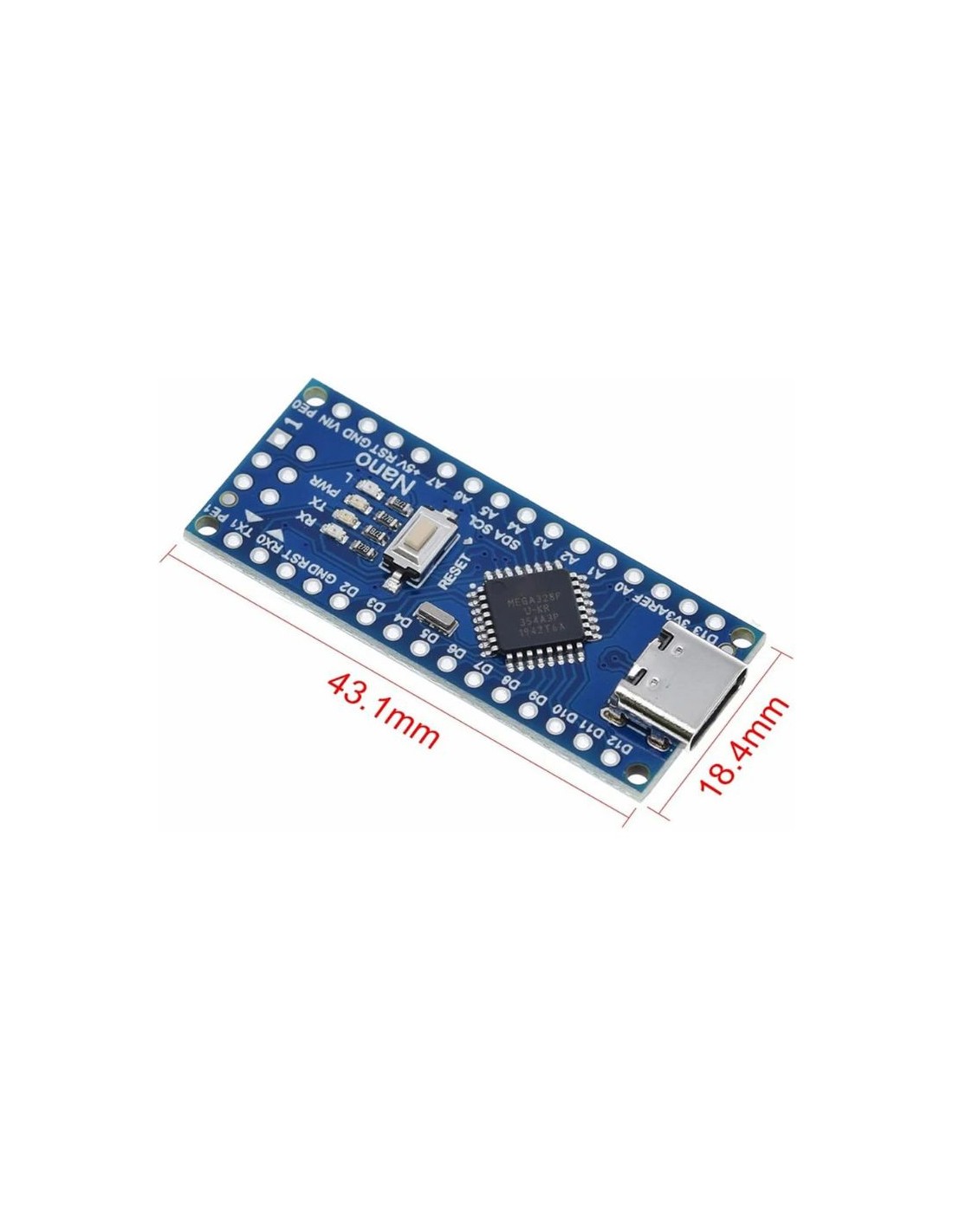

This Compatible (Clone) Arduino Nano V3.0 board is a compact and powerful microcontroller based on the 8-bit ATmega328P architecture. It features a modern Type-C interface for power and programming, driven by the reliable CH340C USB-to-Serial chip. It is 100% compatible with the official Arduino IDE, making it a highly cost-effective choice for STEM education, electronics hobbyists, and DIY robotics projects in Cyprus.



The Ideal Development Board for IoT and Robotics Engineering

The Arduino ecosystem delivers incredible versatility, making it simple and intuitive to learn programming, automation, and electronics. This ultra-compact development board allows you to build sophisticated projects while keeping your breadboard prototyping or final enclosure footprint to an absolute minimum.

Key Features

  • Software Compatibility: Fully supported by the official Arduino IDE, Web Editor, and popular block-based educational tools like Scratch and mBlock.
  • Architecture & Interfaces: Built with 14 Digital Input/Output Pins (including 6 PWM outputs for precise motor, servo, and dimming control) and 8 Analog Inputs (A0 ~ A7) for comprehensive sensor interfacing.
  • Reliability & Stability: Features high-grade soldering quality, stable data telemetry via the integrated CH340C serial bridge, and onboard overcurrent protection on the USB port.
  • Modern Connectivity: Equipped with a robust USB Type-C connector, replacing fragile older mini-USB ports for a longer operational lifespan and universal cable compatibility.

Frequently Asked Questions

Q: What is the difference between an Original and a Compatible board?
A: A compatible board offers identical functionality, layout, and pin configuration to the original open-source Arduino hardware design, but is manufactured by third-party facilities to deliver a budget-friendly option.

Q: Is a specific driver required to connect the board to a computer?
A: Since this board utilizes the CH340 serial chip, Windows and macOS users may need a quick, one-time installation of the CH340 driver, whereas Linux distributions automatically recognize the device. Original boards are natively recognized across all platforms.

Technical Specifications

Board Model Nano V3.0 (Compatible)
Microcontroller (MCU) ATmega328P (8-bit AVR)
Operating Voltage 5V DC
Input Voltage (Vin) 7V - 12V DC (Limits: 6V - 20V)
Digital Pins (Digital I/O) 14 (TX, RX, D2 ~ D13) including 6 PWM (D3, D5, D6, D9, D10, D11)
Analog Pins (Analog Input) 8 (A0 ~ A7)
USB Chip CH340C
Flash Memory 32 KB (of which 2 KB is reserved for the Bootloader)
Clock Speed 16 MHz

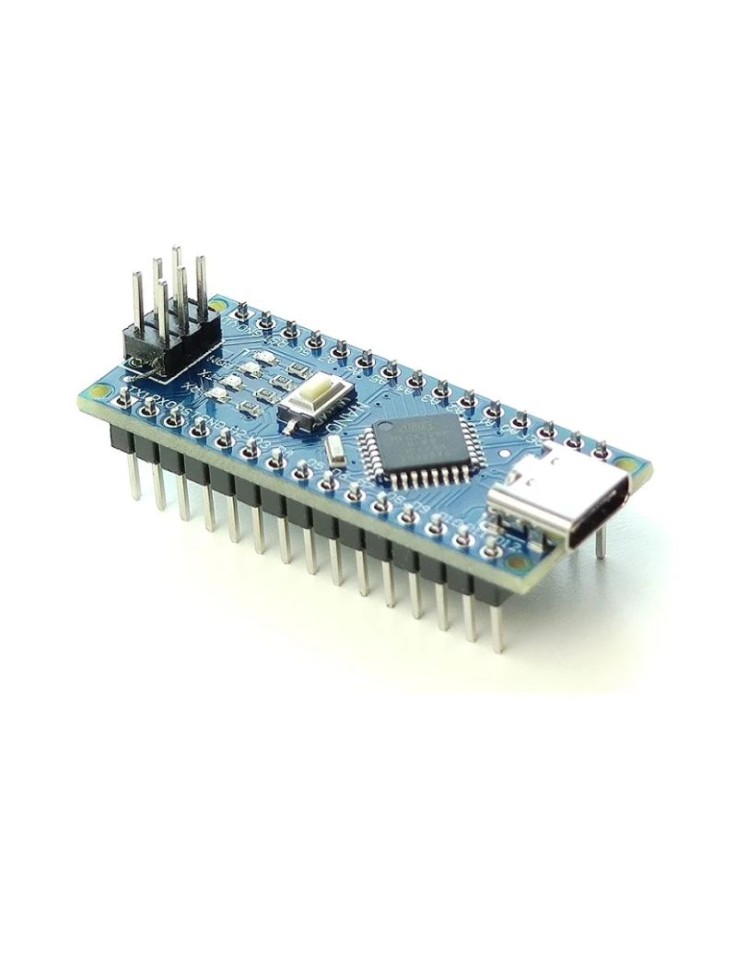

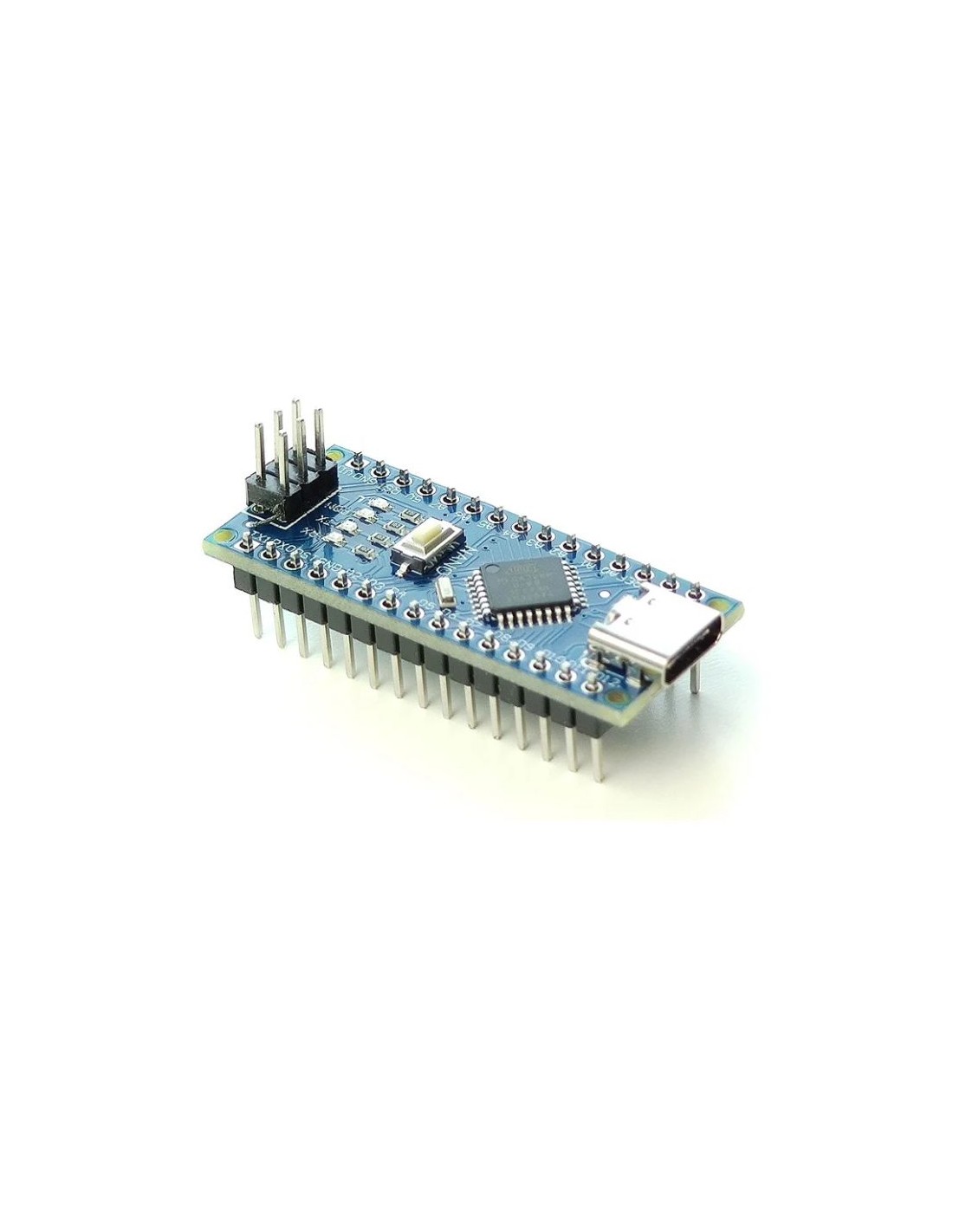

Packaging & Sales Unit: Price indicates 1 piece of the Nano V3.0 development board (pre-soldered headers).

Warning: Exceeding the recommended input voltage thresholds on the power pins or linking inductive/heavy loads directly without proper current-limiting resistors will cause irreversible hardware damage to the microcontroller.
