Compatible Arduino Nano CH340 with Headers

Name: Compatible Arduino Nano CH340 with Headers
Brand: Kuongshun
SKU: ARD025
Price: 8.95 EUR
Availability: OutOfStock

Arduino Compatible Boards

Reference: ARD025

Part.No: AA008

€8.95

Out of Stock

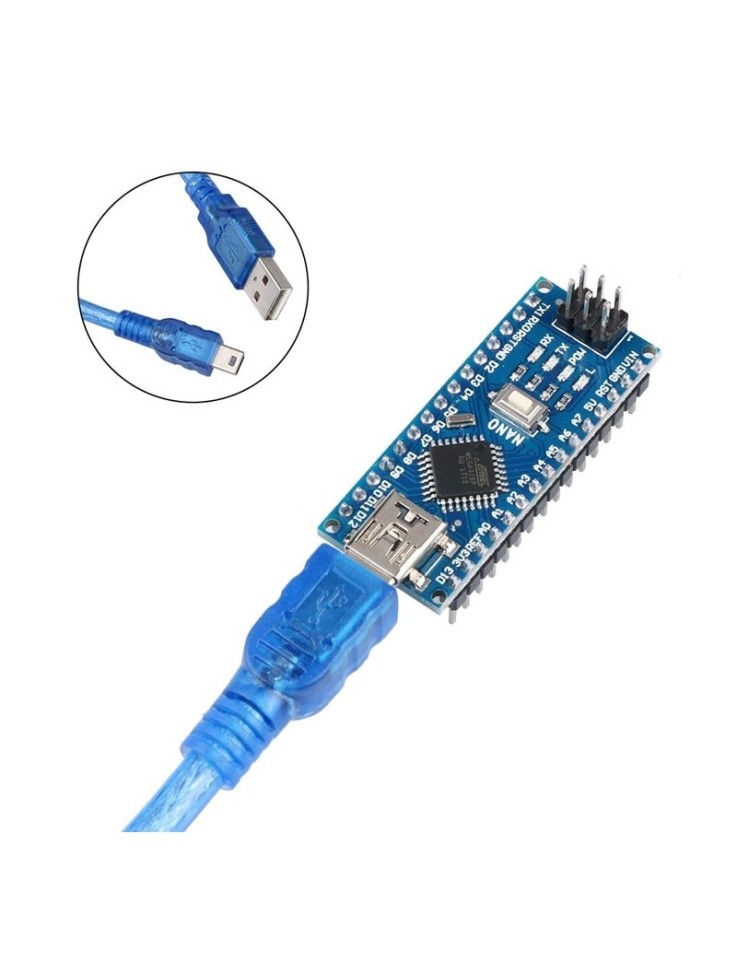

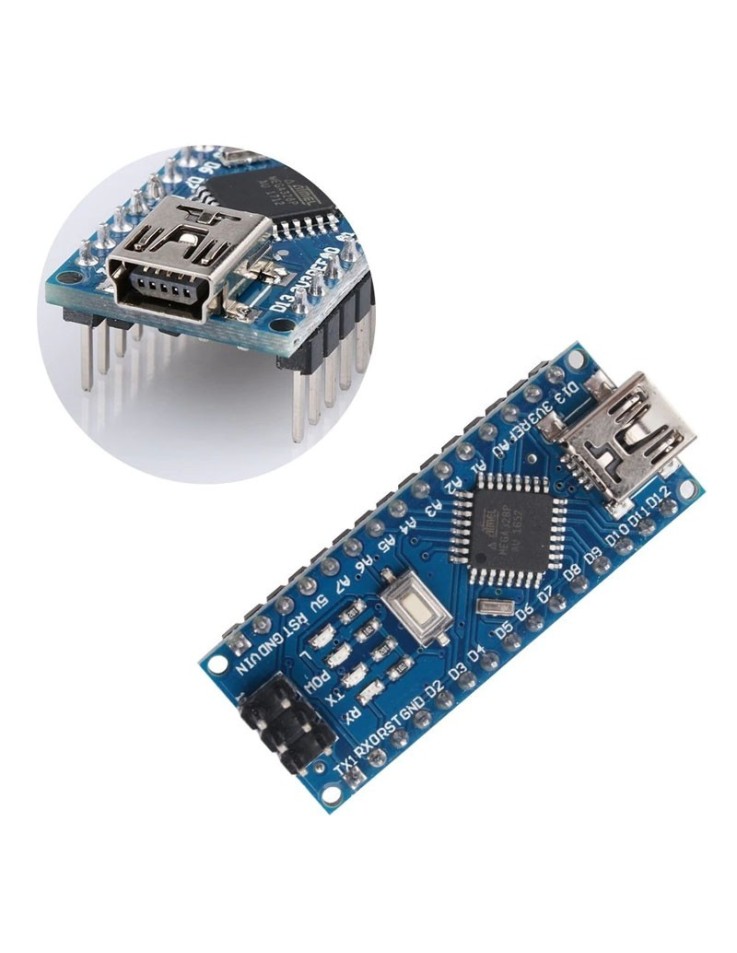

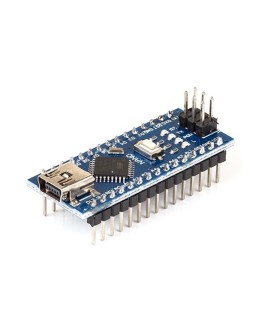

The Compatible Arduino Nano CH340 with Headers is an ultra-compact board (44.5×18mm) functionally identical to the Arduino Nano — ATmega328P @ 16MHz, 8 analog inputs, 14 digital I/O — with pre-soldered headers ready for immediate breadboard use, no soldering required.

📐 44.5×18mm, 5g — ultra-compact, breadboard-ready from the start
⚙️ ATmega328P @ 16MHz, 32kB Flash, 8 analog inputs, 6 PWM, Mini-USB
✅ Pre-soldered headers — plugs straight into a breadboard
⚠️ Not a genuine Arduino Nano. Genuine Nano here.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

Compatible Arduino Nano CH340 with Headers — Compact, Breadboard-Ready, No Soldering

⚠️ Important Note: This board is compatible with the Arduino Nano but is not a genuine Arduino board. For the official genuine board choose the Arduino Nano (A000005).

The Compatible Arduino Nano CH340 with Headers (SKU: AA008) is functionally identical to the Arduino Nano: ATmega328P @ 16MHz, 8 analog inputs, 14 digital I/O (6 PWM) on an ultra-compact 44.5×18mm PCB. The with Headers version means the pin headers are already soldered — plug the board straight into your breadboard and start building immediately. The ideal choice for beginners, students, and any project that needs an instant start with no soldering iron required.

Technical Specifications

Feature	Specification
Microcontroller	ATmega328P-AU (SMD)
USB-to-Serial Chip	CH340G (driver installation required)
Operating Voltage	5V
Input Voltage	5–12V DC (external) / USB / 9V battery
Clock Speed	16 MHz
Flash / SRAM / EEPROM	32 kB (0.5kB bootloader) / 2 kB / 1 kB
Digital I/O Pins	14 — TX, RX, D2–D13 (6 PWM: D3,D5,D6,D9,D10,D11)
Analog Input Pins	8 (A0–A7)
USB Connector	Mini-USB
Headers	Pre-soldered — ready for immediate breadboard use
Colour / Dimensions / Weight	Blue · 44.5×18×7.3mm · 5g

Which Nano version should I choose?

	Unsoldered CH340	Compatible with Headers (this version)	Compatible USB-C	Genuine Arduino Nano
Headers	Unsoldered	Soldered ✓	Soldered ✓	Soldered ✓
USB Connector	Mini-USB	Mini-USB	USB-C	Mini-USB
USB Chip	CH340G	CH340G	CH340C	ATmega16U2
Driver required	Yes	Yes	Yes	No (plug & play)
Instant breadboard use	✗ (soldering needed)	✓	✓	✓
Official Arduino	✗	✗	✗	✓
Best for	Custom PCB, flexibility	Breadboard, beginners	Modern USB-C	Official support

Who is it for?

Beginners & students: The easiest entry into the Nano world — plug the board into the breadboard and start immediately. No soldering iron or technical skills needed. Ideal for school projects and STEM lessons.
Makers & prototypers: Everything you need for rapid prototyping — connects directly to sensors, modules, and displays via breadboard. The compact size leaves more breadboard space than a UNO.
Educational institutions: A cost-effective option for bulk purchase — same functionality as the genuine Nano at a lower cost per student. Ready to use with no preparation.

Frequently Asked Questions

Does the CH340G chip require a driver?
Yes. The CH340G requires a driver (free, available for Windows/macOS/Linux). Once installed, select in Arduino IDE: Board → "Arduino Nano", Processor → "ATmega328P".

Does it run the same code as the genuine Arduino Nano?
Yes. The ATmega328P-AU is the same microcontroller — all Arduino sketches, libraries, and tutorials work identically.

What is the difference from the Compatible Nano USB-C?
The Compatible Nano USB-C has a modern USB-C connector — the same cable as your smartphone or laptop. This version (AA008) has Mini-USB. If you already have a Mini-USB cable or the USB type doesn't matter, the AA008 does exactly the same job.
