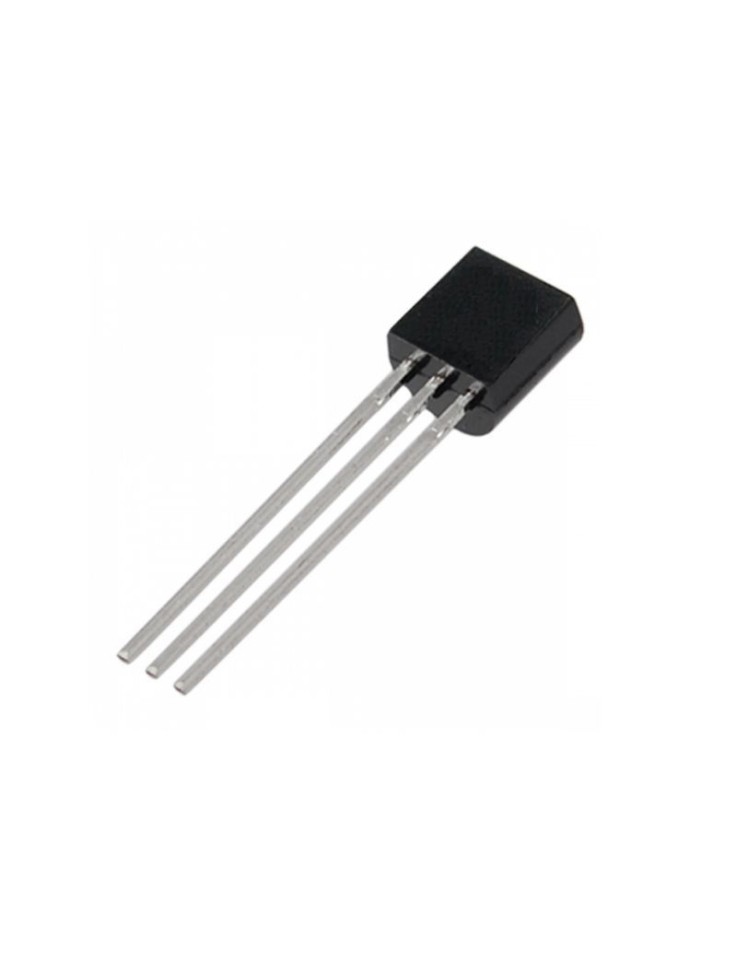

Transistor 2SC1390 NPN, TO-92

Transistor 2SC1390 NPN, TO-92

Transistors

Reference: TR2SC1390

Part.No: 2SC1390

€1.00

In Stock

Immediate Dispatch

The 2SC1390 is a reliable NPN Bipolar Junction Transistor (BJT) in a TO-92 package. Designed for small-signal amplification and low-power switching in amateur electronics, hobby projects and educational circuits.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

2SC1390 Small Signal NPN Transistor – Reliable Switching & Amplification

The 2SC1390 is a straightforward NPN transistor optimized for small-signal applications. Its low cost and robust performance make it an excellent choice for hobbyists and students building prototypes, signal processors, and simple switching circuits on breadboards.

Functions & Applications

TO-92 Through-Hole Package: Compact pin layout ideal for breadboarding and manual soldering.
Low-Signal Operation: Perfect for audio preamplifiers, sensor interfaces, and weak-signal detection.
Easy Biasing: Standard small-signal BJT, straightforward to design with basic resistor networks.
Cost-Effective: Budget-friendly part suitable for learning and prototyping.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	NPN
Package / Case	TO-92
Collector-Emitter Voltage (Vceo)	20V
Mounting Type	Through-Hole (THT)

Frequently Asked Questions

Q: Can the 2SC1390 be used on a breadboard?
A: Yes, its TO-92 through-hole package allows easy prototyping on breadboards and universal PCBs without any special mounting.

Q: What is a typical application for the 2SC1390?
A: It is commonly used in audio preamps, small relay drivers, sensor signal conditioning, and general-purpose switching circuits in amateur electronics.

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: NPN
Transistor Case Style: TO-92
