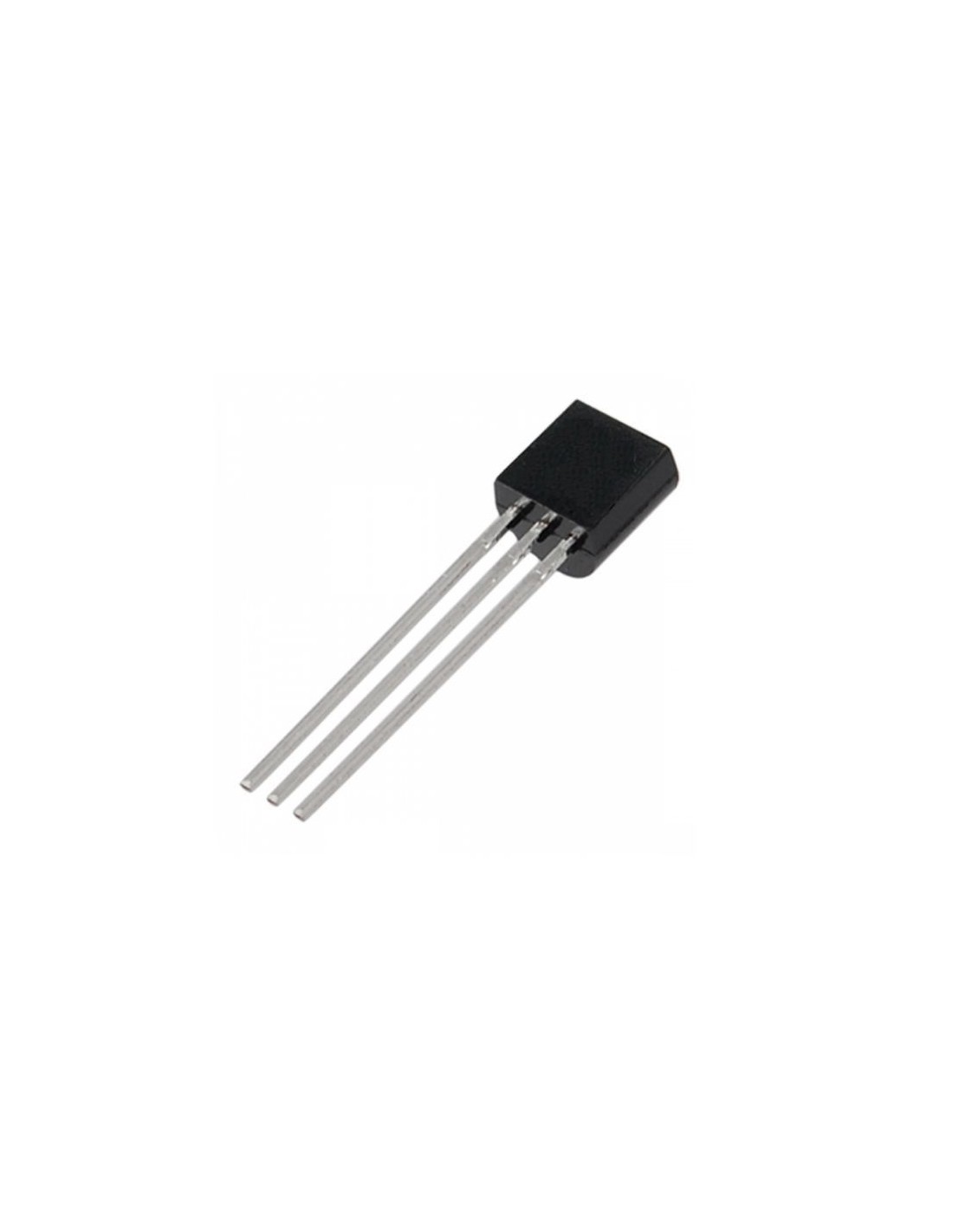

Transistor 2SC2383 NPN, 1A TO-92

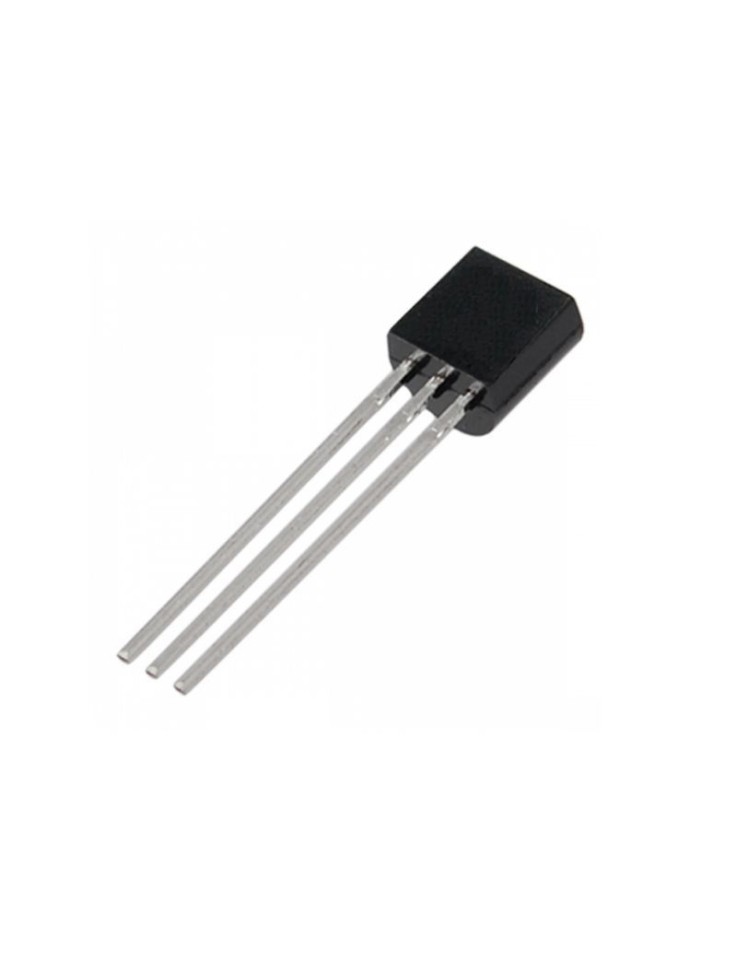

Transistor 2SC2383 NPN, 1A TO-92

Transistors

Reference: TR2SC2383

Part.No: 2SC2383

€1.20

In Stock

Immediate Dispatch

The 2SC2383 is a high-voltage NPN Bipolar Junction Transistor (BJT) in a TO-92 package. Designed for switching and amplification in control circuits and video applications requiring elevated collector-emitter voltage ratings.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

2SC2383 NPN Transistor – High-Voltage Switching & Control

The 2SC2383 is a robust NPN transistor rated for 160V collector-emitter voltage, making it well-suited for control circuits, relay drivers, and video signal processing where higher voltage compliance is essential. Its compact TO-92 package and 1A collector current capacity allow flexible integration into both discrete and integrated switching designs.

Functions & Applications

High Collector-Emitter Voltage: 160V rating enables control of higher-voltage loads.
Moderate Collector Current: 1A maximum current handles medium-power switching tasks.
Compact TO-92 Package: Through-hole design suitable for breadboards and PCB prototyping.
Video & Control Applications: Optimized for use in signal switching and relay drive circuits.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	NPN
Package / Case	TO-92
Collector-Emitter Voltage (Vceo)	160V
Max Collector Current (Ic)	1A
Mounting Type	Through-Hole (THT)

Frequently Asked Questions

Q: Can the 2SC2383 drive a 12V relay?
A: Yes, the 2SC2383 can reliably drive a 12V relay coil drawing up to 1A. Always include a flyback diode in parallel with the relay coil to protect against inductive voltage spikes.

Q: What is the complementary PNP transistor for the 2SC2383?
A: The complementary PNP part is the 2SA968, which shares similar voltage and current ratings for use in push-pull output stages.

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: NPN
Transistor Case Style: TO-92
