The L9110S Dual Motor Driver Board (MPN: L9110S) is an ultra-compact H-Bridge module designed to drive two DC motors or one bipolar stepper motor from any 5V microcontroller such as Arduino or Raspberry Pi. It replaces bulky L298N modules in space-constrained robotics and STEM builds.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

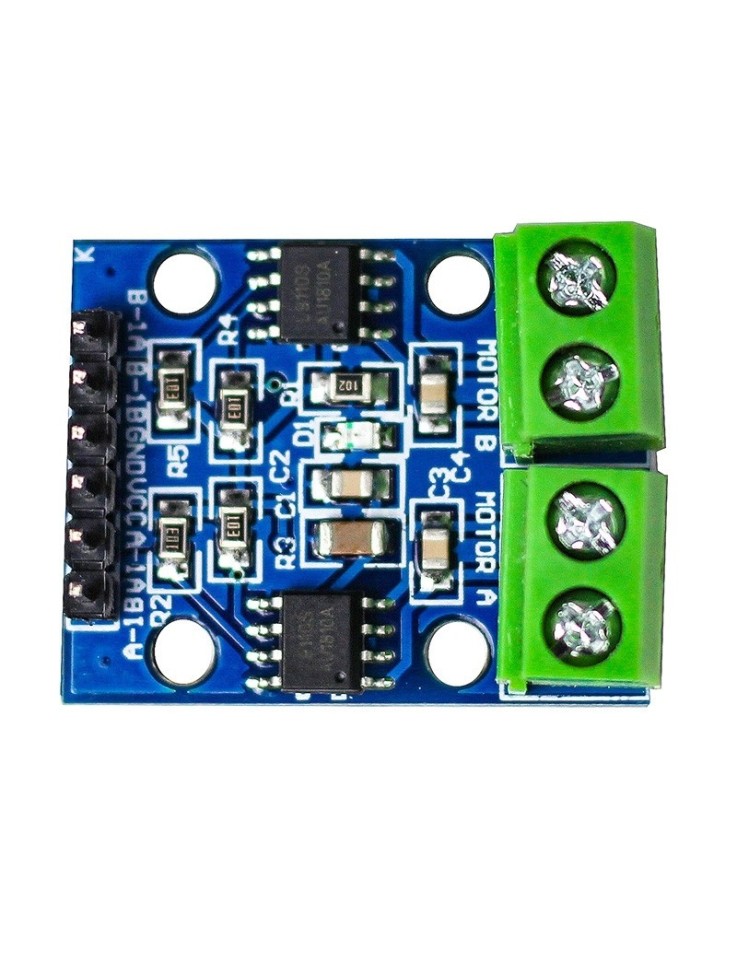

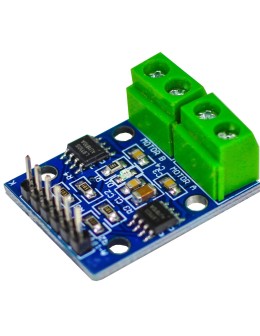

The L9110S Two Channel Motor Driver Board (MPN: L9110S) is a miniature dual H-Bridge motor driver module built around two integrated L9110 driver ICs. It enables low-power microcontrollers — including Arduino and Raspberry Pi — to safely control the direction and speed of two independent DC motors or one bipolar stepper motor, without exposing the MCU to the motors' higher current demands.

Key Features

Dual H-Bridge Architecture: Two independent L9110 ICs provide a full H-Bridge per motor channel, enabling forward and reverse direction control on both channels simultaneously.
PWM Speed Control: Applying a PWM signal to the control inputs allows smooth, variable-speed motor control — ideal for line-following robots and adjustable-speed drives.
Direction Control via Digital Logic: Each channel accepts HIGH/LOW logic signals to instantly switch motor direction without additional components.
Stepper Motor Support: The two channels can be combined to drive a single 4-wire bipolar stepper motor, making this module versatile for positioning applications.
No External Heatsink Required: The compact design dissipates heat efficiently under normal operating conditions, keeping your build clean and lightweight.
Ultra-Compact Footprint: Significantly smaller than L298N-based boards, making it the preferred choice for mini robotics, drones, and tight PCB layouts.

Pinout & Wiring

PIN	Symbol	Description
1	B-IA	Motor B Input A — direction/PWM control for Channel B
2	B-IB	Motor B Input B — direction/PWM control for Channel B
3	GND	Common Ground
4	VCC	Motor & Logic Supply Voltage
5	A-IA	Motor A Input A — direction/PWM control for Channel A
6	A-IB	Motor A Input B — direction/PWM control for Channel A
7	MOTOR-B1	Motor B Output terminal 1
8	MOTOR-B2	Motor B Output terminal 2
9	MOTOR-A1	Motor A Output terminal 1
10	MOTOR-A2	Motor A Output terminal 2

Wiring Note: Connect VCC and GND to your power supply, wire the four control inputs (A-IA, A-IB, B-IA, B-IB) directly to digital or PWM-capable GPIO pins on your microcontroller, and connect the motor terminals to your DC motors or stepper motor coils.

Compatibility

Arduino UNO / Nano / Mega: Fully compatible — control pins operate at 5V logic, matching Arduino GPIO output levels directly.
Raspberry Pi / ESP32 / ESP8266: Compatible via 3.3V logic signals; verify motor supply voltage suits your motors.
Any 5V or 3.3V Microcontroller: The L9110 ICs accept a wide logic input range, making the module broadly compatible across platforms.

Typical Applications

Mini Robotics & Line-Following Robots: The most popular use case — drive two DC gear motors independently for differential steering in compact robot chassis.
STEM & Educational Projects: A beginner-friendly module for students learning motor control with Arduino, providing a safe interface between MCU and motor power.
Bipolar Stepper Motor Control: Drive a single 4-wire stepper motor for precise positioning in small CNC, camera sliders, or scanner mechanisms.
RC Vehicles & Drones: Its ultra-low profile and weight make it suitable for weight-sensitive builds where an L298N would be too bulky.
Automated Blinds / Small Actuators: Control low-power linear actuators or gear motors in home automation prototypes.

Technical Specifications

Specification	Value
Driver IC	L9110 (×2)
Architecture	Dual H-Bridge
Motor Channels	2 × DC Motor or 1 × Bipolar Stepper
Control Interface	Digital Logic / PWM
MPN	L9110S

FAQ

Q: Can the L9110S replace an L298N in my project?
A: Yes, for small DC motors and light stepper applications. The L9110S is much smaller and requires no heatsink, but is intended for lower-power motors than the L298N.

Q: Can I control motor speed with PWM on Arduino?
A: Yes. Connect any PWM-capable Arduino pin (e.g., D3, D5, D6, D9, D10, D11 on UNO) to the control inputs and use analogWrite() to vary motor speed smoothly.

Package Contents: 1 × L9110S Two Channel Motor Driver Board

⚠ Note: Ensure your motor's current and voltage requirements are within the L9110 IC's rated limits before use. Exceeding these limits may permanently damage the module.
