Οθόνη Αφής 2.8 Ιντσών TFT Full-color Module

TFT025

New product

€17.50

Προειδοποίηση: Τελευταία κομμάτια σε απόθεμα! Επικοινωνήστε μαζί μας για επιβεβαίωση της διαθεσιμότητας

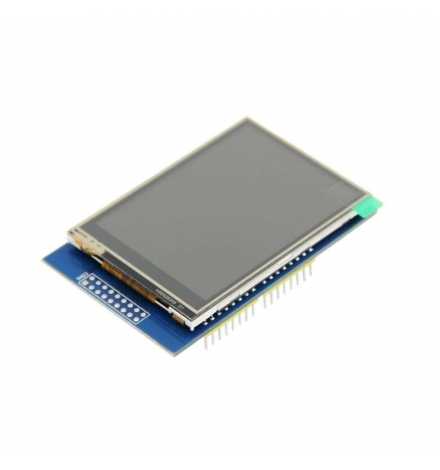

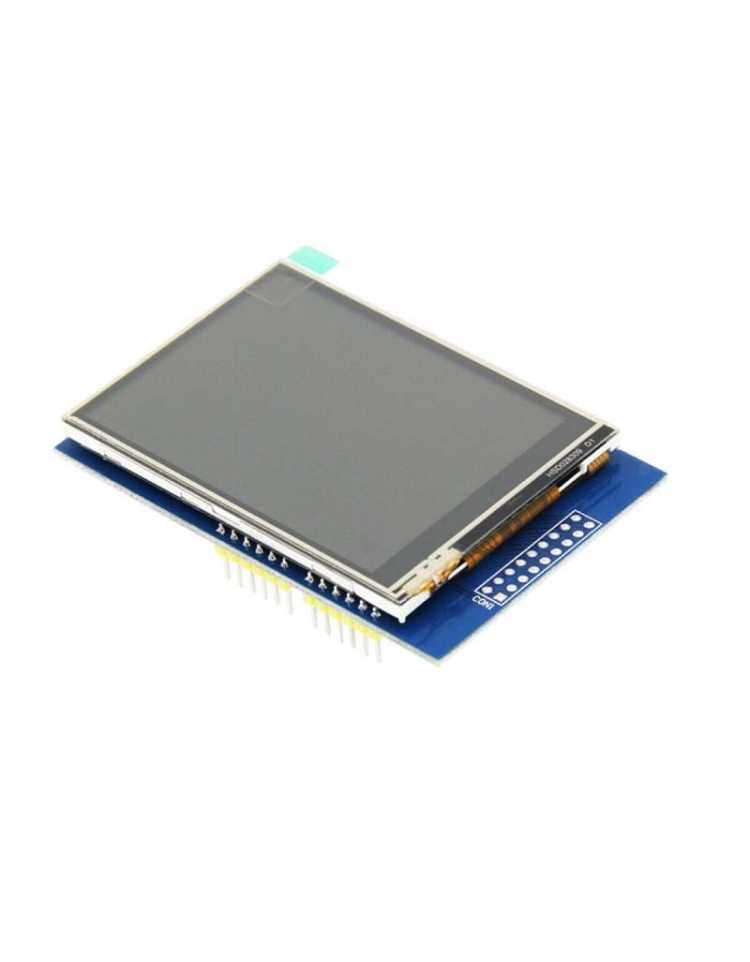

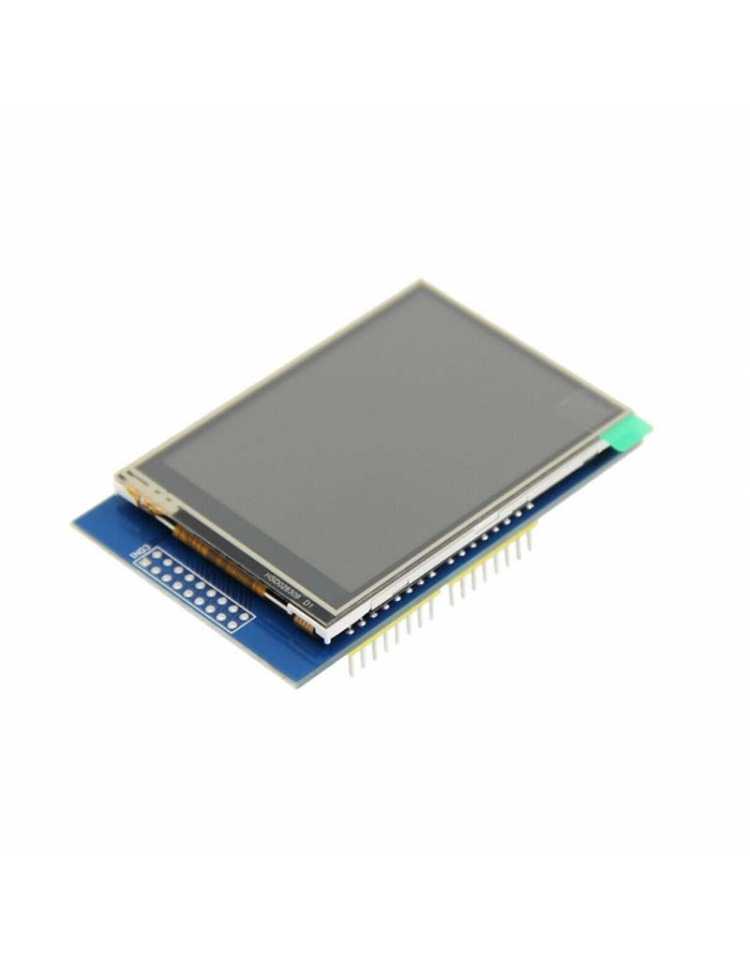

The 2.8 inch TFT LCD Touch Display is fully assembled, tested and ready to go. Add the touch display without wiring, no soldering! Simply plug it in and load up a library – you’ll have it running in under 10 minutes! Works best with any classic Arduino ATMEGA328 Board

So spice up your Arduino UNO project with a beautiful large touchscreen display shield with a built-in microSD card connection. This TFT display is big (2.8″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades)!

The Display comes with 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display.  As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

  • 2.8 inch LCD TFT display
  • Bright, 4 white-LED backlight
  • Colorful, 18-bit 262,000 different shades
  • 4-wire resistive touchscreen 240 x 320 pixels with individual pixel control
  • No wiring, no soldering.
  • Simply plug it in and load the library
  • On-board 3.3V 300mA LDO regulator
  • 5V compatible, use with 3.3V or 5V logic
  • Support 2GB micro SD TF card
  • Size: 7.8 x 5.3cm

ILI9341
