Prototyping Boards (Breadboards)
BRE201
€1.95
In Stock
Immediate Dispatch

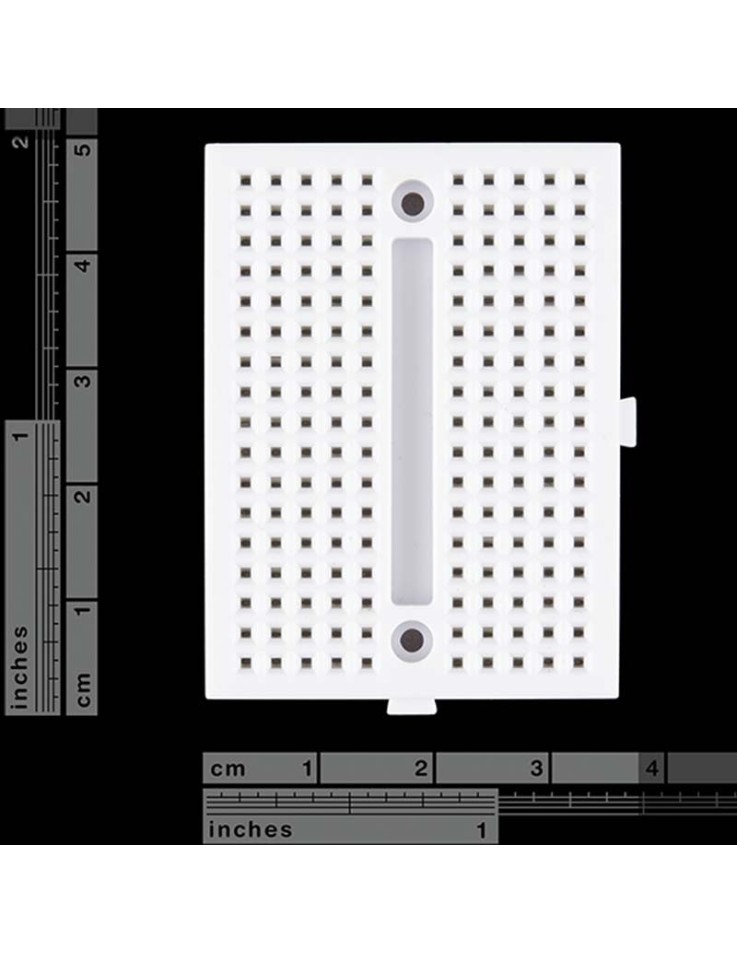

Mini Breadboard with 170 tie points – perfect for prototyping small circuits, DIP ICs, and jumper wire breakouts without soldering. Compact 47×36.5mm size with peel-and-stick adhesive backing.



The Mini Breadboard (170 Tie Points, White) is a compact, solderless prototyping board designed for building and testing small electronic circuits quickly and easily. With 170 tie points arranged in a standard 0.1" (2.54 mm) pitch grid, it gives you just enough space to prototype simple circuits, break out DIP package ICs to jumper wires, or expand a larger breadboard setup. The peel-and-stick adhesive backing lets you mount it securely on any flat surface, keeping your workspace tidy.

Key Features

  • 170 Tie Points: Sufficient room for simple circuits and DIP IC breakouts → ideal for beginners and compact builds
  • Solderless Design: Components and wires plug directly into the spring-loaded contacts → fast, reusable, no soldering required
  • Standard 0.1" (2.54 mm) Pitch: Compatible with all standard through-hole components, DIP ICs, and jumper wires → works with your existing component library
  • Spring-Loaded Contacts: Internal metal springs ensure reliable electrical contact → stable connections during testing
  • Peel-and-Stick Adhesive Backing: Mount the breadboard on any flat surface → keeps your project tidy and portable
  • Lettered & Numbered Grid: Rows and columns are clearly labelled → easy circuit navigation and documentation
  • Compact Dimensions (47×36.5×10 mm): Fits in tight spaces or alongside other modules → perfect for portable and embedded projects

Typical Applications

  • Prototyping small Arduino, ESP32, or Raspberry Pi Pico circuits without permanent soldering
  • Breaking out DIP package ICs (sensors, op-amps, logic gates) to jumper wires for easy testing
  • Educational electronics experiments in the classroom or at home
  • Expanding an existing full-size breadboard with an extra tie-point section
  • Building compact proof-of-concept circuits for maker projects and hackathons

Technical Specifications

SpecificationValue
Tie Points170
Pin Pitch0.1" (2.54 mm)
Dimensions47 × 36.5 × 10 mm
ColorWhite
MountingPeel-and-stick adhesive backing

FAQ

Q: Can I connect this mini breadboard to a full-size breadboard?
A: Yes. Because it uses the standard 2.54 mm pitch, it aligns perfectly with full-size breadboards and can be placed side-by-side or connected via jumper wires.

Q: What wire gauge fits the tie points?
A: Standard solid-core 22–26 AWG wire and regular jumper wire leads fit the spring-loaded contacts without damaging them.

Package Contents: 1 × Mini Breadboard 170 Tie Points (White)
Note: Jumper wires, components, and microcontroller boards shown in images are not included and are for illustration purposes only.
