Prototyping Boards (Breadboards)
BRE172
Part.No: MB-102
€6.95
Out of Stock

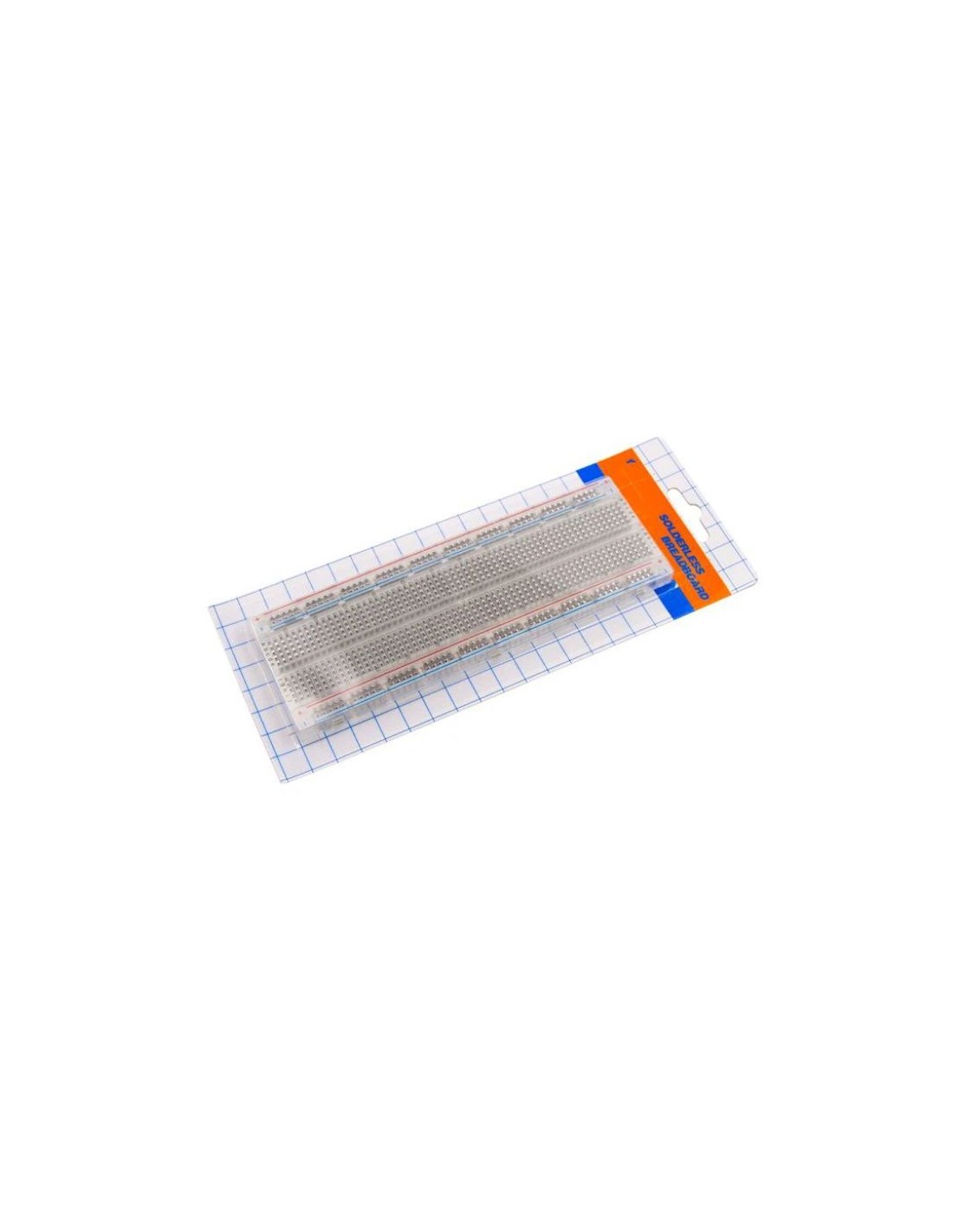

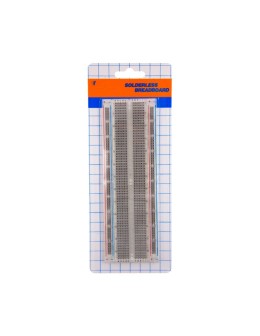

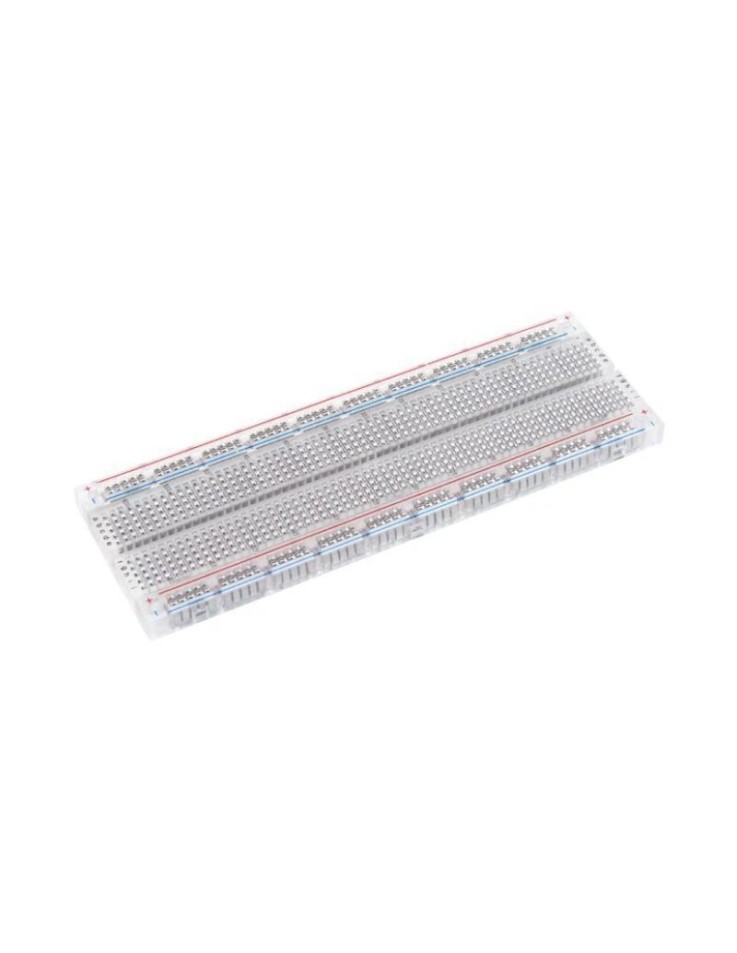

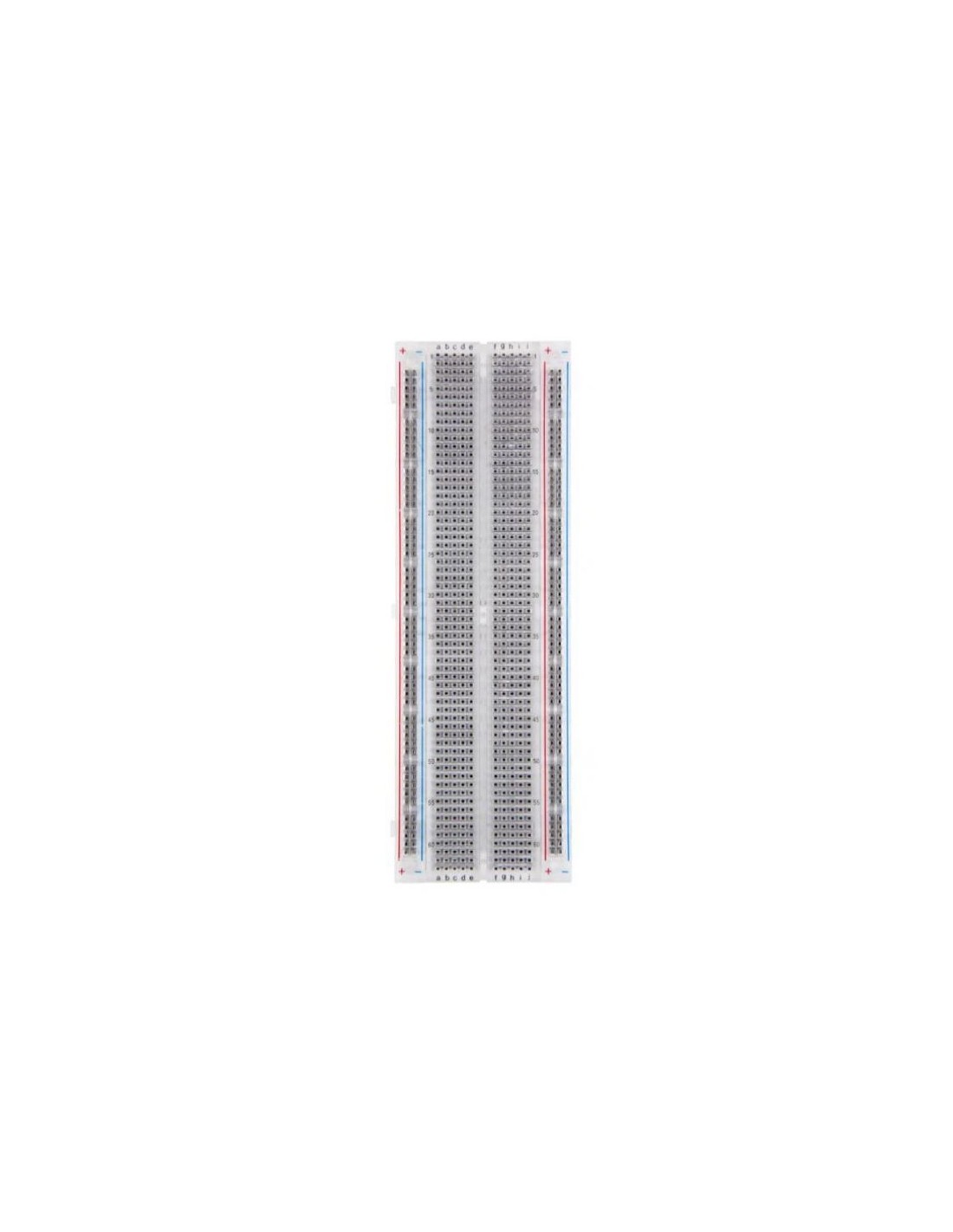

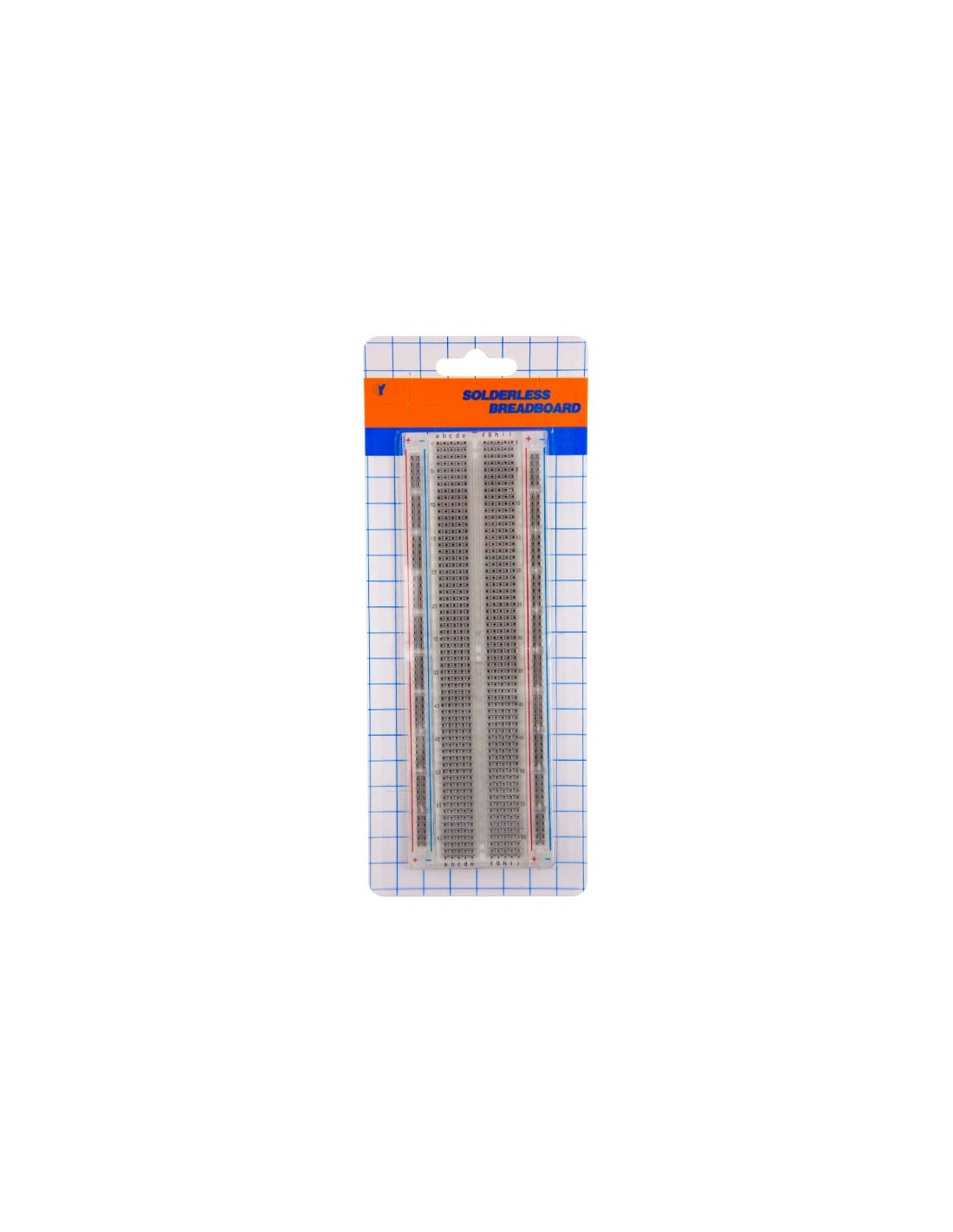

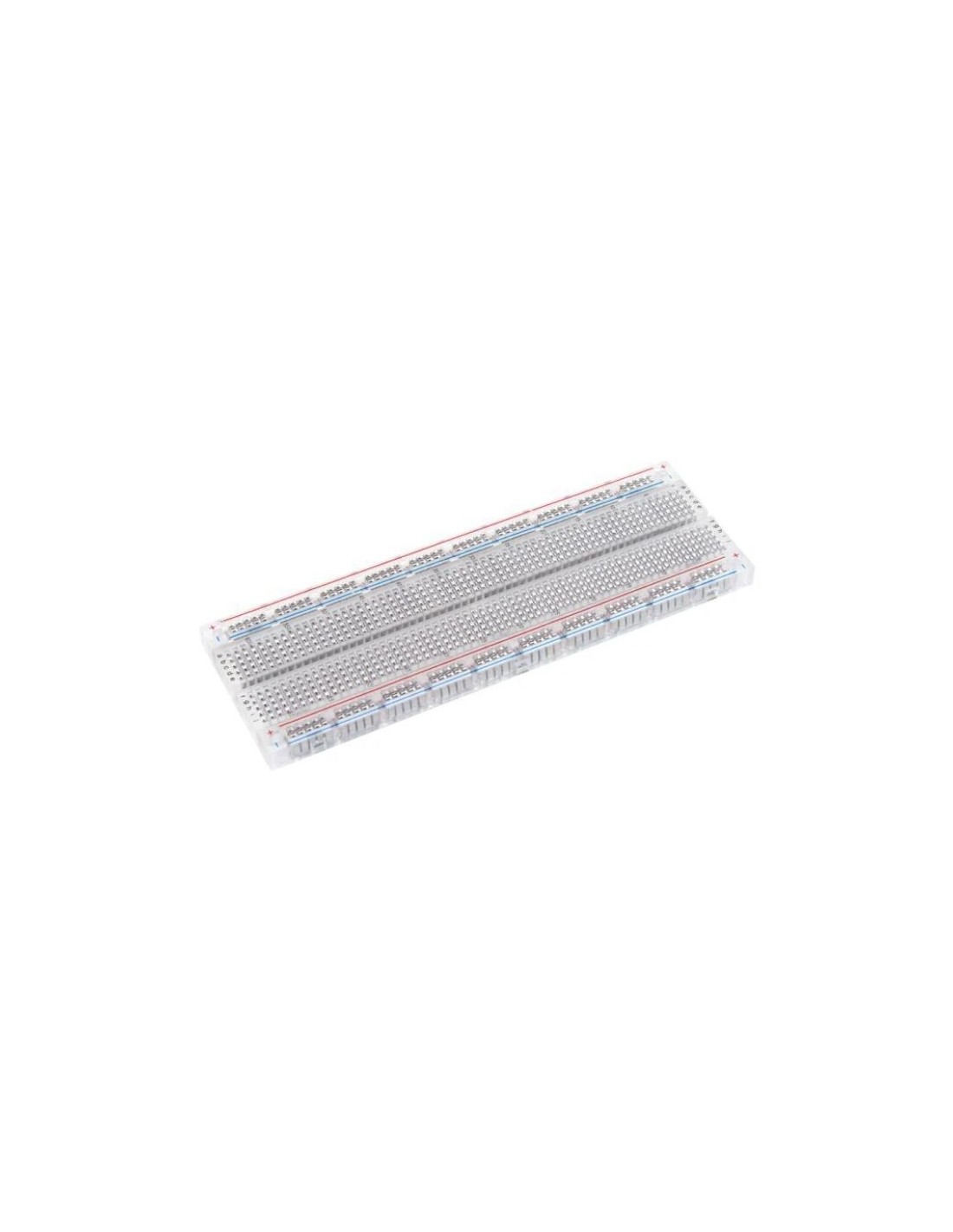

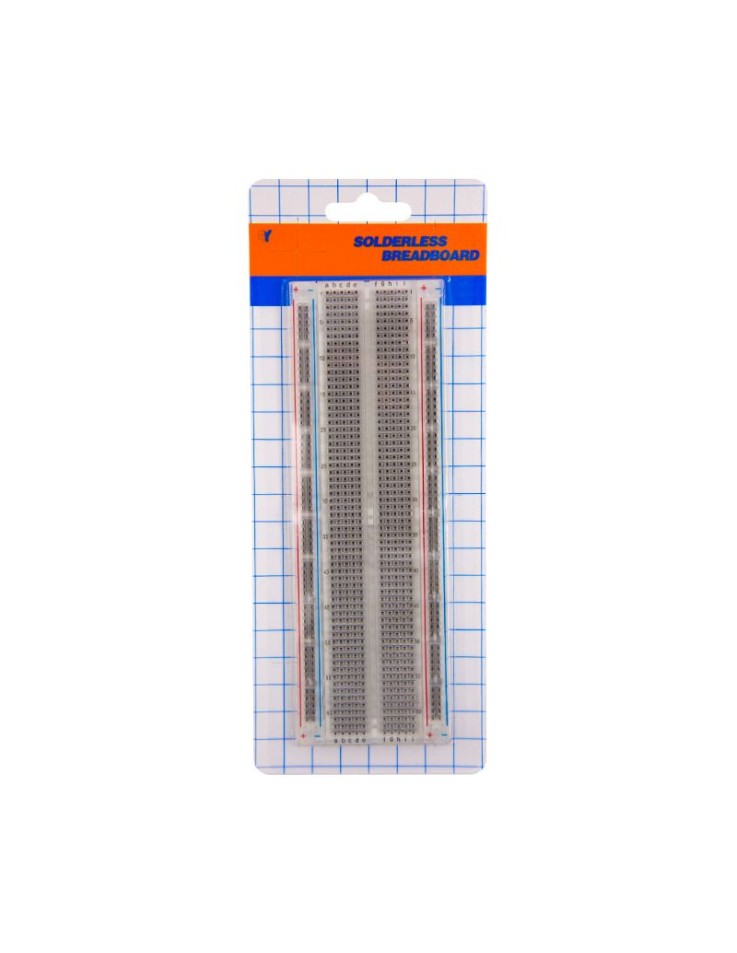

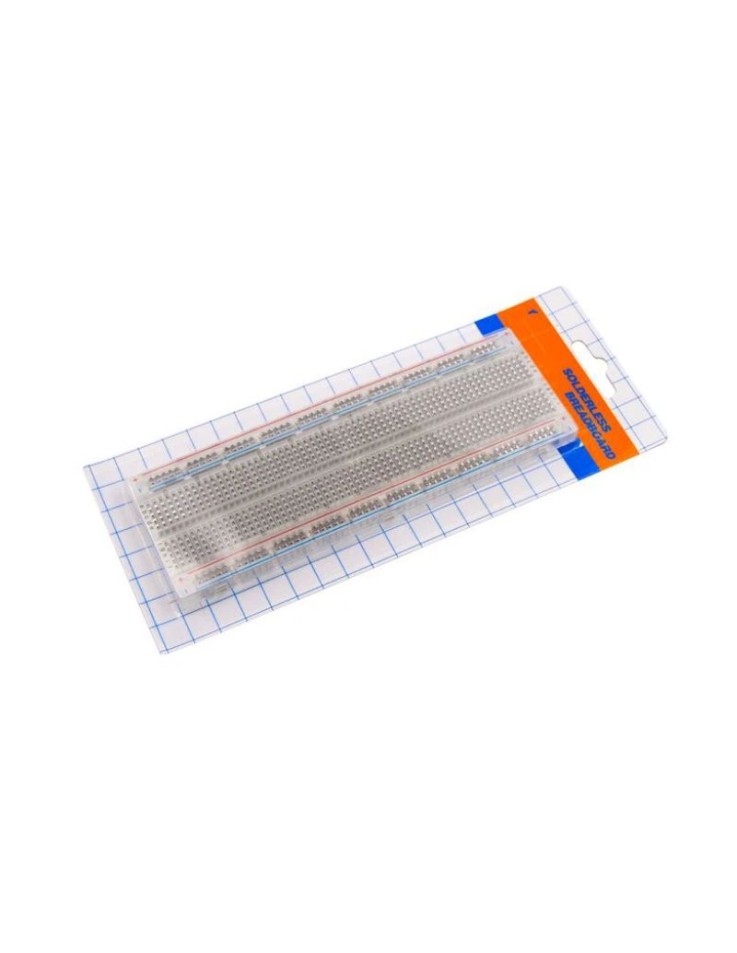

MB-102 Full-Size Transparent Breadboard with 830 tie points for solderless prototyping. Compatible with 20-29 AWG wire and featuring spring-clip contacts rated for 5,000+ insertions. Size: 16.5 × 5.4 × 0.9 cm.



The MB-102 Full-Size Transparent Breadboard is the go-to solderless prototyping platform for makers, students, and engineers working with Arduino, ESP32, or any through-hole components. With 830 tie points and a classic 2.54 mm pitch, it lets you build, test, and modify circuits in minutes — no soldering iron required. The transparent body makes it easy to visually trace connections and spot wiring mistakes at a glance.

Key Features

  • 830 Tie Points: Ample space for complex circuits, ICs, and multiple components simultaneously → fewer rewiring interruptions
  • Spring-Clip Contacts (5,000+ cycles): Specially designed spring clips maintain reliable electrical contact through thousands of insertions → long-term durability for repeated prototyping
  • 20–29 AWG Wire Compatibility (0.3–0.8 mm): Works with standard jumper wires and component leads → universal compatibility
  • 2.54 mm (0.1") Standard Pitch: Industry-standard hole spacing means DIP ICs, modules, and headers fit perfectly → no adapters needed
  • Transparent Body: See-through polycarbonate shell lets you observe the internal bus layout → easier debugging and teaching

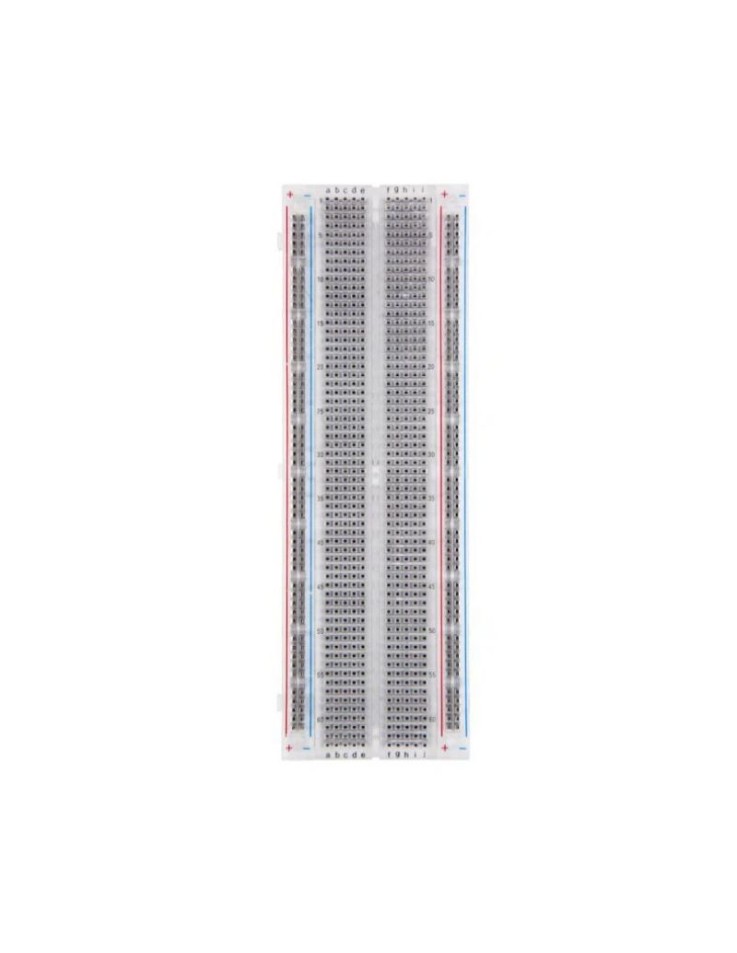

  • Labelled Rows & Columns: Alphanumeric grid (letters + numbers) for quick reference when following schematics → faster circuit assembly
  • Ideal for High-Frequency & Low-Noise Circuits: Nickel-plated spring clips minimise contact resistance → cleaner signal integrity

Compatibility

  • Arduino UNO / Nano / Mega: 5 V logic — plug directly into breadboard power rails alongside the Arduino
  • ESP32 / ESP8266 / Raspberry Pi Pico: 3.3 V logic — works seamlessly; use appropriate power supply
  • Raspberry Pi (GPIO breakout): Combine with a 40-pin ribbon cable adapter for rapid GPIO prototyping
  • Any Through-Hole Component: DIP ICs, resistors, capacitors, LEDs, sensors — all fit the 2.54 mm pitch

Typical Applications

  • Arduino/ESP32 project prototyping: Quickly wire up sensors, displays, and motor drivers before committing to a PCB
  • Electronics education: University and high-school labs use full-size breadboards for hands-on circuit theory lessons
  • RF & audio experiments: Low-noise spring contacts make it suitable for testing high-frequency or audio-sensitive circuits
  • Component testing: Verify that a new IC, module, or sensor works correctly before soldering
  • Embedded systems development: Prototype firmware alongside hardware without a custom PCB

Technical Specifications

SpecificationValue
Tie Points830
Wire Gauge20–29 AWG (0.3–0.8 mm)
Hole Pitch2.54 mm (0.1")
Spring-Clip Rated Cycles> 5,000 insertions
Dimensions16.5 × 5.4 × 0.9 cm
ColorTransparent
MPNMB-102

FAQ

Q: Can I connect two MB-102 breadboards together?
A: Yes — most MB-102 boards feature interlocking side clips that let you snap multiple units side by side to expand your workspace.

Q: What wire size should I use with the MB-102?
A: Use 20–29 AWG (0.3–0.8 mm diameter) solid-core or jumper wires for the best contact. Stranded wire may not insert cleanly without a ferrule.

Package Contents: 1 × MB-102 Full-Size Transparent Breadboard

⚠ Note: Jumper wires, components, and power supply are not included. This breadboard is designed for low-voltage prototyping use only.
