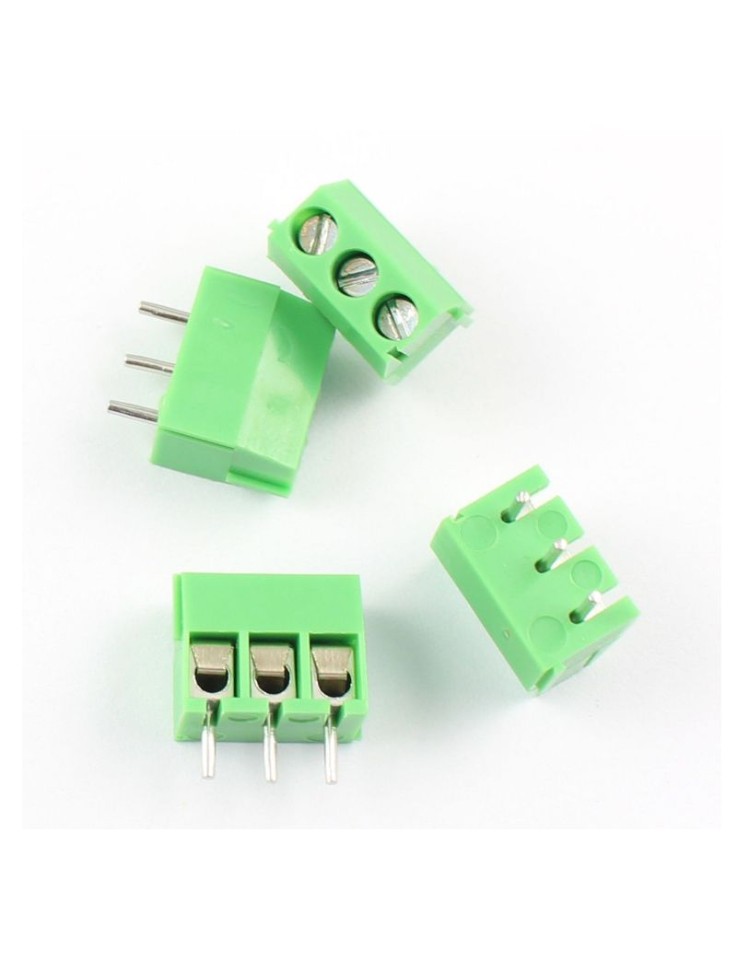

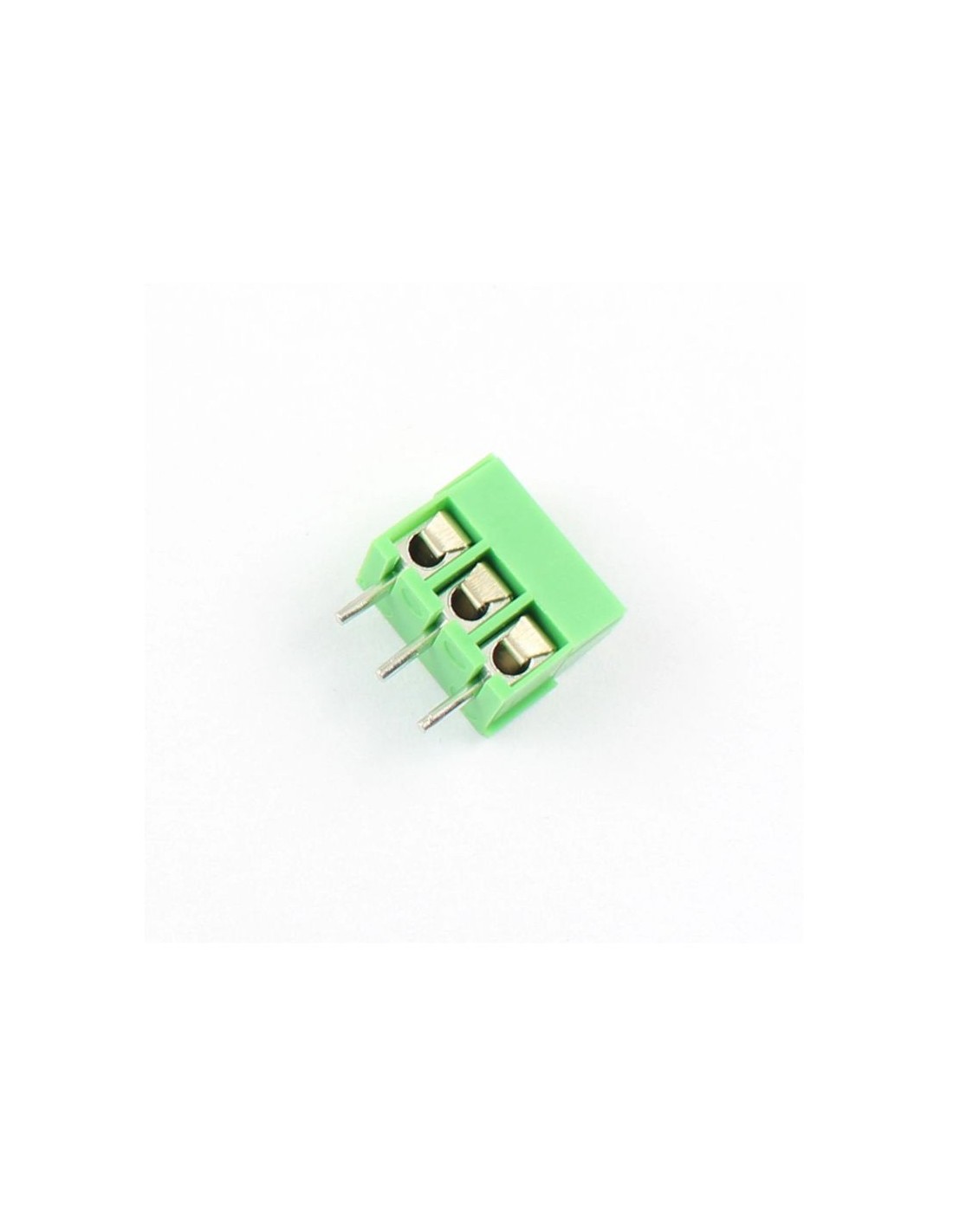

PCB Terminal Block 3 way 3.5mm
PCB Terminal Block 3 way 3.5mm
PCB Terminal Block 3 way 3.5mm
PCB Terminal Block 3 way 3.5mm

PCB Terminal Block 3 way 3.5mm

PCB Equipment
CON180
Part.No: AC064
€0.50
In Stock
Immediate Dispatch



These PCB Terminal Blocks are ideal for secure and reliable connections in various electronic applications. Featuring 3 pins and a 3.5mm pitch, they offer a compact solution for connecting wires to printed circuit boards (PCBs). The green color facilitates visual identification.

Features:

  • Pitch: 3.5mm

  • Poles: 3 Pin

  • Color: Green

Electrical:

  • Rated Voltage: 300V

  • Rated Current: 10A

  • Withstanding Voltage: AC 1250V/1Min

  • Wire Range: 24-18 AWG

Mechanical:

  • Temperature Range: -40℃ ~ +105℃

  • MAX Soldering: +250℃ for 5 seconds

  • Torque: 0.2Nm (1.7 lb.in)

  • Withstand Length (Strip Length): 5-6mm

Material:

  • Housing: PA66, UL94 V-0

  • Screw: M2.5 Steel, Zinc plated

  • Wire guard: Phosphor bronze, Ni plated or stainless steel

  • Pin header: Brass, Tin plated
