PCB Equipment
PCB495
€5.95
In Stock
Immediate Dispatch

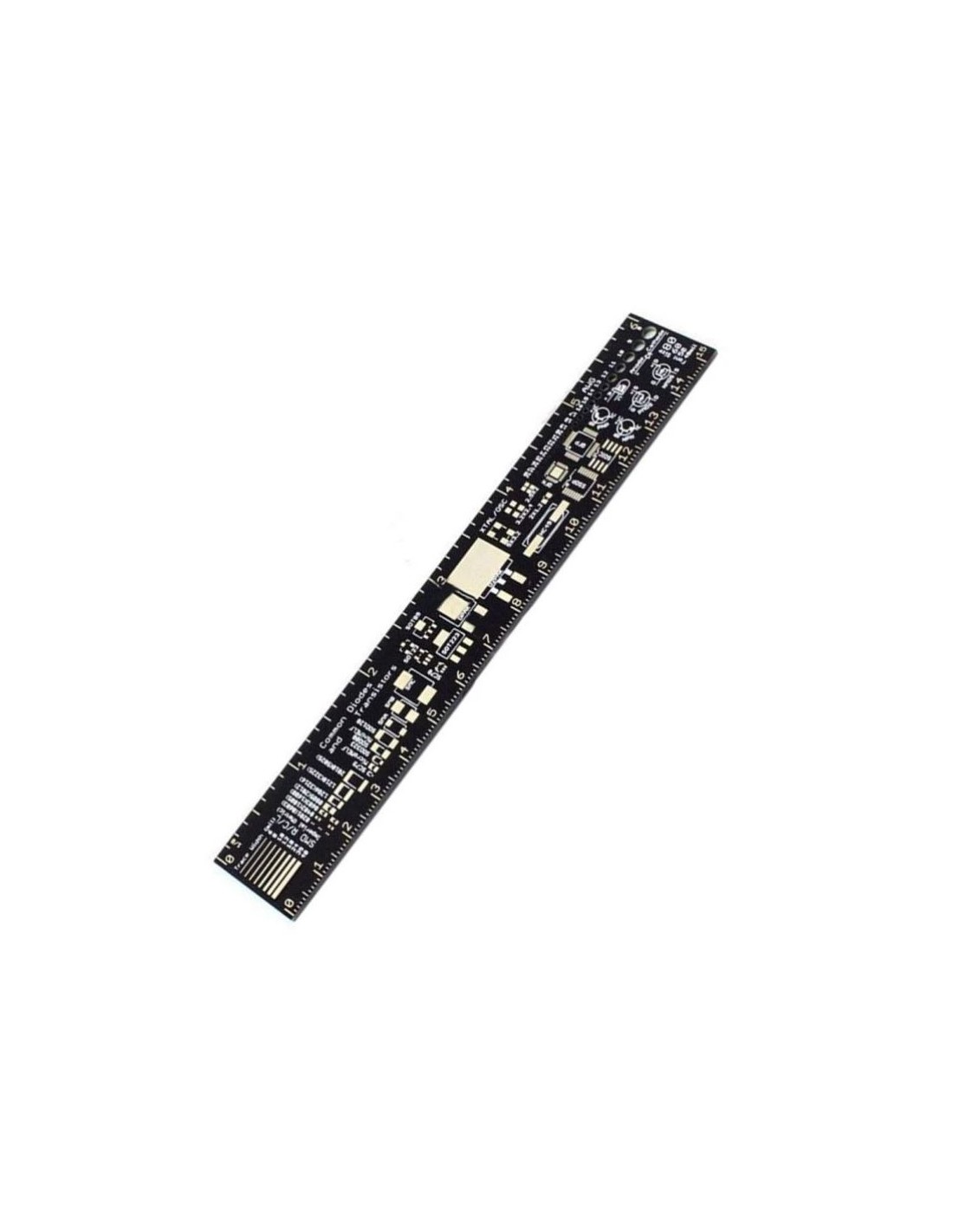

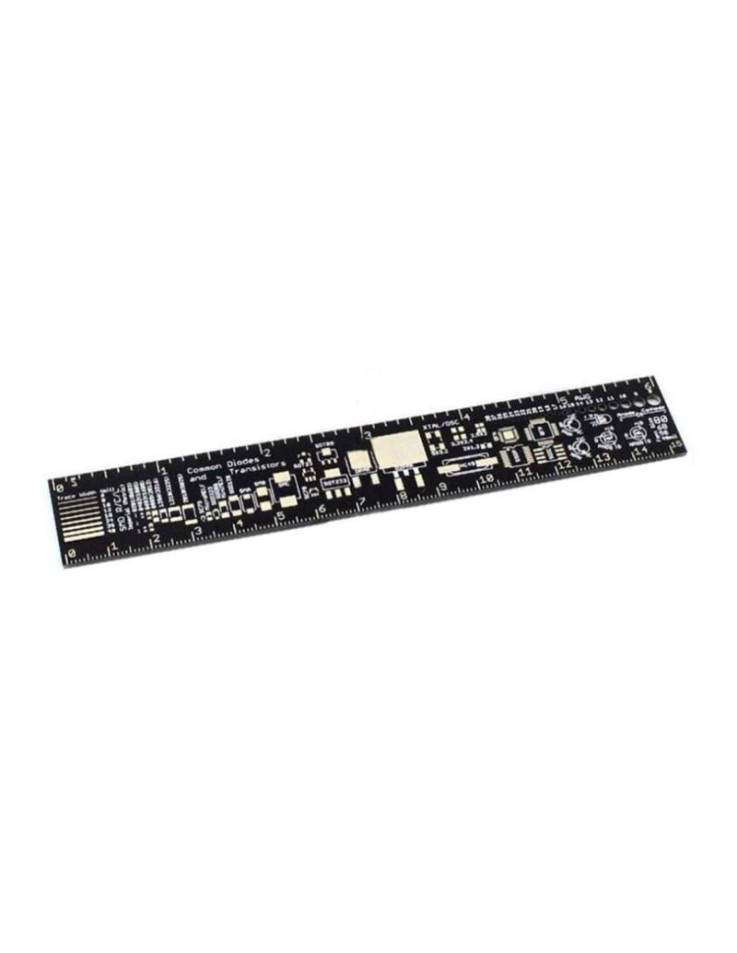

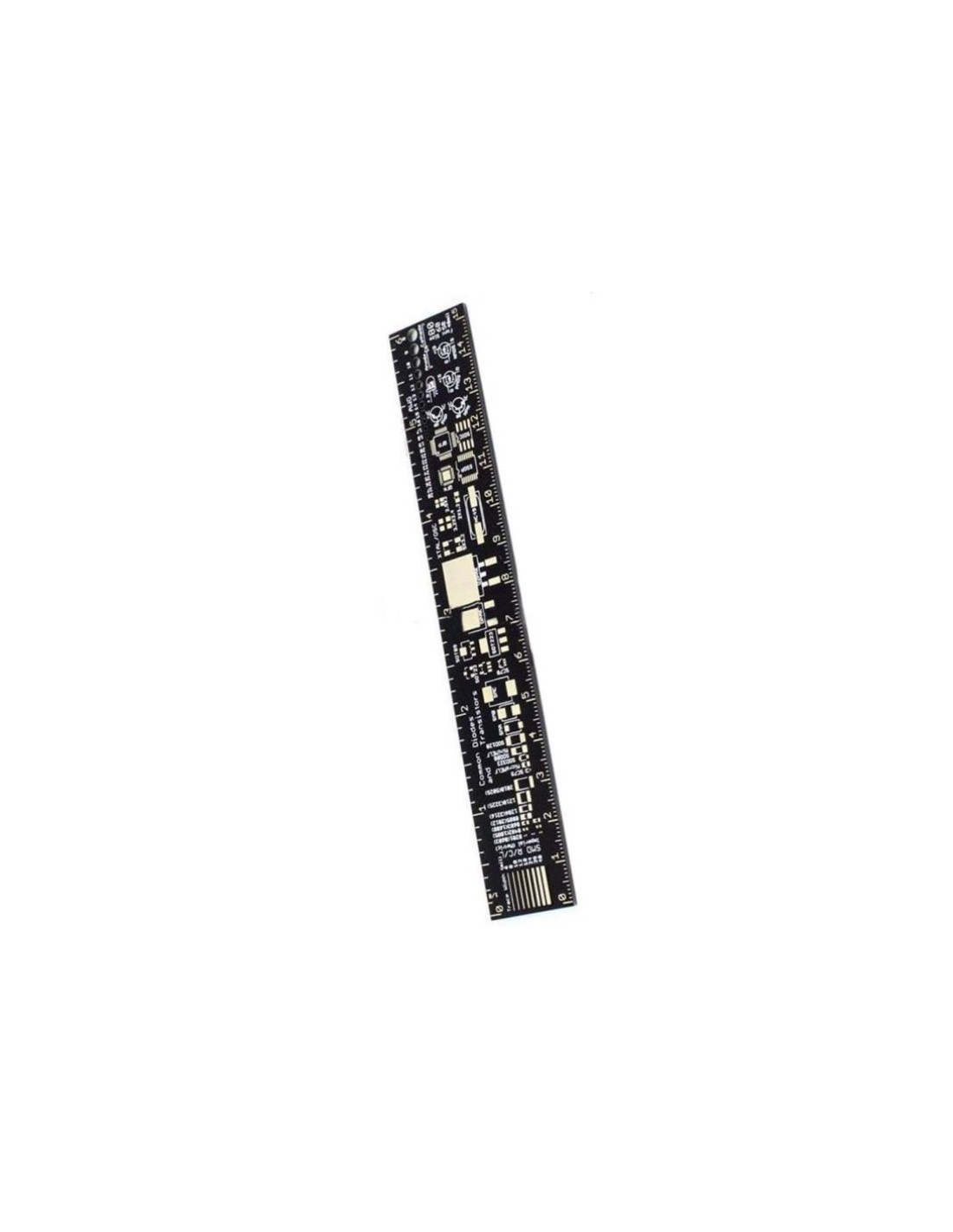

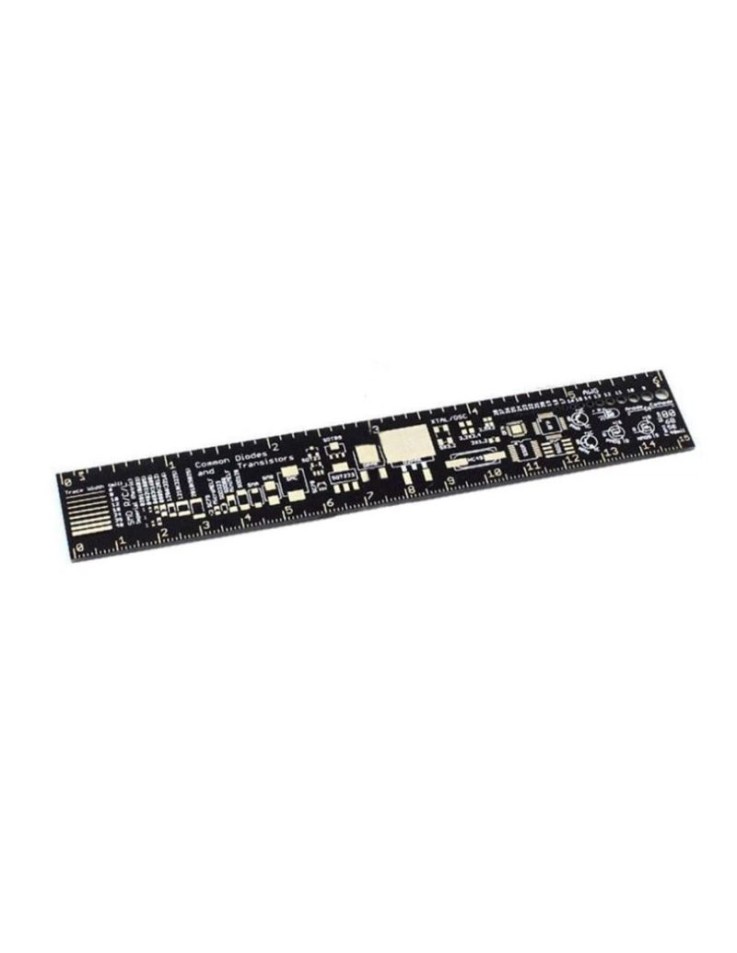

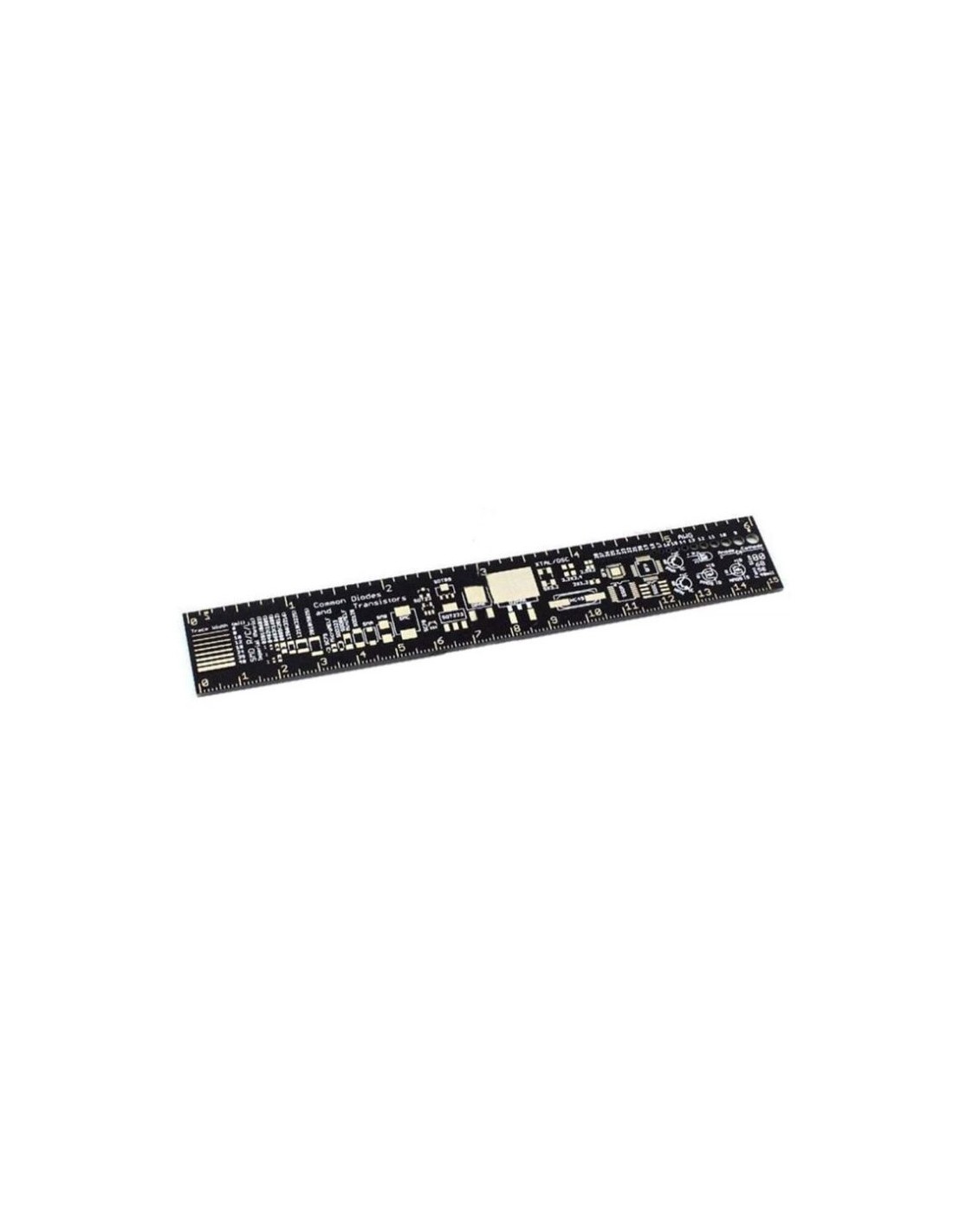

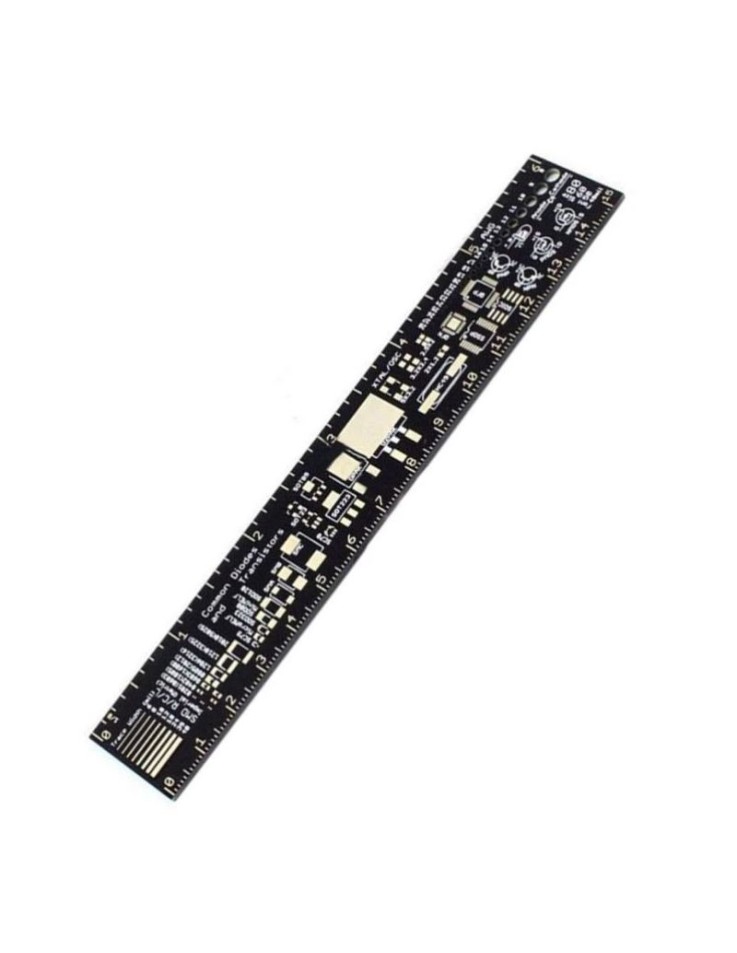

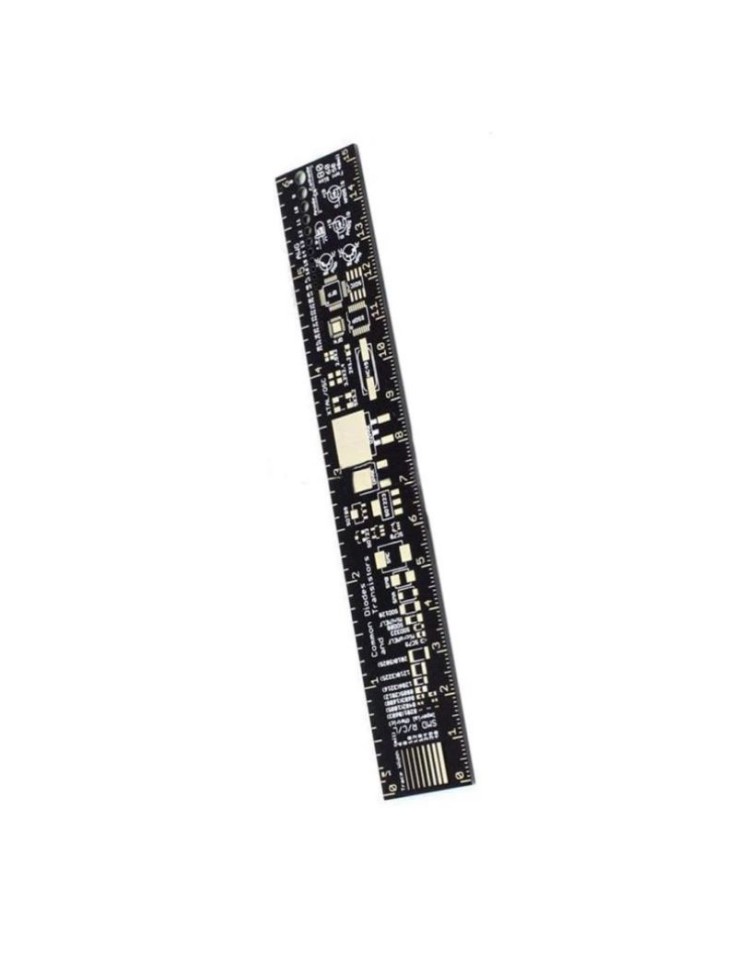

The PCB Ruler is more than just a ruler—it's an essential, pocket-sized multitool designed specifically for electronics engineers, students, and hobbyists. This innovative ruler, made from Printed Circuit Board (PCB) material, combines accurate measurements with valuable component references.

Featuring a length of 15cm (6 inches), this ruler includes metric and imperial measuring scales, along with a wealth of practical information:

  • Component Footprints: Displays common SMD (Surface-Mount Device) footprint sizes (e.g., 0402, 0603, 0805, 1206) for resistors and capacitors.
  • IC Packages: References for common Integrated Circuit packages (e.g., SOIC, QFP).
  • Diagrams: Includes diagrams for common diodes and transistors (e.g., SOT23).
  • Trace Width Guide: Provides a reference for standard copper trace widths on a PCB.
  • Conversions: Includes useful conversions (e.g., inches/cm, AWG wire sizes).

Technical Specifications

  • Material: FR-4 PCB (Printed Circuit Board Material)
  • Length/Scale: 15 cm (metric scale) and 6 inches (imperial scale)
  • Color: Black with White/Gold markings (batch dependent)
  • Thickness: Typical PCB thickness (approx. 1.6mm)
  • Features: Common SMD footprints, IC sizes, trace widths, conversion tables.
  • Ideal for: PCB design, prototyping, educational projects, and electronics workshops.

Get the PCB Ruler and have all the essential component and measurement references right on your workbench, always within reach!
