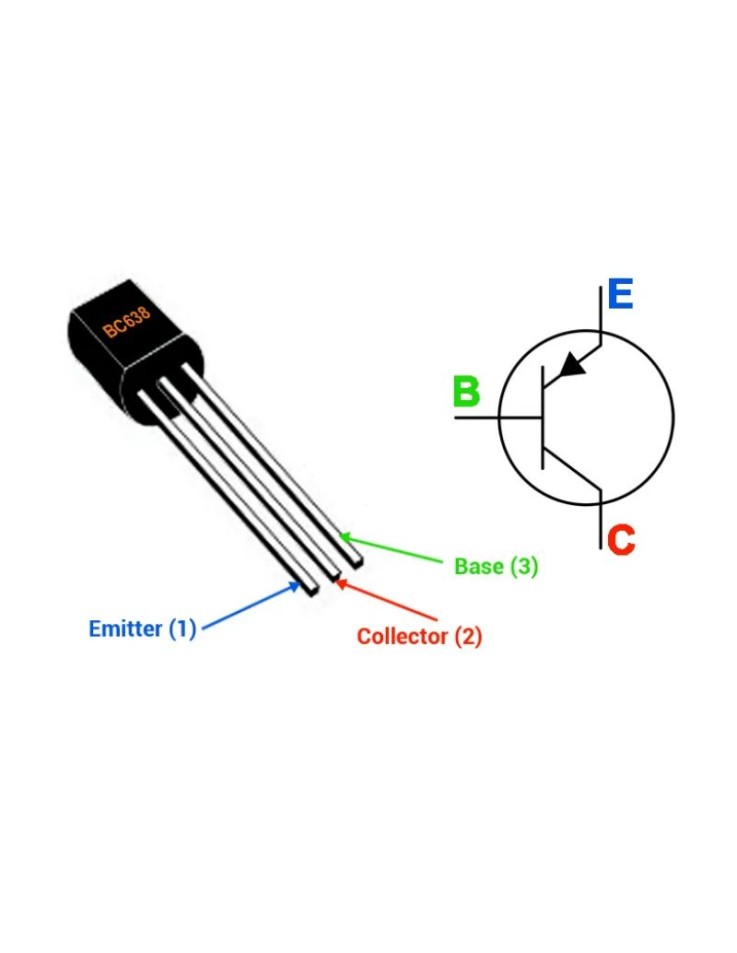

Transistor BC638 PNP, 1A TO-92

Transistor BC638 PNP, 1A TO-92

Transistor BC638 PNP, 1A TO-92

Transistor BC638 PNP, 1A TO-92

Transistor BC638 PNP, 1A TO-92

Transistors

Reference: TRBC638

Part.No: BC638

€0.60

In Stock

Immediate Dispatch

The BC638 is a PNP Bipolar Junction Transistor (BJT) in a TO-92 package, rated for -60V and 1A continuous collector current. Suited for moderately high voltage switching and driving loads such as relays and motors.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

BC638 PNP Transistor - 60V, 1A Switching in TO-92

The BC638 is a PNP bipolar transistor in a TO-92 package, capable of switching up to -60V and 1A of continuous collector current, making it a good fit for moderately high voltage switching circuits where a compact through-hole PNP device is needed.

Functions & Applications

Higher Voltage Rating: -60V Vce allows use in circuits beyond the range of standard small-signal PNP transistors.
1A Collector Current: Enough headroom to drive small motors, relays and higher-current loads directly.
Compact TO-92 Package: Through-hole design, easy to solder and prototype with on breadboards.
100 MHz Transition Frequency: Fast enough for general-purpose switching and low-frequency amplification tasks.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	PNP
Package / Case	TO-92
Collector-Emitter Voltage (Vce)	-60V
Max Collector Current (Ic)	-1A
Power Dissipation (Pd)	1W
DC Current Gain (hFE)	160 max
Transition Frequency (fT)	100MHz
Mounting Type	Through-Hole (THT)

Frequently Asked Questions

Q: What is the complementary NPN transistor for the BC638?
A: The complementary NPN part is the BC637, sharing similar voltage and current ratings.

Q: Can the BC638 directly drive a small 12V relay or motor?
A: Yes, as long as the load current stays below 1A (Ic) and a flyback diode is used for inductive loads like relay coils or motors.

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: PNP
Transistor Case Style: TO-92
