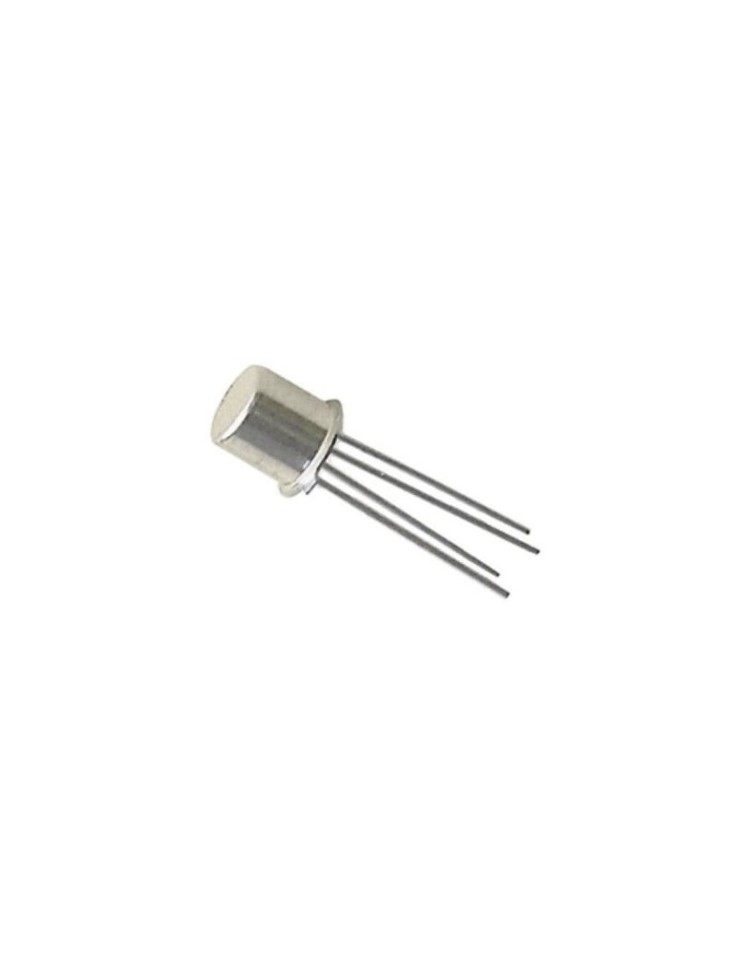

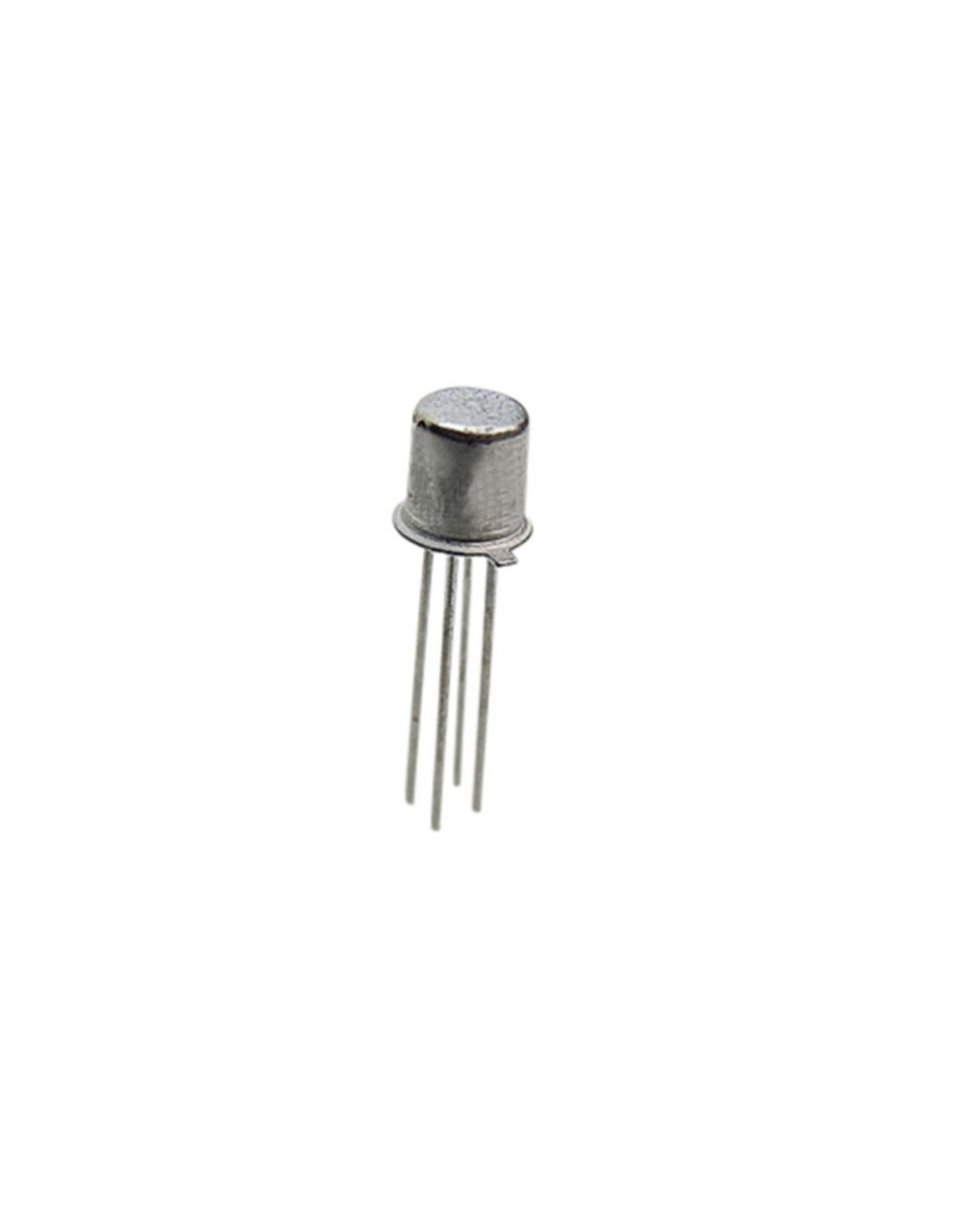

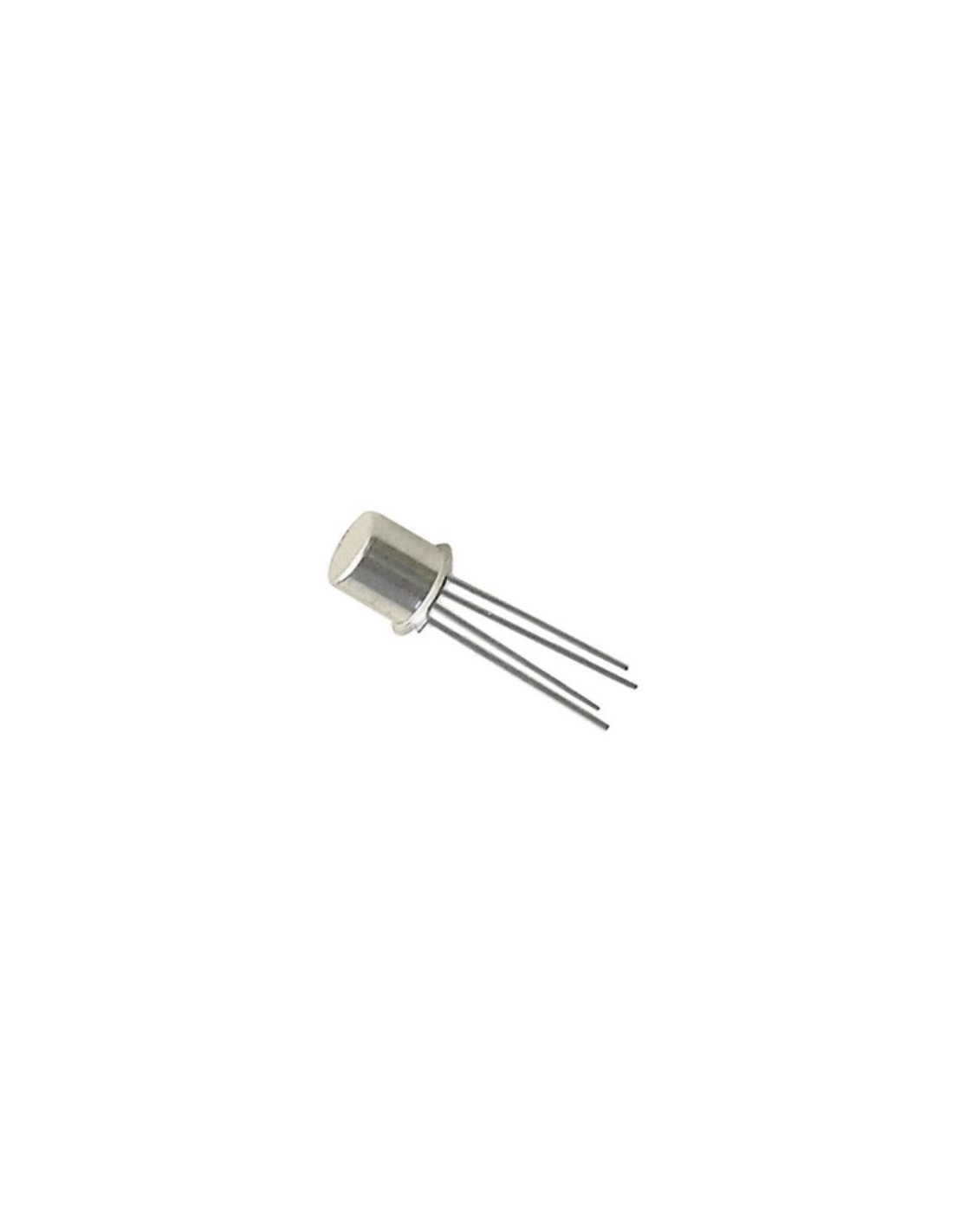

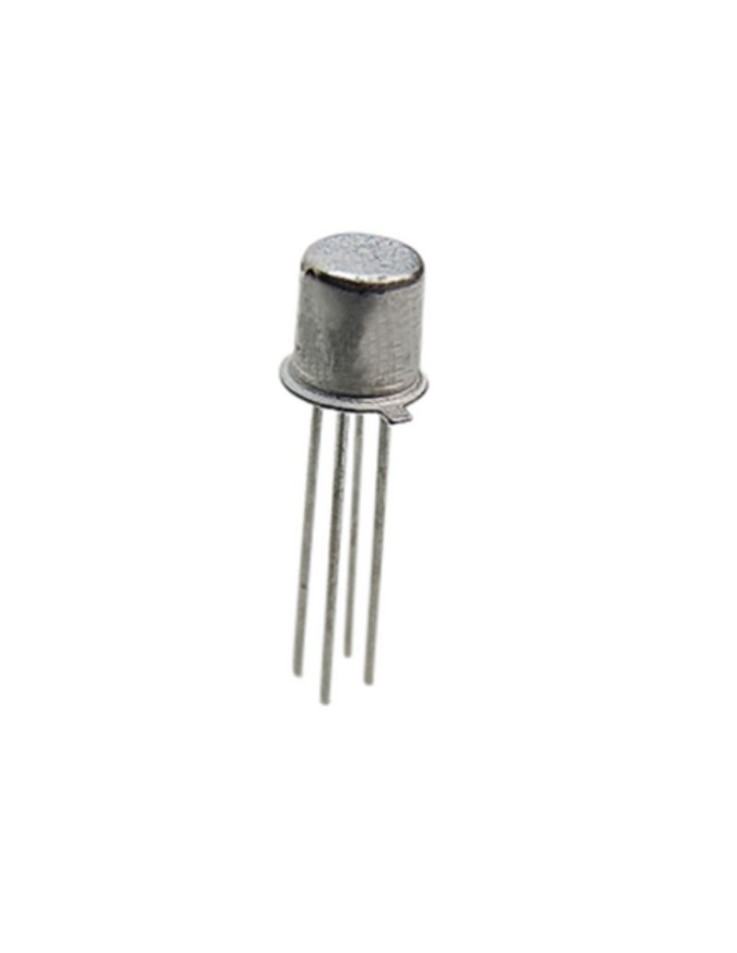

Transistor AF139 PNP, Germanium UHF TO-72

Transistor AF139 PNP, Germanium UHF TO-72

Transistor AF139 PNP, Germanium UHF TO-72

Transistor AF139 PNP, Germanium UHF TO-72

Transistor AF139 PNP, Germanium UHF TO-72

Transistors

Reference: TRAF139

Part.No: AF139

€1.20

In Stock

Immediate Dispatch

The AF139 is a vintage PNP germanium transistor in a shielded TO-72 package, purpose-built for UHF amplification in RF and television tuner circuits. A legendary part from the golden age of analog TV, prized by vintage electronics restorers and RF enthusiasts.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

AF139 Vintage Germanium Transistor – Classic UHF RF Amplifier for Tube TV Restoration

The AF139 is a legendary PNP germanium transistor engineered for high-frequency amplification in UHF tuner stages of 1960s–70s televisions. Its shielded four-lead package and carefully balanced internal geometry made it the industry standard for low-noise, stable RF amplification at frequencies approaching 1 GHz—the practical limit of germanium BJTs.

Functions & Applications

Shielded Four-Lead Package: Built-in grounding shield eliminates unwanted oscillations and feedback at UHF frequencies.
Germanium Chemistry: Naturally lower noise figure and softer gain roll-off than early silicon equivalents; prized by vintage RF purists.
UHF-Optimized Design: Engineered for stability and linearity in antenna amplifiers and TV tuner frontends.
Vintage Authenticity: Original stock, essential for period-correct restoration of 1960s–70s television receivers.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	PNP
Package / Case	TO-72
Collector-Emitter Voltage (Vceo)	25V
Max Collector Current (Ic)	50mA
Transition Frequency (fT)	~600MHz
Mounting Type	Through-Hole (THT), Shielded

Frequently Asked Questions

Q: What can replace an AF139 in a vintage TV tuner?
A: The AF139 has limited drop-in replacements due to its optimized UHF characteristics. Later silicon UHF transistors (e.g., BFR93, 2N4957) can work but may require tuning adjustments. For authentic restoration, original AF139 stock is strongly preferred.

Q: Is the AF139 ESD-sensitive or fragile?
A: Germanium transistors are generally robust to static discharge compared to modern MOSFET/CMOS, but handle with normal precautions. The shielded package provides good internal protection.

Notes

Vintage NOS (New Old Stock) germanium part from the analog television era. AF139 units are increasingly scarce; this is prime collector material for tube/transistor radio and TV restoration projects. Store in a cool, dry environment to preserve long-term stability.

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: PNP
Transistor Case Style: TO-72
