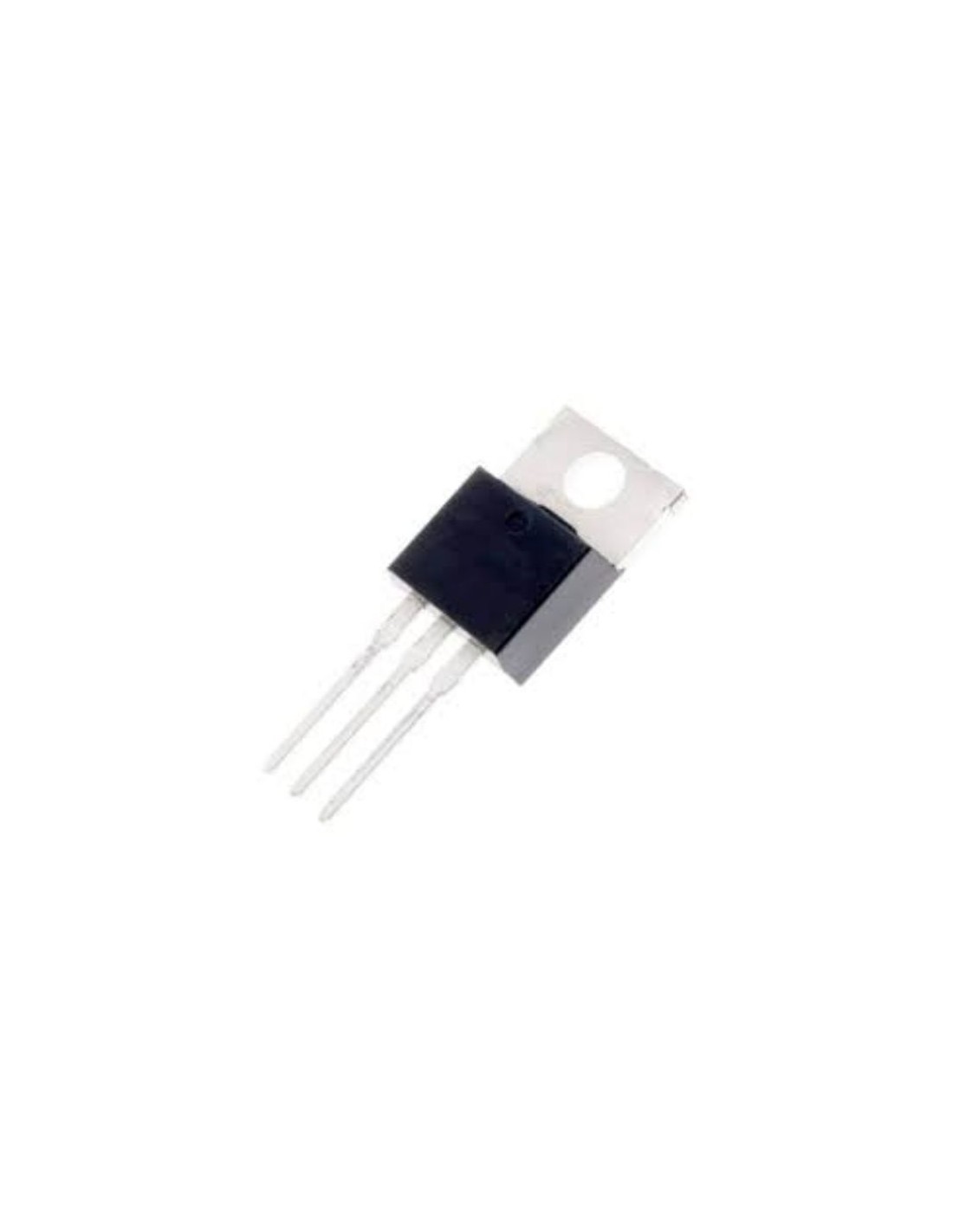

Power Transistor 2SD526 NPN, 4A TO-220

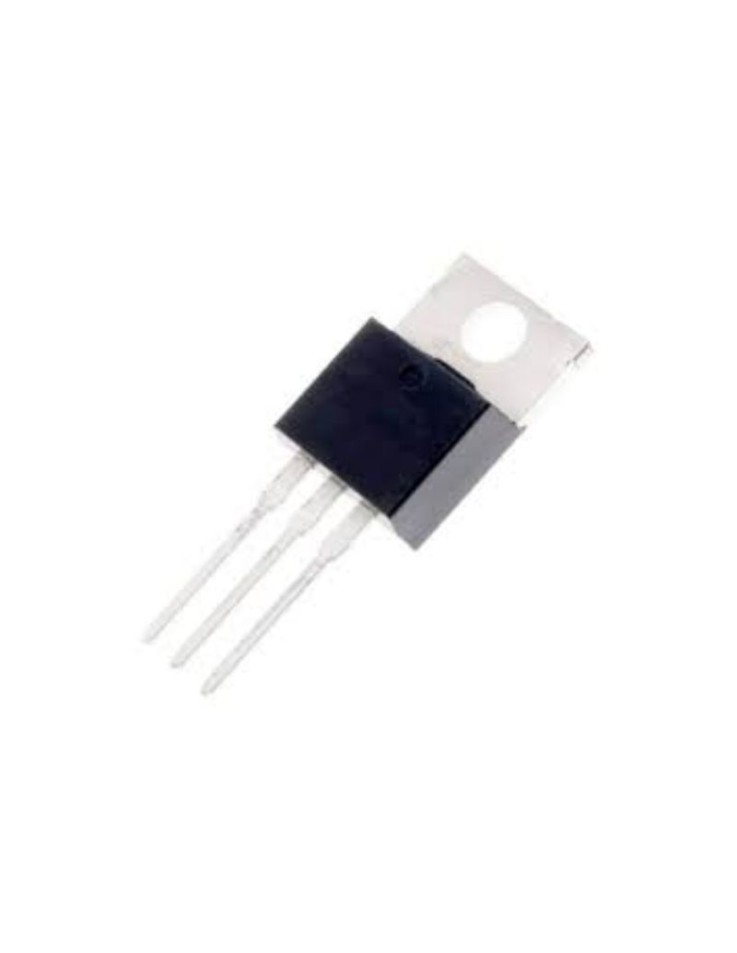

Power Transistor 2SD526 NPN, 4A TO-220

Transistors

Reference: TR2SD526

Part.No: 2SD526

€1.59

Last items in stock

Immediate Dispatch

The 2SD526 is a high-current NPN power transistor in a TO-220 package. Built for motor driving, amplification, and switching applications requiring robust performance at elevated currents and voltages.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

2SD526 Power Transistor - Robust Performance for Motor Driving & High-Current Amplification

The 2SD526 is a robust NPN power transistor designed for high-current switching and amplification circuits. With a maximum collector current of 4A and Vceo rating of 80V, it delivers reliable performance in motor drivers, audio amplifiers, and industrial control applications where durability and thermal stability are critical.

Functions & Applications

High Collector Current: Maximum 4A, suitable for driving motors, relays and high-power loads.
Robust Voltage Rating: Vceo 80V provides safe margin for industrial and automotive circuits.
TO-220 Package: Standard heatsink-mounting design for efficient thermal dissipation.
Switching & Amplification: Versatile BJT for both linear amplification and fast switching applications.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	NPN
Package / Case	TO-220
Collector-Emitter Voltage (Vceo)	80V
Max Collector Current (Ic)	4A
Mounting Type	Through-Hole with Heatsink (TO-220)

Frequently Asked Questions

Q: Is a heatsink required for the 2SD526?
A: Yes, when operating near maximum current (4A), a suitable heatsink is highly recommended to maintain junction temperature within safe limits and ensure long device life.

Q: What is the maximum power dissipation?
A: The 2SD526 can dissipate approximately 40W with an adequate heatsink. Without a heatsink, limit dissipation to roughly 1-2W depending on ambient temperature.

Notes

Heatsink mounting is essential for reliable operation above 1-2W dissipation. Always verify adequate thermal contact between the transistor case and heatsink surface.

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: NPN
Transistor Case Style: TO-220
