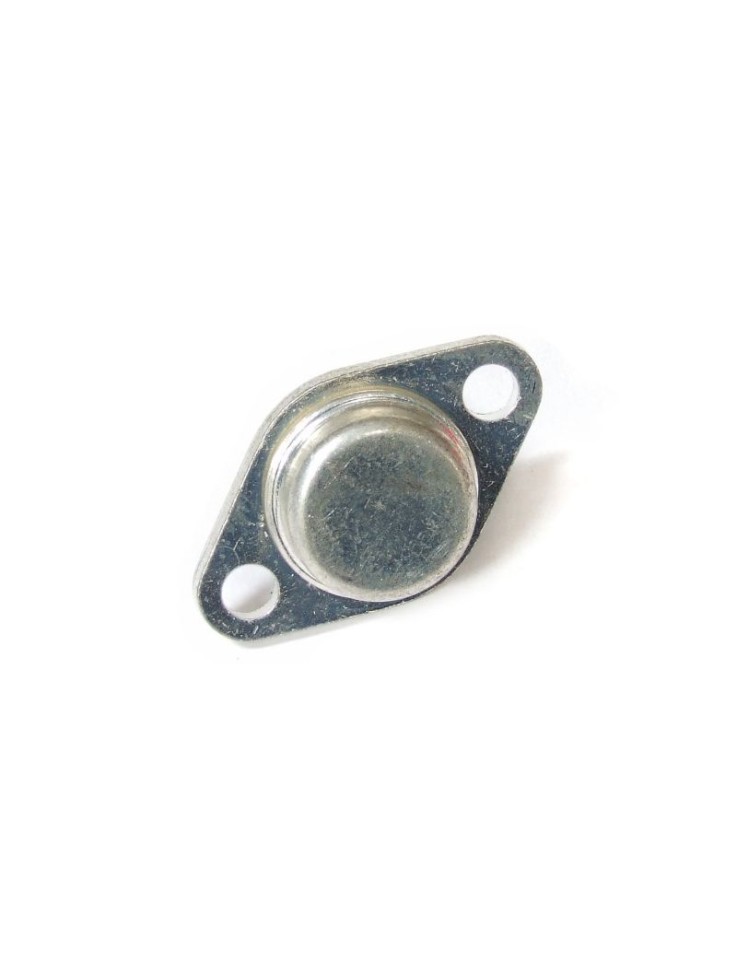

Power Transistor AD164 PNP, TO-3

Power Transistor AD164 PNP, TO-3

Transistors

Reference: TRAD164

Part.No: AD164

€2.34

In Stock

Immediate Dispatch

The AD164 is a PNP Germanium Power Transistor in a TO-3 package, designed for high-current output stages in vintage amplifiers and industrial power supplies. Excellent thermal stability and rugged construction make it ideal for demanding heavy-duty applications.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

AD164 PNP Germanium Power Transistor - Heavy-Duty Output Amplification

The AD164 is a robust PNP germanium power transistor engineered for high-current applications in vintage audio amplifiers and industrial power stages. Its TO-3 metal package allows direct bolting to large external heatsinks, ensuring excellent thermal performance and reliability under continuous heavy-load operation.

Functions & Applications

Heavy-Duty Construction: Designed to handle high currents and continuous operation in demanding power amplifier output stages.
TO-3 Metal Package: Allows direct mechanical attachment to large external heatsinks for superior thermal stability.
Germanium Technology: Offers low saturation voltage and smooth, natural amplification characteristics prized in vintage audio circuits.
Collector Isolation: Metal case is electrically connected to collector; requires mica insulation when mounting to prevent short circuits.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	PNP
Package / Case	TO-3
Mounting Type	Through-Hole (THT), Bolted to Heatsink

Frequently Asked Questions

Q: Does the AD164 require isolation when mounting on a heatsink?
A: Yes. The TO-3 metal case is electrically connected to the collector. You must use a mica insulator sheet between the transistor and the heatsink to prevent unwanted short circuits.

Q: What is the complementary NPN transistor for the AD164?
A: The AD163 is the complementary NPN germanium power transistor, often used as a matching pair in push-pull output stages.

Notes

Vintage germanium power transistor; ensure adequate heatsinking and use mica isolation. Complementary pair: AD163 (NPN).

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: PNP
Transistor Case Style: TO-3
