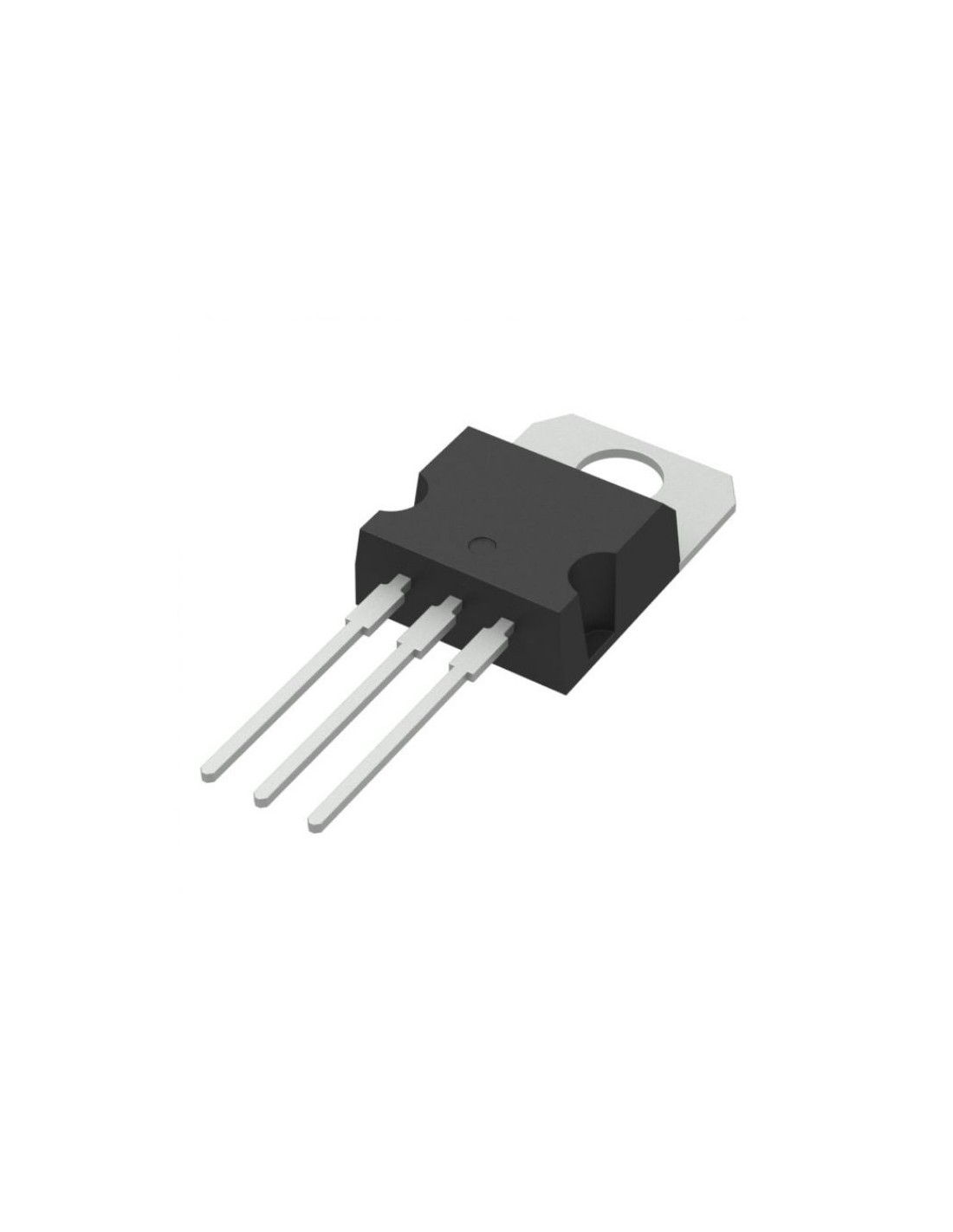

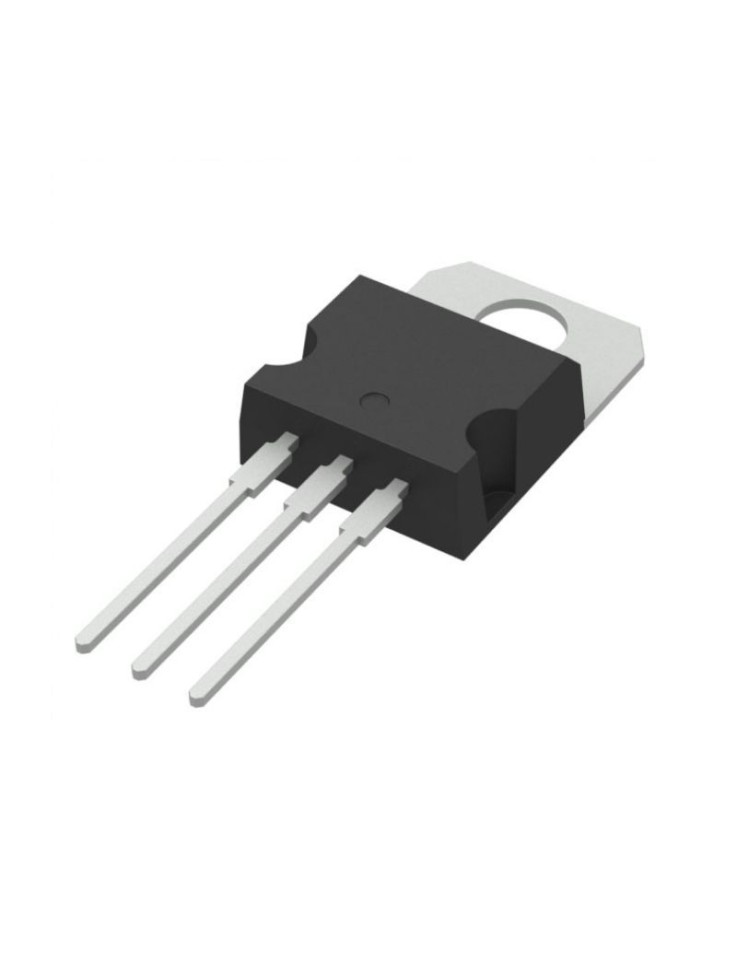

IC 78S15 15V Positive Voltage Regulator (High...

IC 78S15 15V Positive Voltage Regulator (High Current)

IC
IC78S15
Part.No: 78S15
€1.25
In Stock
Immediate Dispatch



Output Voltage: 15V.
Max Output Current: 2A.
Regulator Type: Positive Voltage.
Number of Pins: 3.
Dropout Voltage (Typical): 2.5V (at 2A).
Quiescent Current (Typical): 6mA.
Maximum Junction Temperature ($T_{J_{MAX}}$): 150°C.
Protections: Overheating, Short-circuit.
Typical Capacitors: Input/output capacitors required for stability (e.g., 2.2μF input, 1μF output).
Applications: High-current applications (e.g., power supplies).
