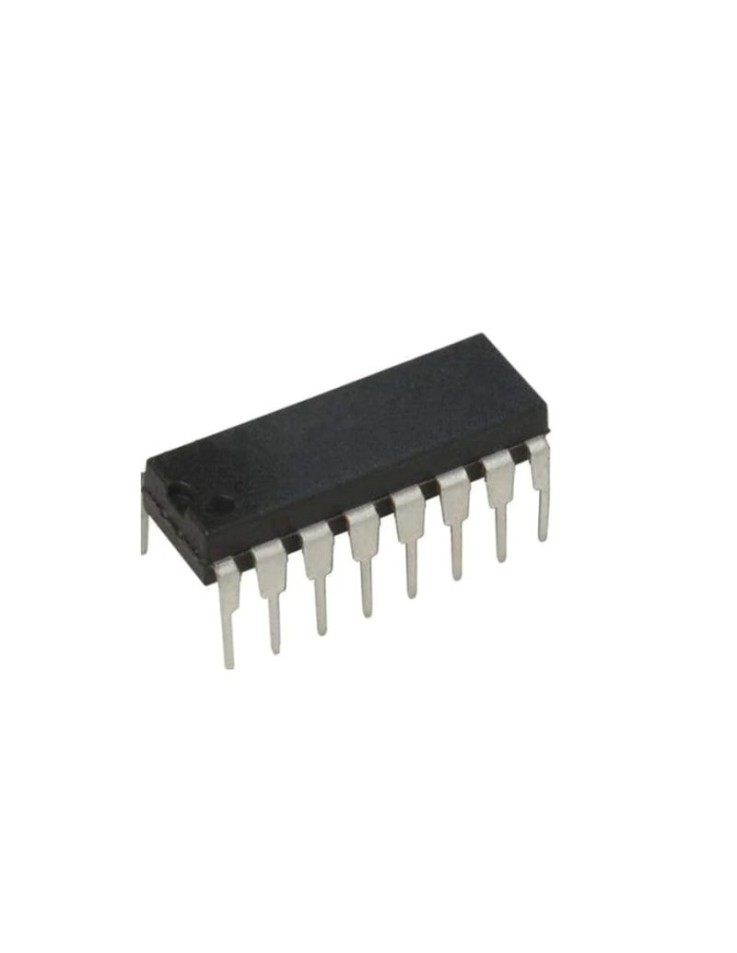

IC 74LS283 4-bit Binary Full Adder

IC 74LS283 4-bit Binary Full Adder

IC
IC74LS283
Part.No: 74LS283
€2.75
Last items in stock
Immediate Dispatch


The 74LS283 is a 4-bit Binary Full Adder. Operating Current: Typical 25mA (Icc). Operating Temperature Range: Commercial range 0°C to +70°C. Speed / Delay: Typical propagation delay (sum output) 20ns. Inputs / Outputs: 4 A inputs, 4 B inputs, Carry-in, 4 Sum outputs, Carry-out. Functions: Performs binary addition of four bits with simultaneous carry-in and carry-out. Essential for Arithmetic Logic Units (ALUs) and other arithmetic circuits.
IC Case Style
DIP 16
