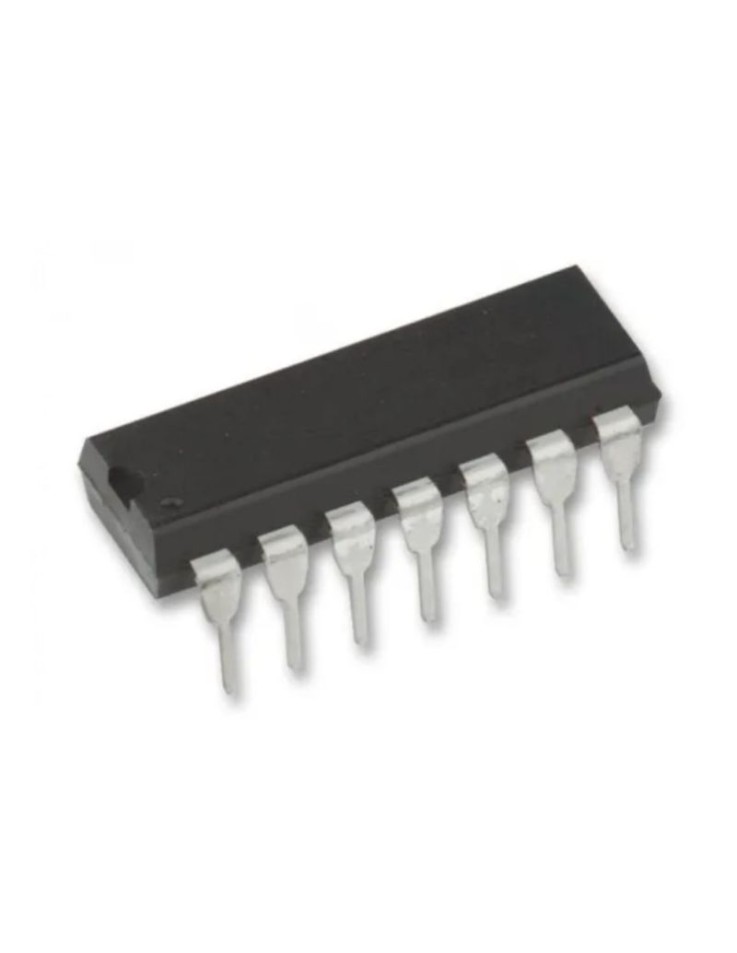

IC 74LS22 Dual 4-input NAND Gate (Open Collector)

IC 74LS22 Dual 4-input NAND Gate (Open Collector)

IC
IC74LS22
Part.No: 74LS22
€1.76
Last items in stock
Immediate Dispatch


The 74LS22 is a TTL IC with two 4-input NAND gates featuring Open Collector outputs. Operating Current: Typical 8mA (Icc). Operating Temperature Range: Commercial range 0°C to +70°C. Speed / Delay: Typical propagation delay (tPLH/tPHL) 20ns. Inputs / Outputs: 4 inputs per gate, 1 Open Collector output per gate (pull-up required). Functions: NAND logic function with "Wired-AND" capability. Ideal for interfacing and logic operations in complex circuits.
IC Case Style
DIP 14
