Βηματικό Μοτέρ 12V (Stepper Motor)

MOT420

New product

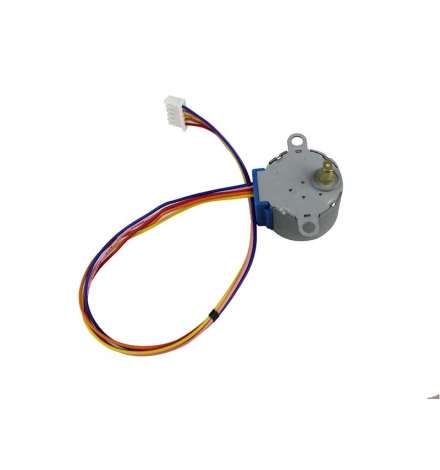

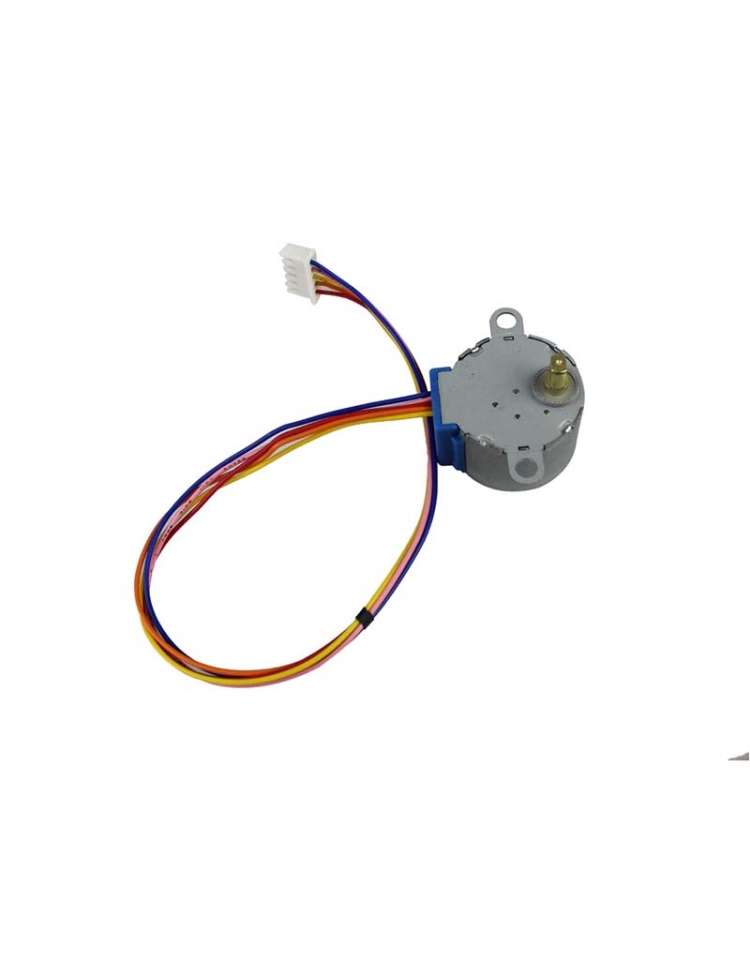

Το 28BYJ-48 είναι ένας μικρός βηματικός κινητήρας κατάλληλος για ένα ευρύ φάσμα εφαρμογών.

More details

Βηματικό Μοτέρ, 5.625° Γωνία, 12Vdc  τάση τροφοδοσίας, 4 φάσεων, 200Ω αντίσταση για κάθε φάση, 350g-cm ροπή (torque), 28mm διάμετρος, 5mm διάμετρος άξονα, 20mm Ύψος, 37g Βάρος

Ο αριθμός των βημάτων και η ταχύτητα καθορίζονται από την συχνότητα του σήματος που θα εφαρμοστεί.



This is a great first stepper motor, good for small projects and experimenting with steppers. This uni-polar motor has a built in mounting plate with two mounting holes. There are only 32 step (11.25 degree) per revolution, and inside is a 1/16 reduction gear set. (Actually its 1/16.032 but for most purposes 1/16 is a good enough approximation) What this means is that there are really 32*16.032 steps per revolution = 513 steps! The shaft is flattened so its easy to attach stuff to it with a set-screw. A perfect first stepper motor and works well with the Motor Shield for Arduino.

SPECIFICATIONS

  • Holding Torque: 0.35kg.cm
  • Rated Voltage: 12Volt
  • Unipolar stepper with 0.1" spaced 5-pin cable connector
  • 32 steps per revolution
  • 1/16.025 geared down reduction
  • 5V-12V DC suggested operation
  • Holding Torque @ 12VDC: 250 gram-force*cm, 25 N*mm/ 3.5 oz-force*in

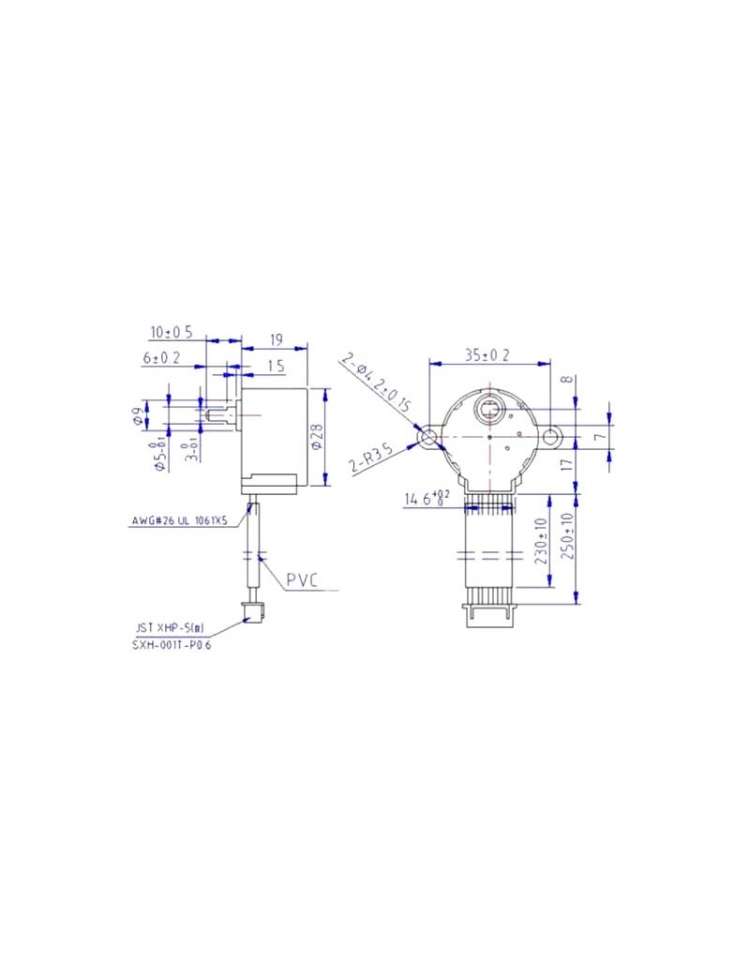

  • Diameter:28mm
  • Tall: 20mm
  • Shaft: 9mm, Diameter flattened:5mm
  • 9" / 23 cm long cable
  • Weight: 37 g
