Stepper Driver Board - ULN2003

MOT432

New product

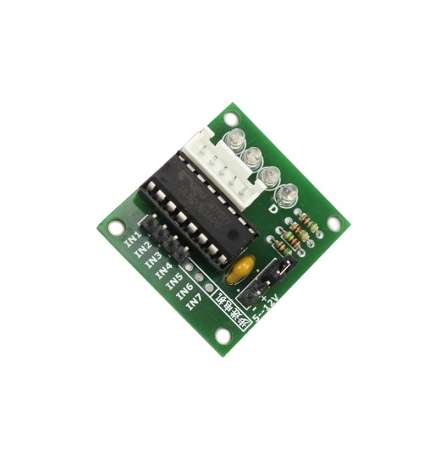

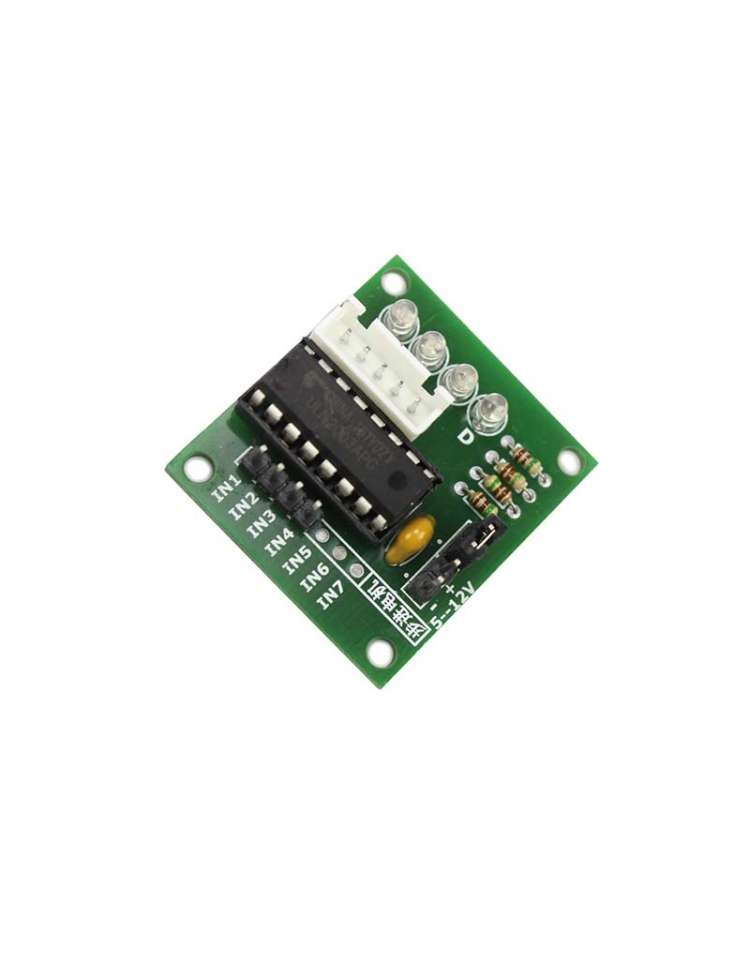

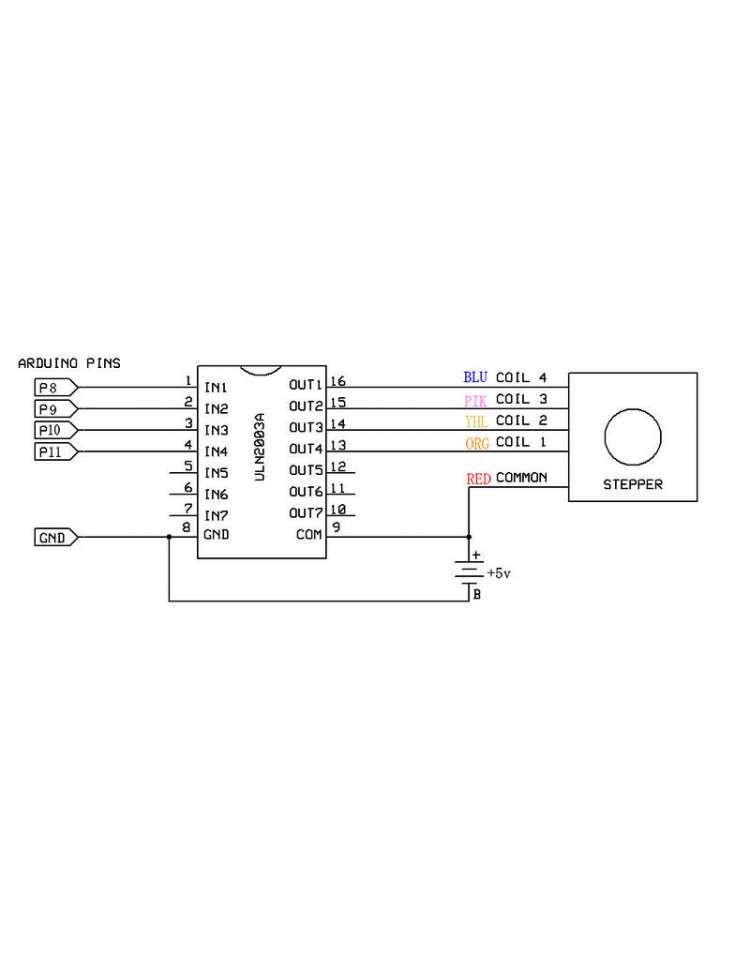

ULN2003 Stepper Motor Driver Board is to use the ULN2003 DARLINGTON ARRAYS to drive the 4-phase 5-wire stepper motor (5v-12v). It's easy to use Arduino or other development platform to drive the stepper motor by this diver board.

5 Line 4 phase can be driven by ordinary ULN2003 chip can also be connected in phase 2 development board used for. supporting the use of a direct plug and easy to use stepper motor used in the development board. Stepper motor driver board with ULN2003 A, B, C, D four-phase LED indicates the status of the stepper motor work Stepper motor with a standard interface, when used directly pluggable

Specifications

  • Max. Current per Channel: 0.50A
  • Τύπος Οδηγού: Stepper
  • Module Type Driver
  • Weight 20.00g
  • Board Size 3.2 x 3.4 x 1.2cm
  • Operation Level Digital 5V
  • Power Supply External 5V



ULN2003
