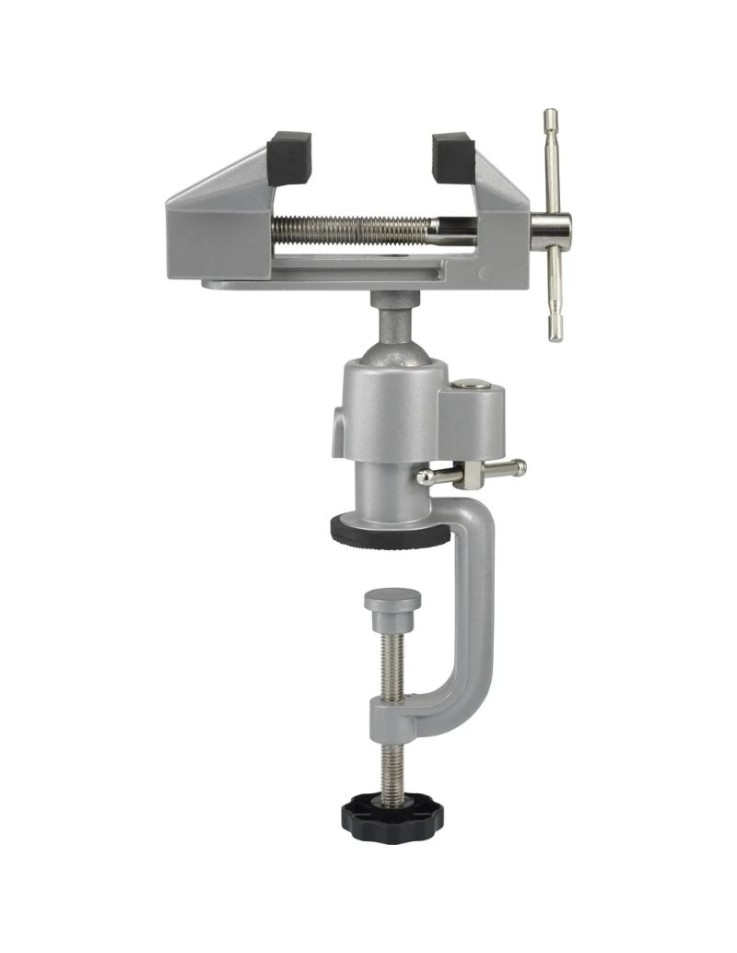

Toolcraft 78mm ball joint table vice with clamp base

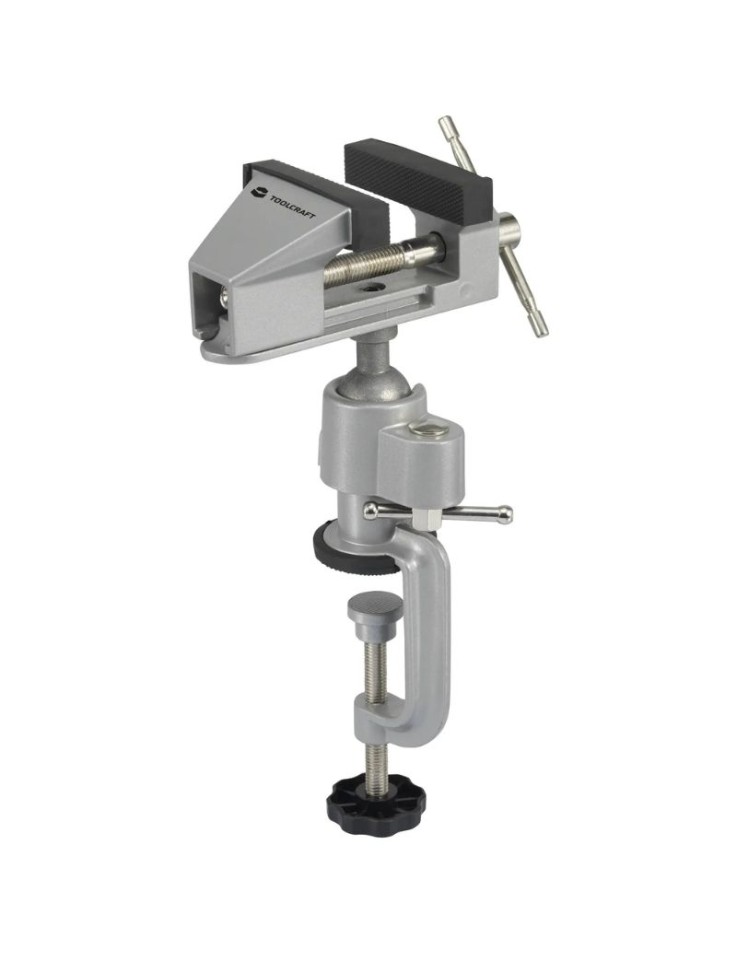

Toolcraft aluminium table vice with T-bar handle and rubber jaws

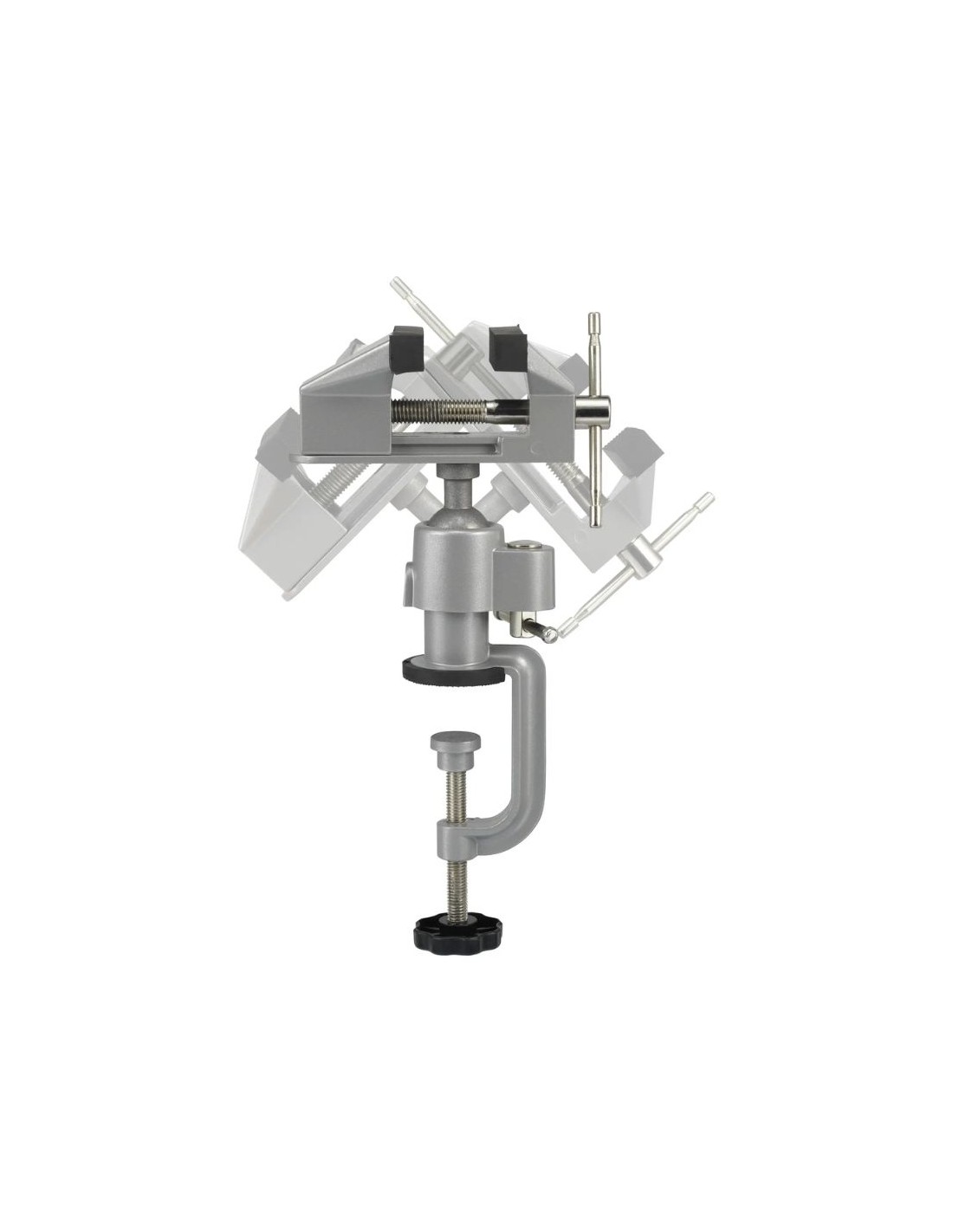

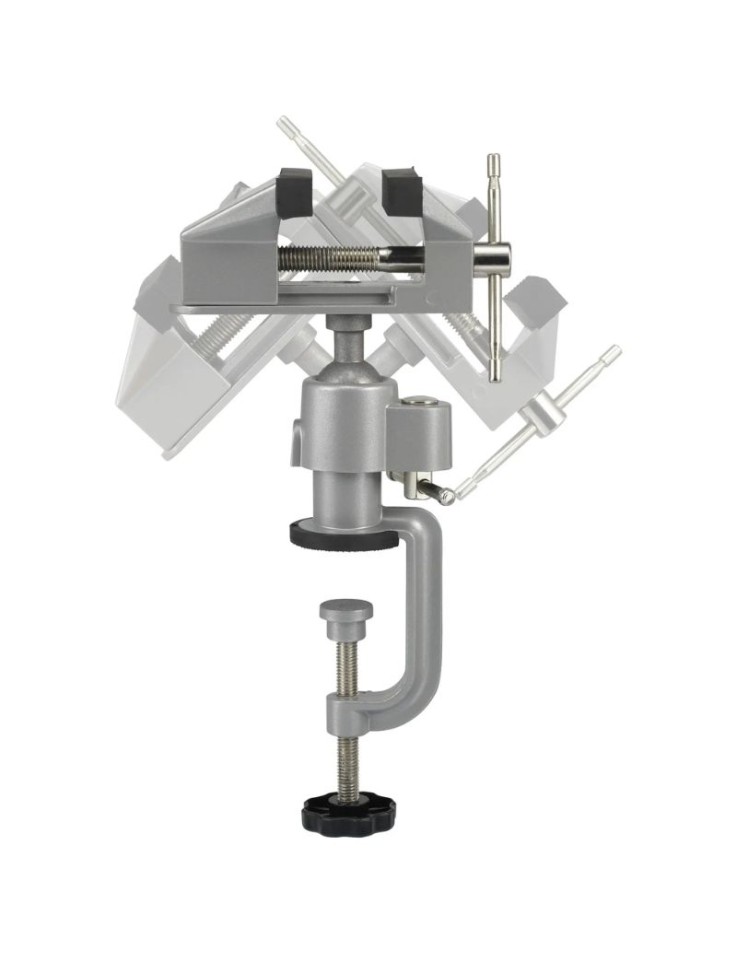

Toolcraft vice with the head tilted in different positions

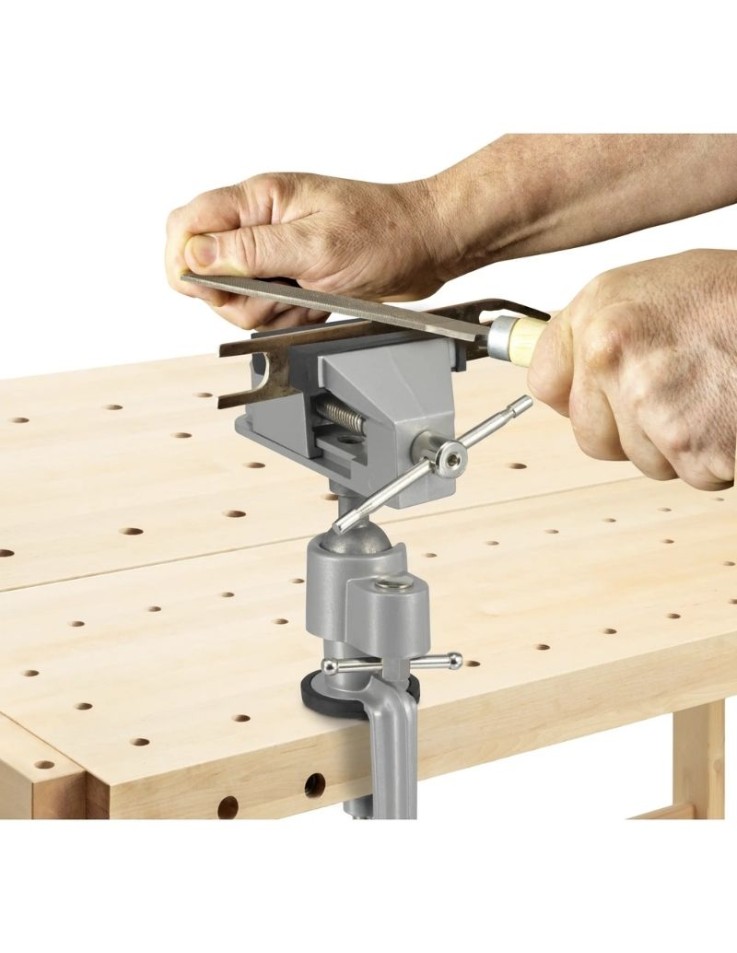

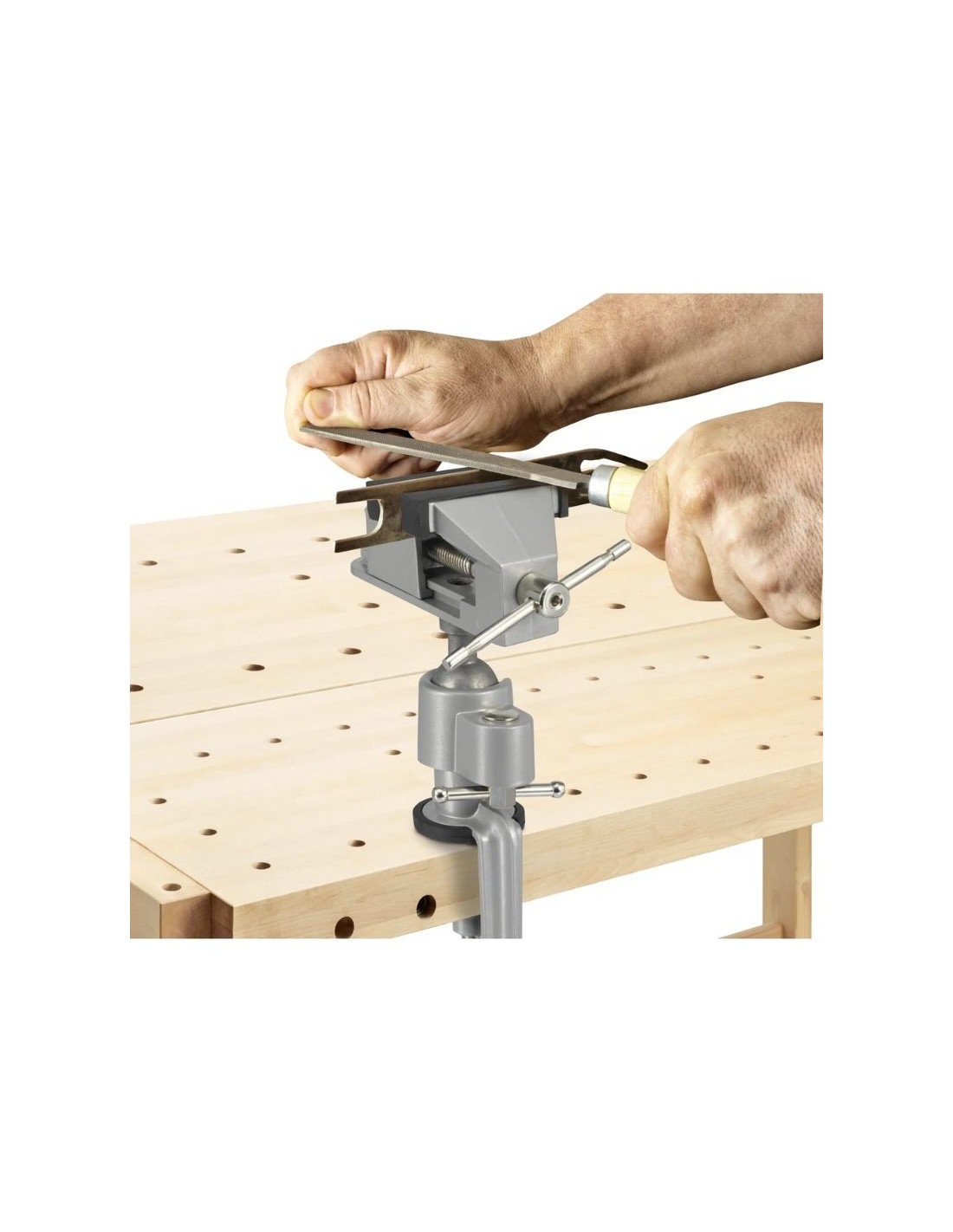

Holding a small workpiece in a Toolcraft vice on a workbench

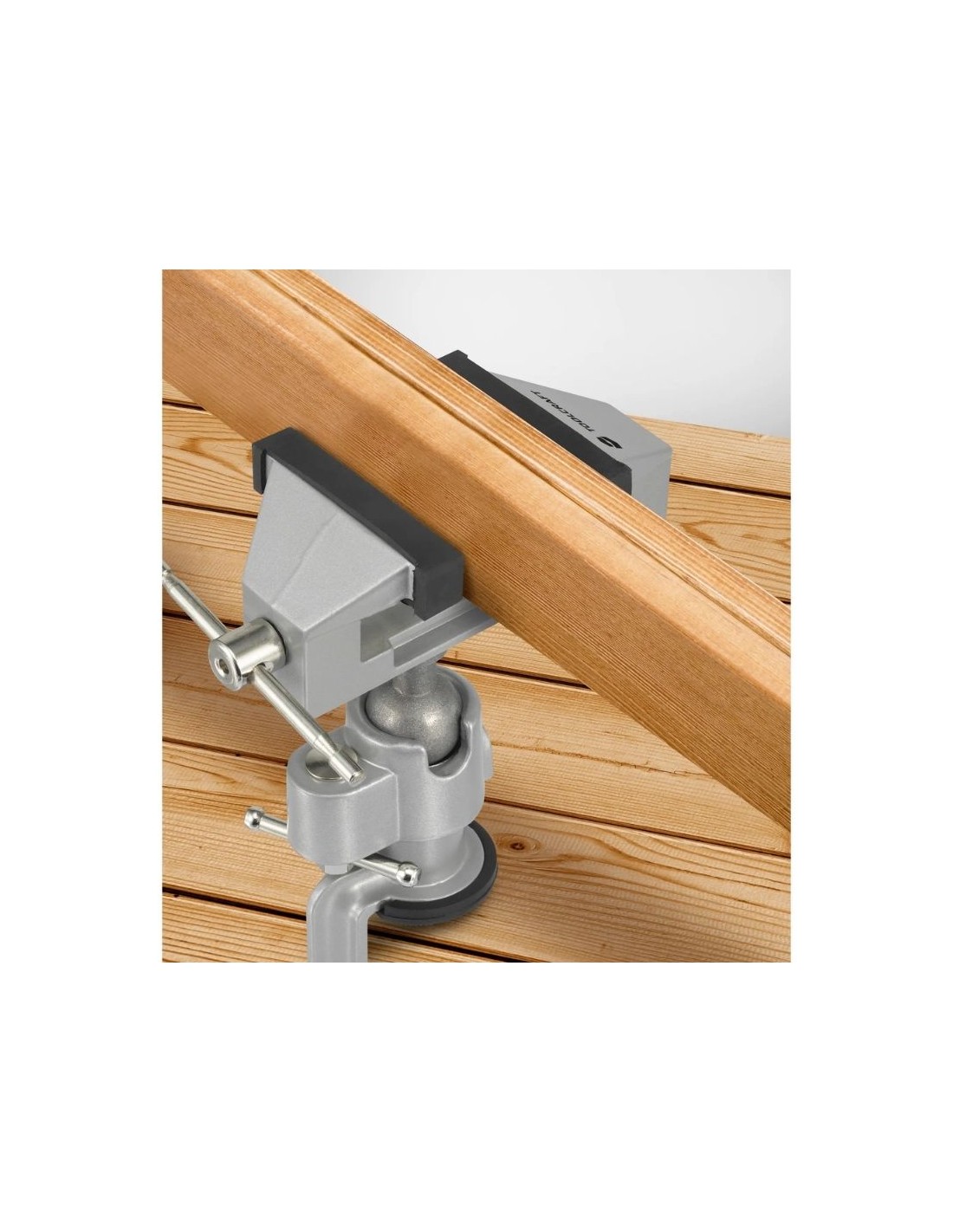

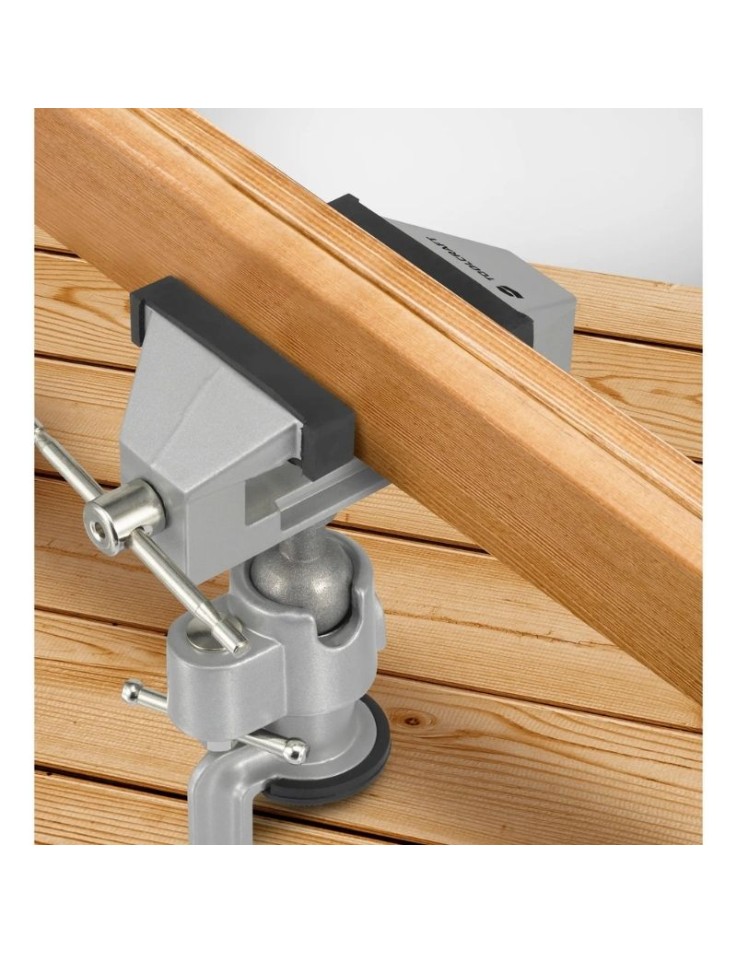

Toolcraft vice clamped to a wooden surface holding a wooden board

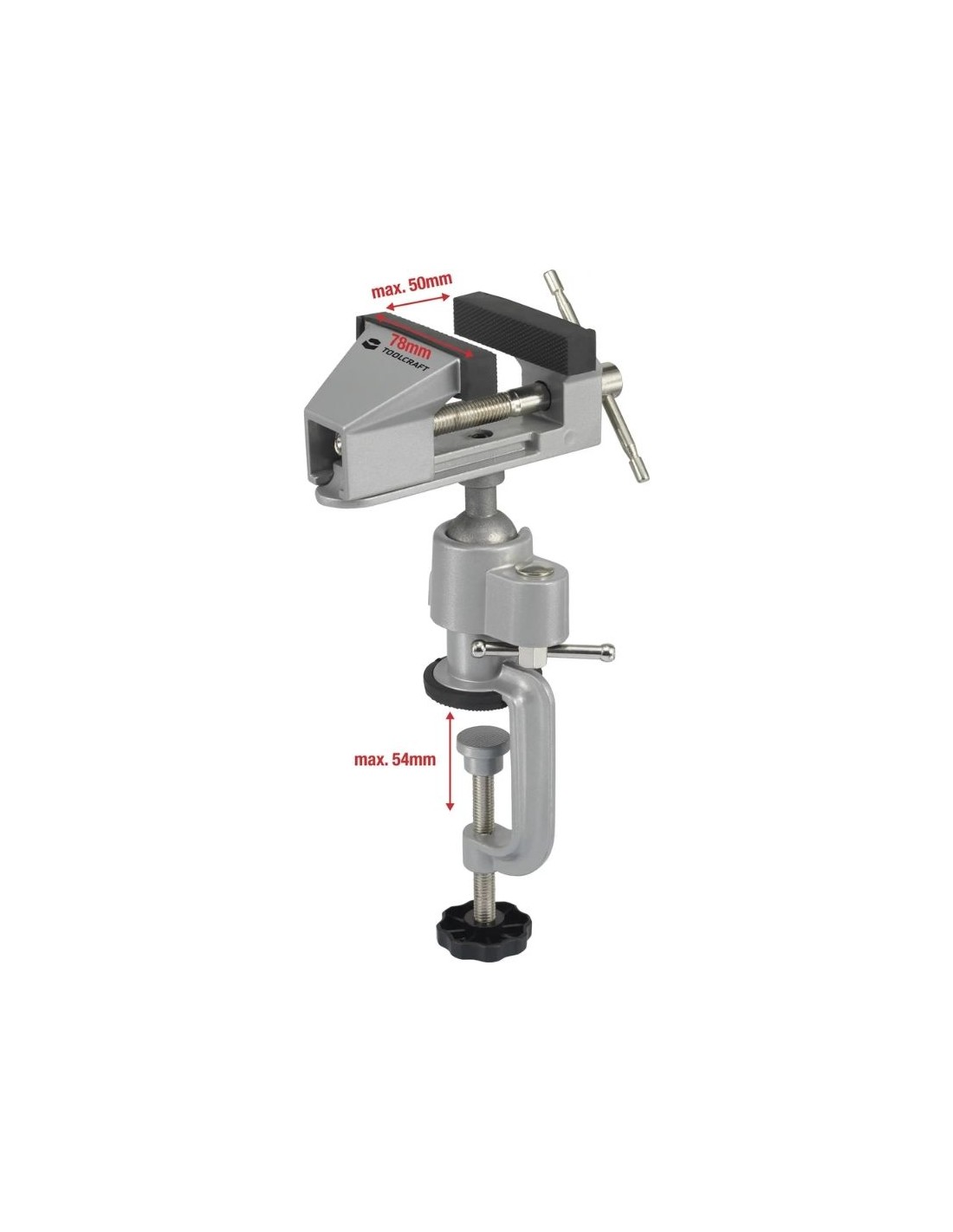

Dimension diagram of the Toolcraft table vice

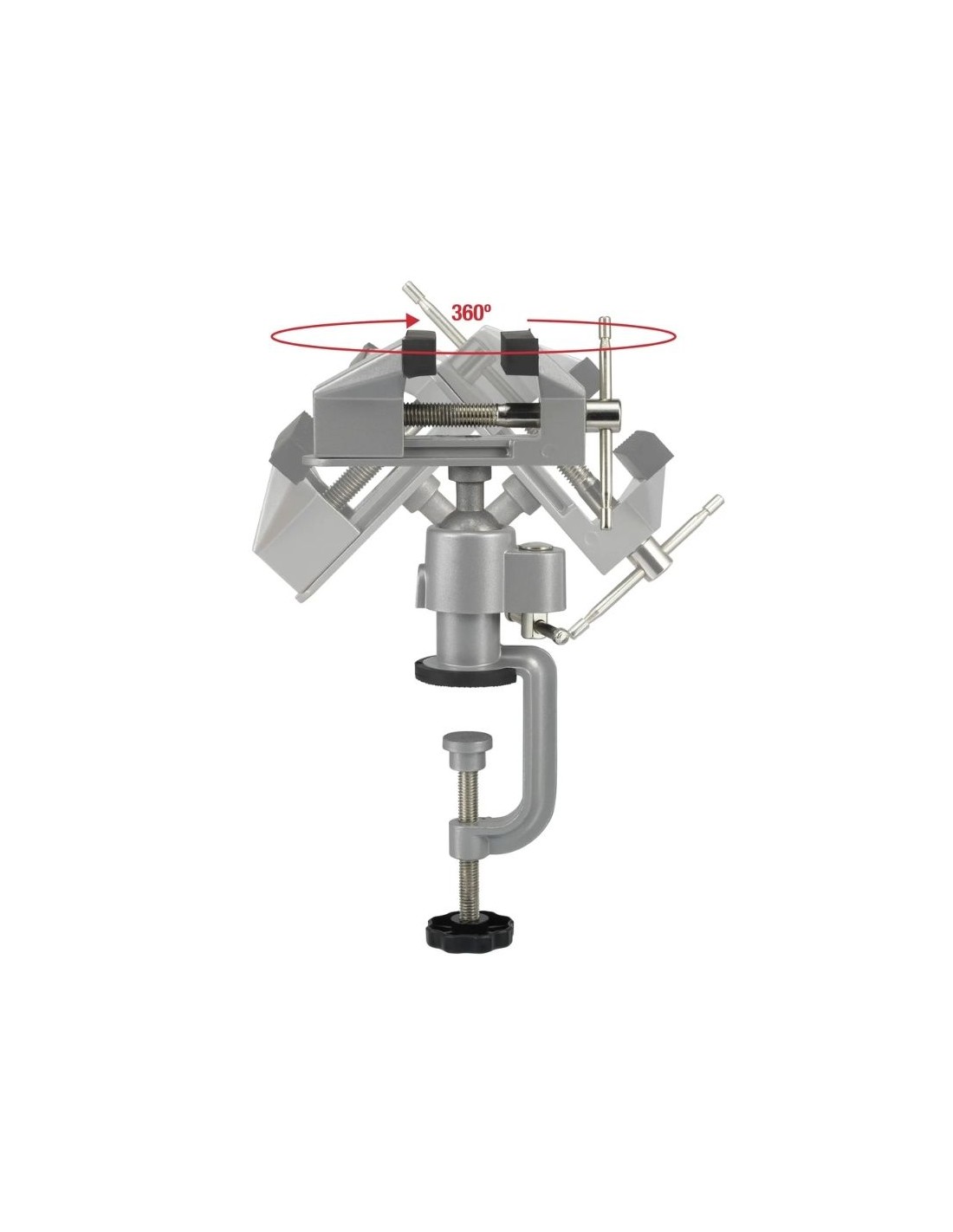

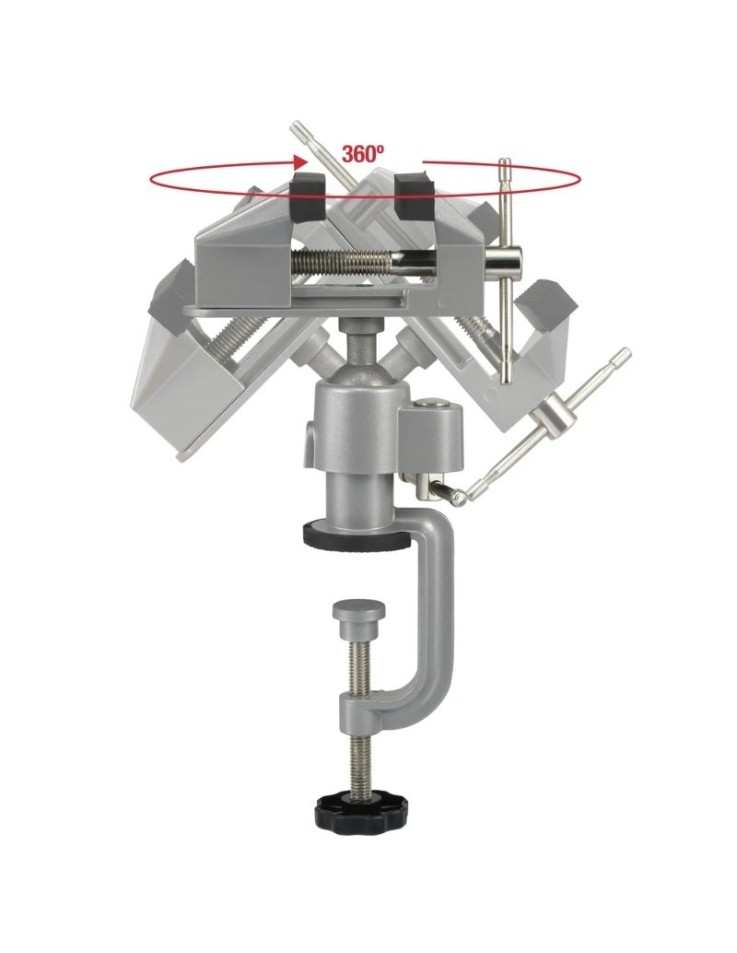

Diagram of the Toolcraft vice's 360° rotation and tilt
Toolcraft 78mm ball joint table vice with clamp base
Toolcraft aluminium table vice with T-bar handle and rubber jaws
Toolcraft vice with the head tilted in different positions
Holding a small workpiece in a Toolcraft vice on a workbench
Toolcraft vice clamped to a wooden surface holding a wooden board
Dimension diagram of the Toolcraft table vice
Diagram of the Toolcraft vice's 360° rotation and tilt

Ball Joint Table Vice 78mm Toolcraft

Vices
VIS098
Part.No: TO-7565019
€23.50
In Stock
Immediate Dispatch

The Toolcraft ball joint table vice has an aluminium body, 78 mm wide jaws and a maximum span of 50 mm. The head rotates 360° and tilts 45°, and the vice clamps to surfaces up to 54 mm thick. The rubber jaw protectors guard delicate workpieces and can be removed to grip wire and rods. Suited to detail work, crafts, modelling, woodworking and soldering.



Ball Joint Table Vice 78mm Toolcraft

The Toolcraft ball joint table vice is a compact holding tool for detail work, with an aluminium body, 78 mm wide jaws and a maximum span of 50 mm. Unlike conventional vices, the head turns and tilts to any position you need, so you can change the working angle without removing the workpiece from the jaws. It is aimed at model makers, hobbyists, craftspeople and workshops doing fine assembly, soldering and woodworking.

  • Ball joint: 360° head rotation and 45° tilt
  • Aluminium body: light and compact, quick to carry and clamp in place
  • Rubber jaw protectors: hold delicate and small workpieces without marking them
  • Wire and rods: the protectors come off to reveal a cross pattern for a firmer grip
  • T-bar: opens and closes the jaws by hand

Technical Specifications

Type Ball joint table vice
Material Aluminium
Jaw width 78 mm
Span width (max.) 50 mm
Holding diameter 43 mm
Mounting Table clamp, surface thickness up to 54 mm
Rotation / tilt 360° / 45°
Dimensions (L × W × H) 150 × 78 × 260 mm
Weight 772 g
Package contents 1 table vice
Manufacturer part number TO-7565019

Frequently Asked Questions

How is the vice fixed to the bench?
It mounts with a table clamp on surfaces up to 54 mm thick, with no drilling or screwing needed.

How far can the head move?
The ball joint allows 360° rotation and 45° tilt. A single turn sets the working angle without taking the workpiece out of the jaws.

Can it hold wire, rods or round objects?
Yes. Remove the rubber jaw protectors to reveal the cross pattern on the jaws. The maximum span is 50 mm and the holding diameter is 43 mm.

Tip: For thin or delicate workpieces keep the rubber protectors on the jaws, and remove them only when gripping wire or rods.
