Stranded Hook-Up Wire 7/0.2mm per Meter

Stranded Hook-Up Wire 7/0.2mm per Meter

Multi-strand Cables
CAB042
€0.25
In Stock
Immediate Dispatch

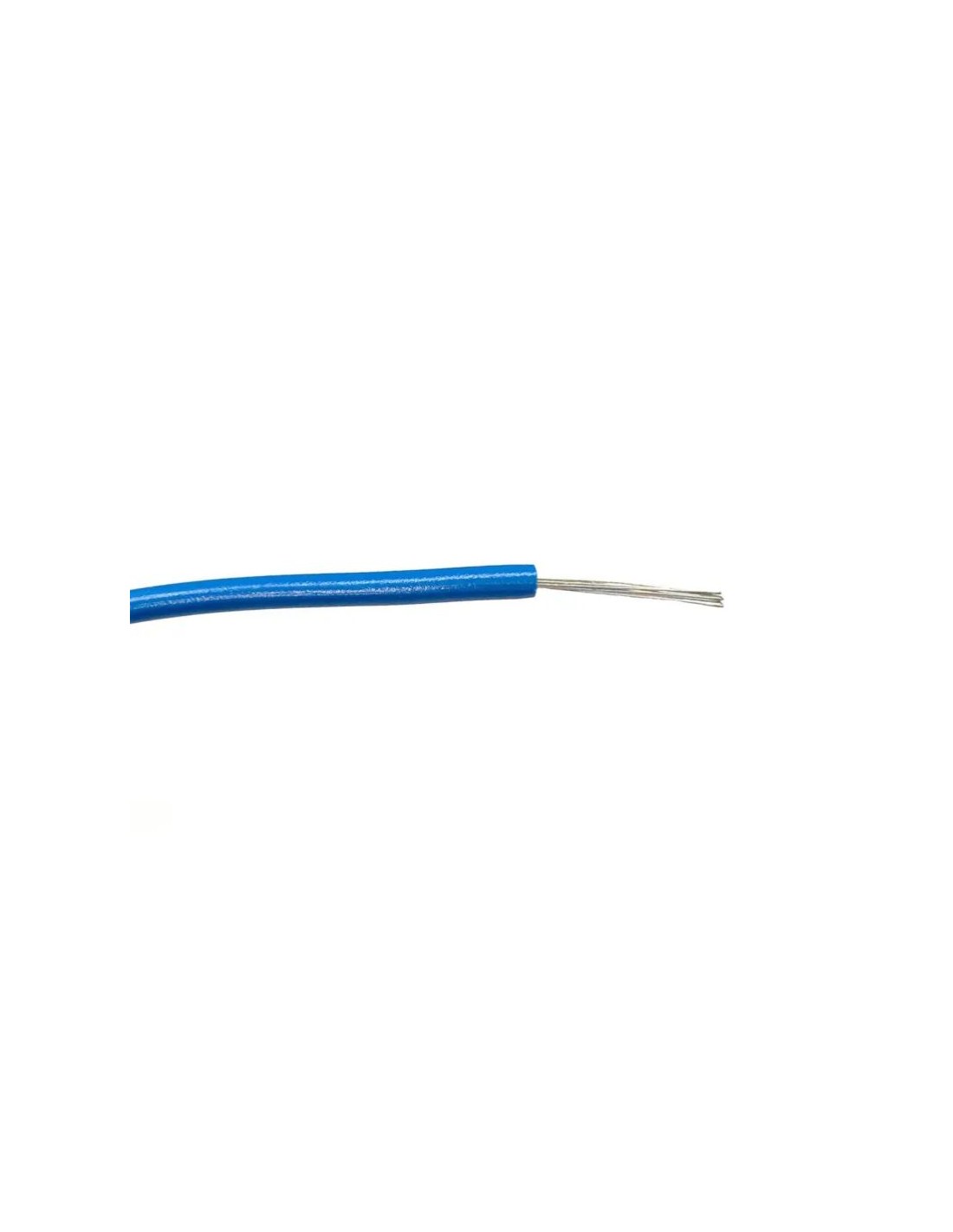

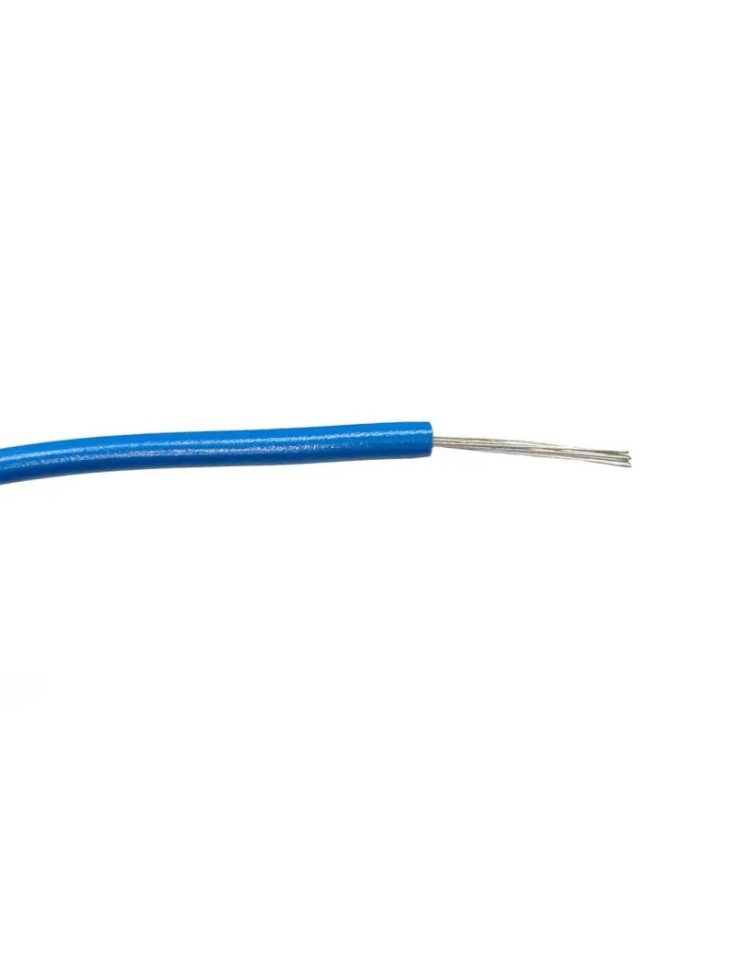

High-quality stranded hook-up wire 7/0.2mm, an essential component for any workbench. Featuring a core made of 7 fine strands of tinned copper, this wire provides exceptional flexibility and resistance to metal fatigue, making it perfect for permanent soldering on PCBs and internal device wiring. Available in 11 colors for easy circuit organization and sold per meter to give you ultimate flexibility in your orders.

Color
Color
  • Black
  • Grey
  • Green
  • Blue
  • Violet
  • Pink
  • Red
  • Brown
  • Orange
  • Yellow
  • White



Flexibility and Durability for Permanent Installations

Our 7/0.2mm stranded hook-up wire is the go-to choice for electronics engineers, DIYers, and educational labs. Unlike solid core wire, its stranded construction (7 individual 0.2mm strands) offers superior flexibility, making it highly resistant to bending fatigue. This makes it ideal for wiring routes subjected to movement or vibration. The tinned copper conductor ensures excellent conductivity and effortless soldering, while the durable PVC jacket provides reliable insulation and quick, clean stripping.

Key Features

  • High Flexibility: The stranded core allows the wire to easily bend and route through tight enclosures without snapping or breaking from metal fatigue.
  • Easy Solderability: The tinned copper conductor makes soldering onto PCBs or permanent perfboards efficient, clean, and highly reliable.
  • Durable PVC Insulation: 0.3mm DEF61-12 Type 2 wall cover protects against short circuits and smoothly handles up to 1,000V RMS.
  • Certified Quality: Fully CE Approved and RoHS compliant for safe use in educational and professional environments.

Suggested Uses

  • Permanent soldered connections on PCBs and custom project boards.
  • Internal wiring for electronic devices, control panels, amplifiers, and robotics where wire flexibility is required.
  • Color-coding complex circuits (VCC, GND, Data, Clock) utilizing the wide variety of available colors.
  • Laboratory setups and university electronics projects.

Technical Specifications

Conductor Type Stranded Hook-up / Equipment Wire
Cross-section / Core 7/0.2mm (7 strands of 0.2mm tinned copper)

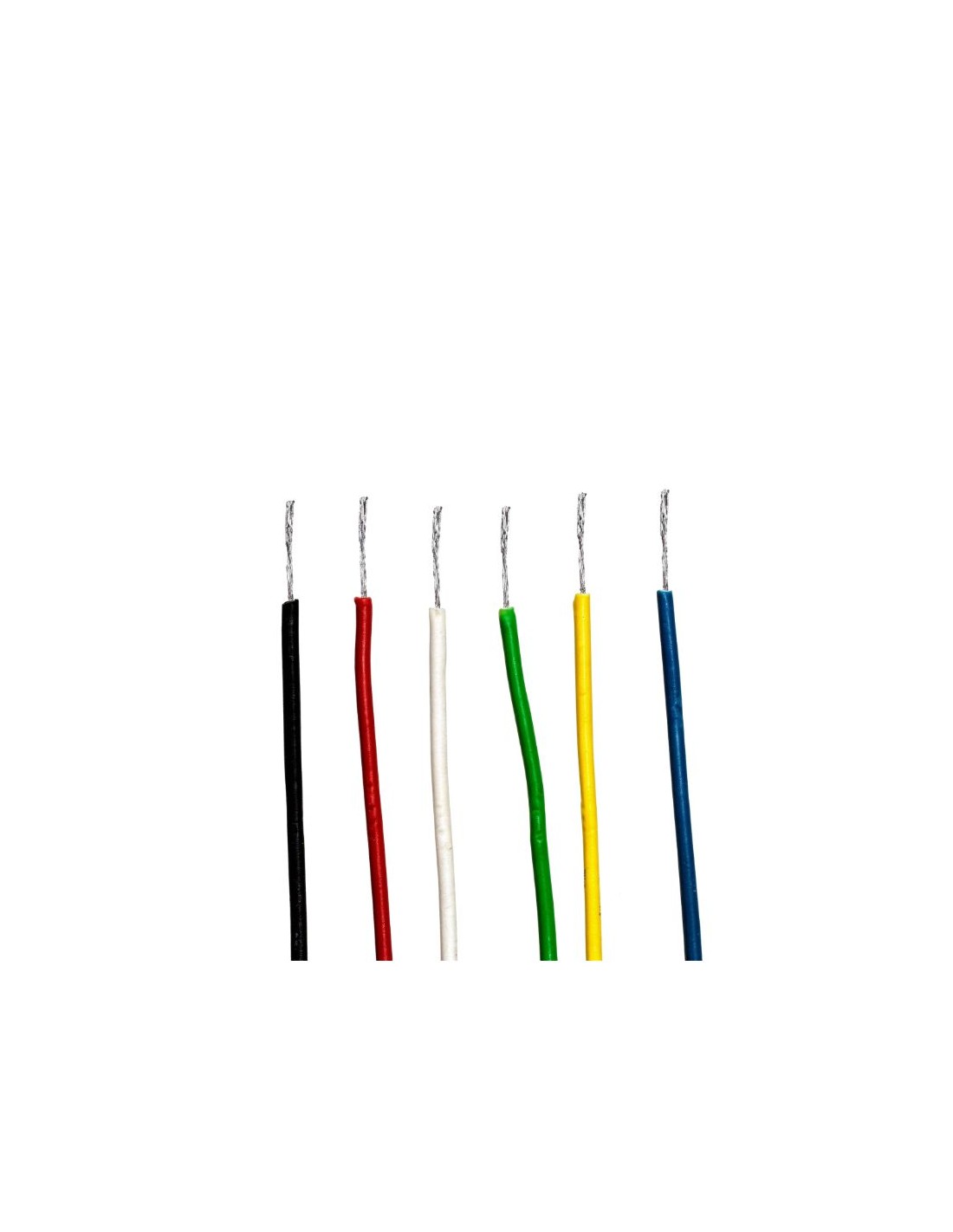

Available Colors Black, Red, Blue, Green, Yellow, Purple, Pink, Grey, White, Orange, Brown
Insulation Wall Cover PVC 0.3mm to DEF61-12 Type 2
Outer Diameter (O/D) 1.2mm nominal
Max Rating 1.4 A @ 1,000V RMS max
Certifications CE Approved, RoHS compliant

Packaging / Sales: This product is sold per meter. The listed price is for 1 meter of wire. Please enter your desired quantity (in meters) in your cart, and the wire will be cut into a single, continuous piece based on the selected length.

Color Selection: Please choose your preferred Color from the attribute dropdown menu before adding the item to your cart. We highly recommend using different colors to properly code your circuits (e.g., Red for VCC, Black for GND).
