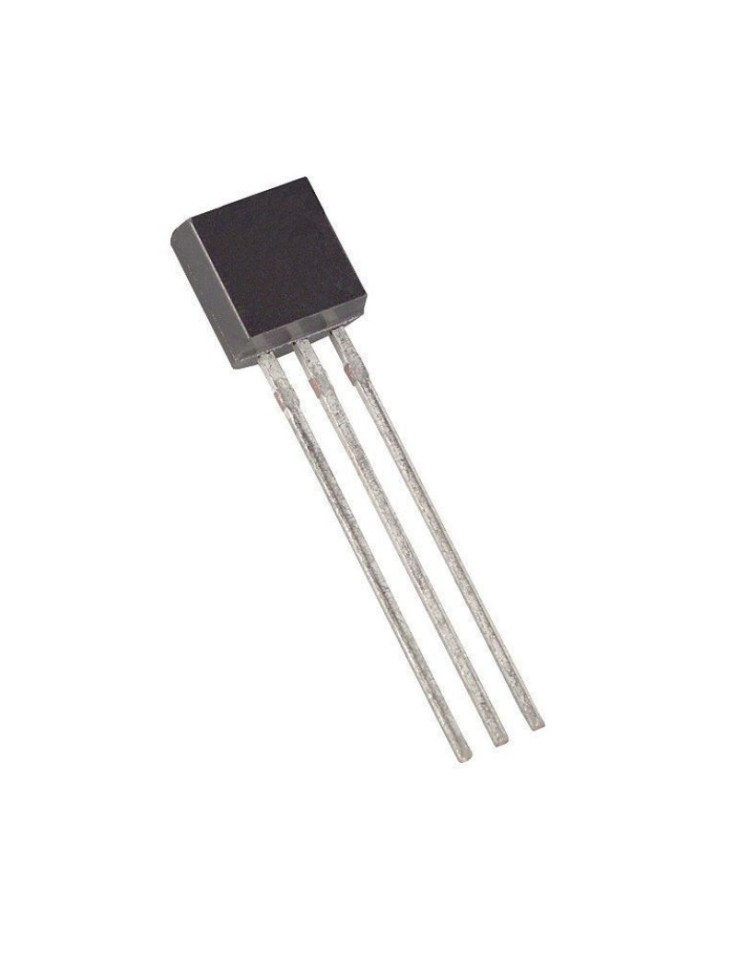

Transistor BF197 NPN, 100mA TO-92

Transistor BF197 NPN, 100mA TO-92

Transistors

Reference: TRBF197

Part.No: BF197

€0.60

In Stock

Immediate Dispatch

The BF197 is a high-linearity NPN silicon transistor in a TO-92 package, optimized for video and RF intermediate frequency (IF) amplification. Widely used in television tuners, FM receivers, and analog signal processing circuits.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

BF197 Video/RF Transistor - High Linearity for IF Amplification

The BF197 is a specialized NPN transistor engineered for high-frequency video and RF applications. It delivers excellent linearity and stability, making it the ideal choice for intermediate frequency amplifiers in television tuners, FM receivers, and precision analog circuits where signal fidelity is critical.

Functions & Applications

High Linearity: Clean signal transfer in IF amplifiers without distortion.
Wide Bandwidth: Optimized for video (up to MHz range) and FM IF stages at 10.7MHz.
Stable Gain: Fixed-gain operation ideal for cascade amplification stages.
TO-92 Package: Economical through-hole plastic package, easy integration in vintage and modern circuits.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	NPN
Package / Case	TO-92
Max Collector Current (Ic)	100mA
Collector-Emitter Voltage (Vceo)	45V
Power Dissipation (Pd)	250mW
Mounting Type	Through-Hole (THT)

Frequently Asked Questions

Q: Can the BF197 be used in FM receiver IF stages?
A: Yes, the BF197 is specifically designed for FM IF amplification at 10.7MHz, delivering excellent gain and linearity for FM tuner circuits.

Q: What is the complementary PNP part for the BF197?
A: The complementary PNP transistor with similar RF/video performance characteristics is the BF177.

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: NPN
Transistor Case Style: TO-92
