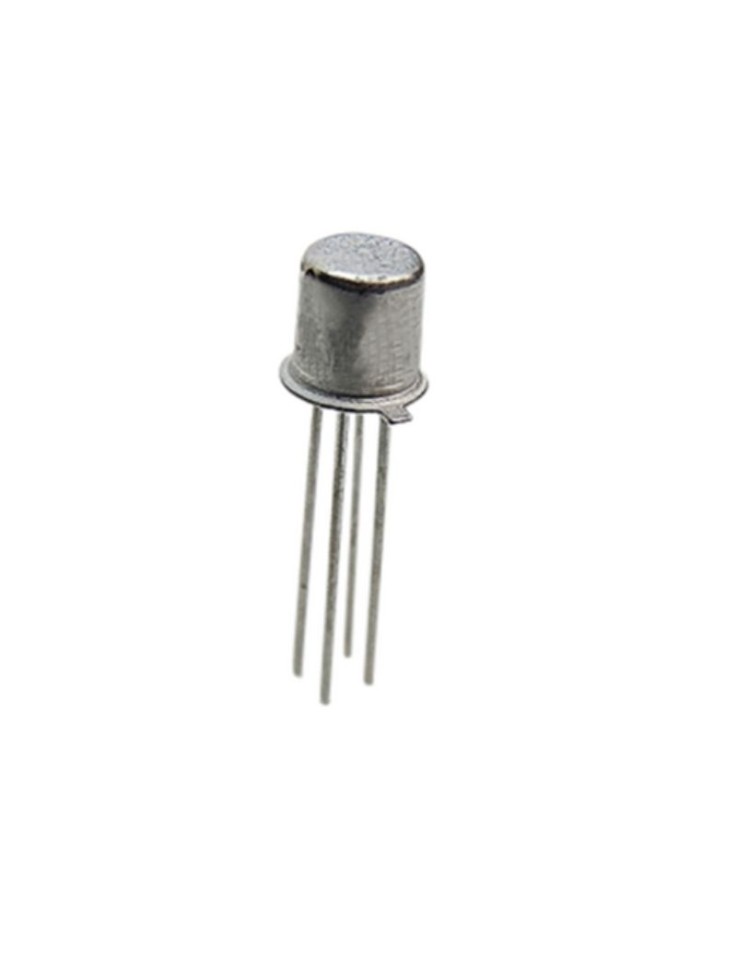

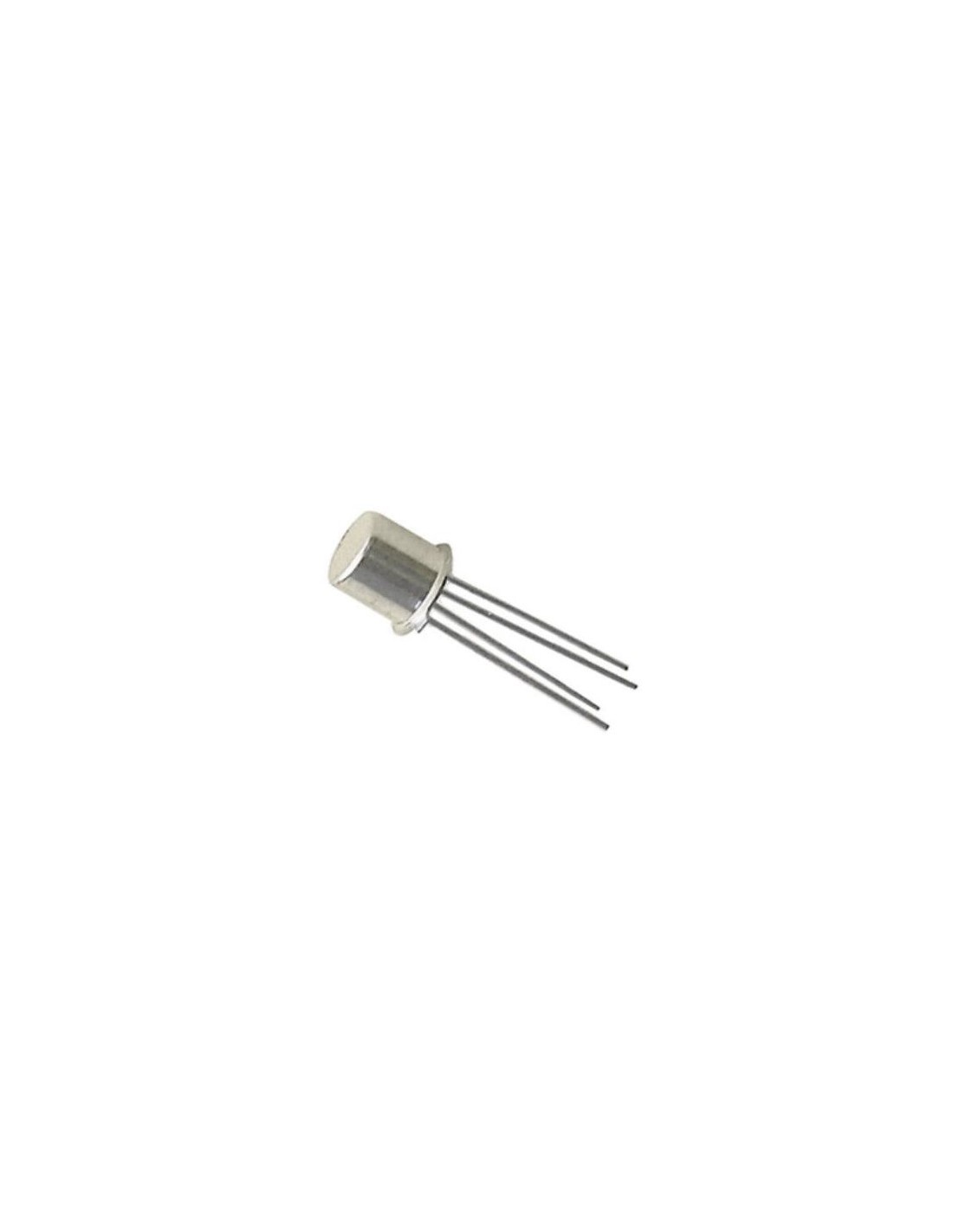

Transistor BF167 NPN, Video/RF TO-72

Transistor BF167 NPN, Video/RF TO-72

Transistor BF167 NPN, Video/RF TO-72

Transistor BF167 NPN, Video/RF TO-72

Transistor BF167 NPN, Video/RF TO-72

Transistors

Reference: TRBF167

Part.No: BF167

€1.20

In Stock

Immediate Dispatch

The BF167 is an NPN Bipolar Junction Transistor (BJT) in a shielded TO-72 package, purpose-built for video intermediate frequency (IF) and automatic gain control (AGC) applications in vintage television receivers and RF circuits.

Add to cart

Subscribe To When In Stock

You have successfully subscribed to this product

Description
Product Details

BF167 Video/RF Transistor - AGC-Ready for Classic TV Circuits

The BF167 is a specialized NPN transistor engineered for intermediate frequency amplification and automatic gain control in television receivers. Its voltage-controlled gain makes it ideal for maintaining stable image contrast across varying signal strengths, and its shielded TO-72 package minimizes RF interference in critical signal paths.

Functions & Applications

Voltage-Controlled Gain: Optimized for AGC circuits, automatically adjusting amplification based on signal strength.
Shielded TO-72 Package: Built-in 4th lead for grounding the metal case, reducing RF interference and crosstalk.
Video/IF Optimized: Tuned for intermediate frequency and video signal paths in classic television designs.
Stable Operation: Reliable performance across temperature and bias variations in AGC feedback loops.

Technical Specifications

Parameter	Value / Specification
Transistor Type	BJT (Bipolar Junction Transistor)
Polarity / Channel	NPN
Package / Case	TO-72
Collector-Emitter Voltage (Vceo)	30V
Max Collector Current (Ic)	50mA
Power Dissipation (Pd)	300mW
Mounting Type	Through-Hole (THT)

Frequently Asked Questions

Q: What is the 4th lead (metal case ground) used for in the BF167?
A: The 4th lead is connected to the metal shield case and should be grounded to reduce RF interference and improve shielding in high-frequency circuits like TV IF amplifiers.

Q: Can the BF167 be used outside of television AGC circuits?
A: Yes, the BF167 is suitable for any RF or IF amplifier application requiring voltage-controlled gain, though it is optimized specifically for TV intermediate frequency work. For general small-signal amplification, a BC547 or BC337 is typically preferred.

Notes

Vintage TV service part, well-suited for restoration and repair of classic television receivers. The BF167 remains popular among technicians restoring 1960s–1980s TV sets.

Note: Price refers to one (1) piece. The component is shipped in bulk without individual packaging.

Transistor Type: BJT (Bipolar Junction Transistor)
Transistor Polarity / Channel: NPN
Transistor Case Style: TO-72
