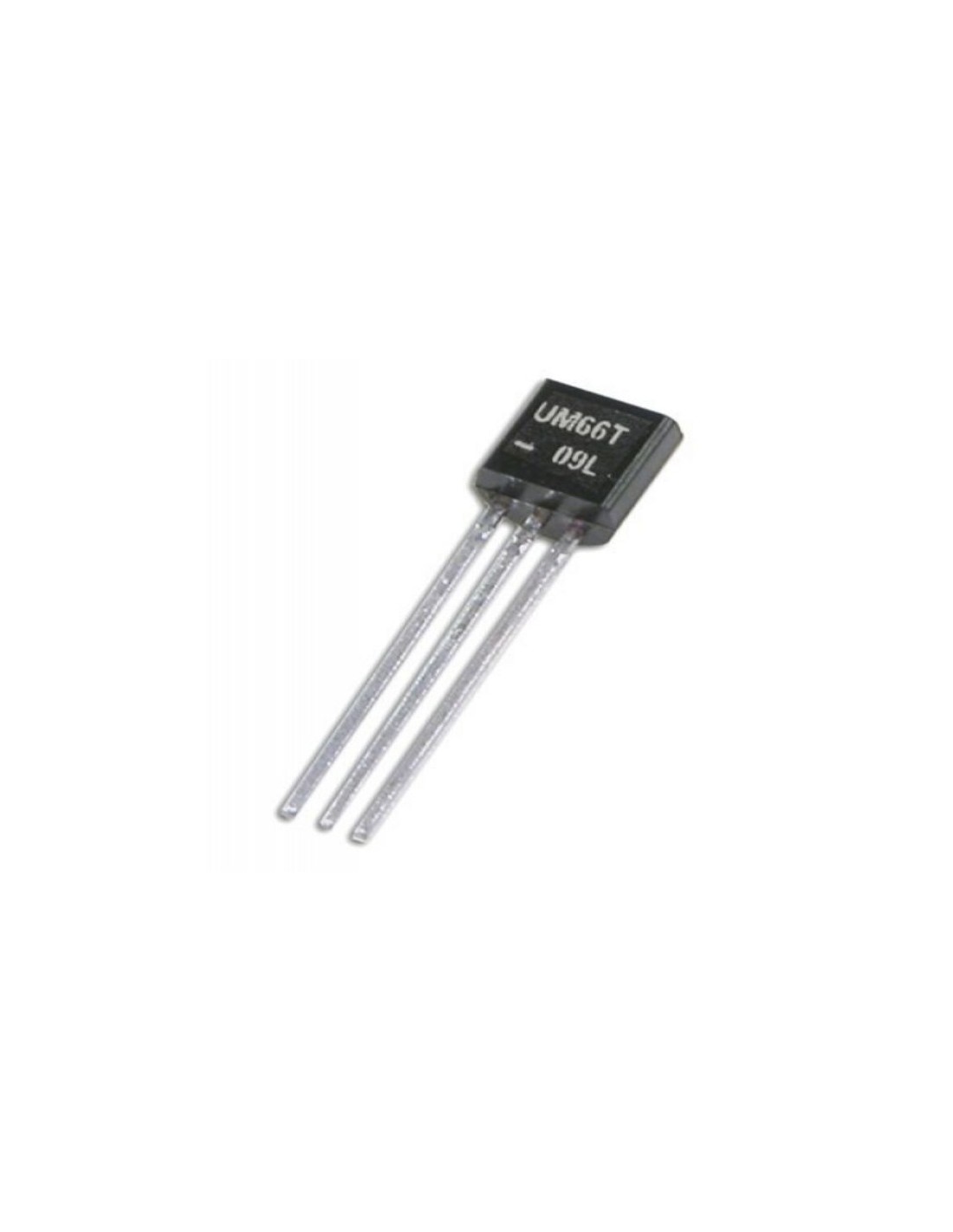

IC Melody UM66T - Melody/Music Generator IC

IC Melody UM66T - Melody/Music Generator IC

IC
ICUM66T
Part.No: UM66T
€1.80
In Stock
Immediate Dispatch



Add sound and melody to your electronic projects with the popular IC Melody UM66T! This easy-to-use integrated circuit (IC) is a complete music generator, capable of automatically producing a pre-programmed melody. It is ideal for applications such as toys, doorbells, alarms, digital timers, and small electronic devices.

The UM66T is highly favored by electronics enthusiasts due to its extremely simple connection (only 3 pins) and low power consumption. All that's required is a power supply connection and a small external amplifier with a speaker to hear the melody.

Key Technical Specifications:

  • IC Type: UM66T (UM66TxxS/L Family)

  • Function: Melody/Music Generator

  • Melody: Pre-programmed (depends on the code: e.g., Jingle Bells, For Elise, Birthday Song)

  • Pinout:

    • Pin 1 (VSS/GND): Ground

    • Pin 2 (VDD/V+): Power Supply

    • Pin 3 (Out): Sound Output (Connects to amplifier/speaker)

  • Supply Voltage: Typically 1.5V to 4.5V DC (Ideal for battery operation).

  • Current Consumption: Very low.

  • Package: TO-92 (Easy to use on a breadboard or PCB).

Get the UM66T IC and add a fun, musical dimension to your electronic builds!
