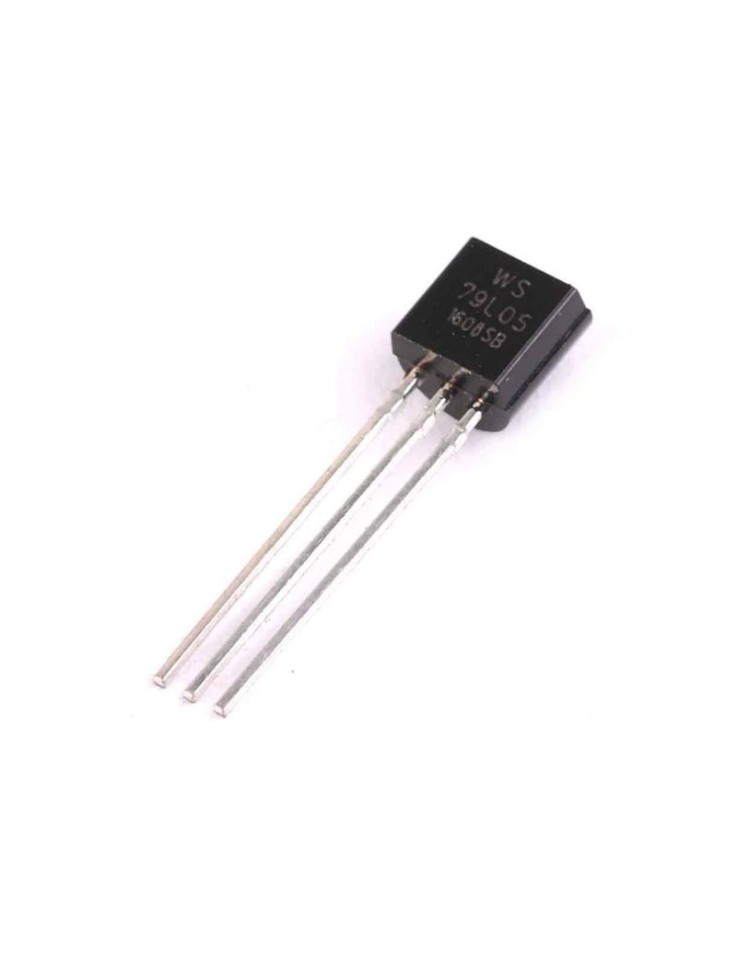

IC 79L05 -5V Negative Voltage Regulator (Low...

IC 79L05 -5V Negative Voltage Regulator (Low Current)

IC
IC79L05
Part.No: 79L05
€0.75
In Stock
Immediate Dispatch



Output Voltage: -5V.
Max Output Current: 100mA.
Regulator Type: Negative Voltage.
Number of Pins: 3.
Dropout Voltage (Typical): 1.7V (at 100mA).
Quiescent Current (Typical): 2.5mA.
Maximum Junction Temperature ($T_{J_{MAX}}$): 150°C.
Protections: Overheating, Short-circuit.
Typical Capacitors: Input/output capacitors required for stability (e.g., 0.1μF input, 0.01μF output).
Applications: Low power applications requiring negative voltage.
