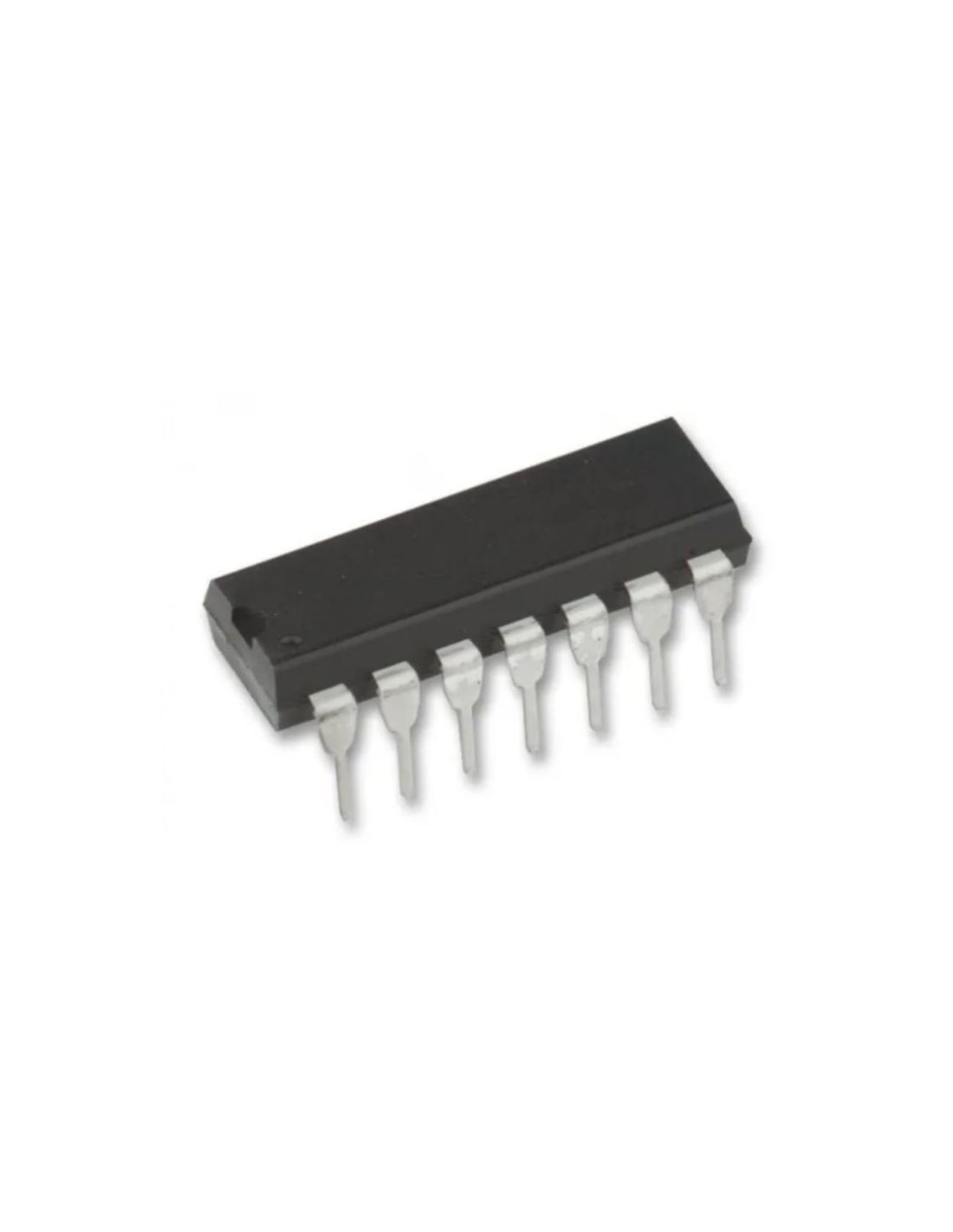

IC 74LS136 Quad 2-input XOR Gate (Open Collector)

IC 74LS136 Quad 2-input XOR Gate (Open Collector)

IC
IC74LS136
Part.No: 74LS136
€1.75
Upon Request
Delivered within 2-3 days


The 74LS136 is an IC with four 2-input XOR gates featuring Open Collector outputs. Operating Current: Typical 10mA (Icc). Operating Temperature Range: Commercial range 0°C to +70°C. Speed / Delay: Typical propagation delay (tPLH/tPHL) 20ns. Inputs / Outputs: 2 inputs per gate, Open Collector outputs (pull-up required). Functions: Exclusive OR (XOR) logic function with "Wired-AND" capability. Used for comparison, parity generation.
IC Case Style
DIP 14
