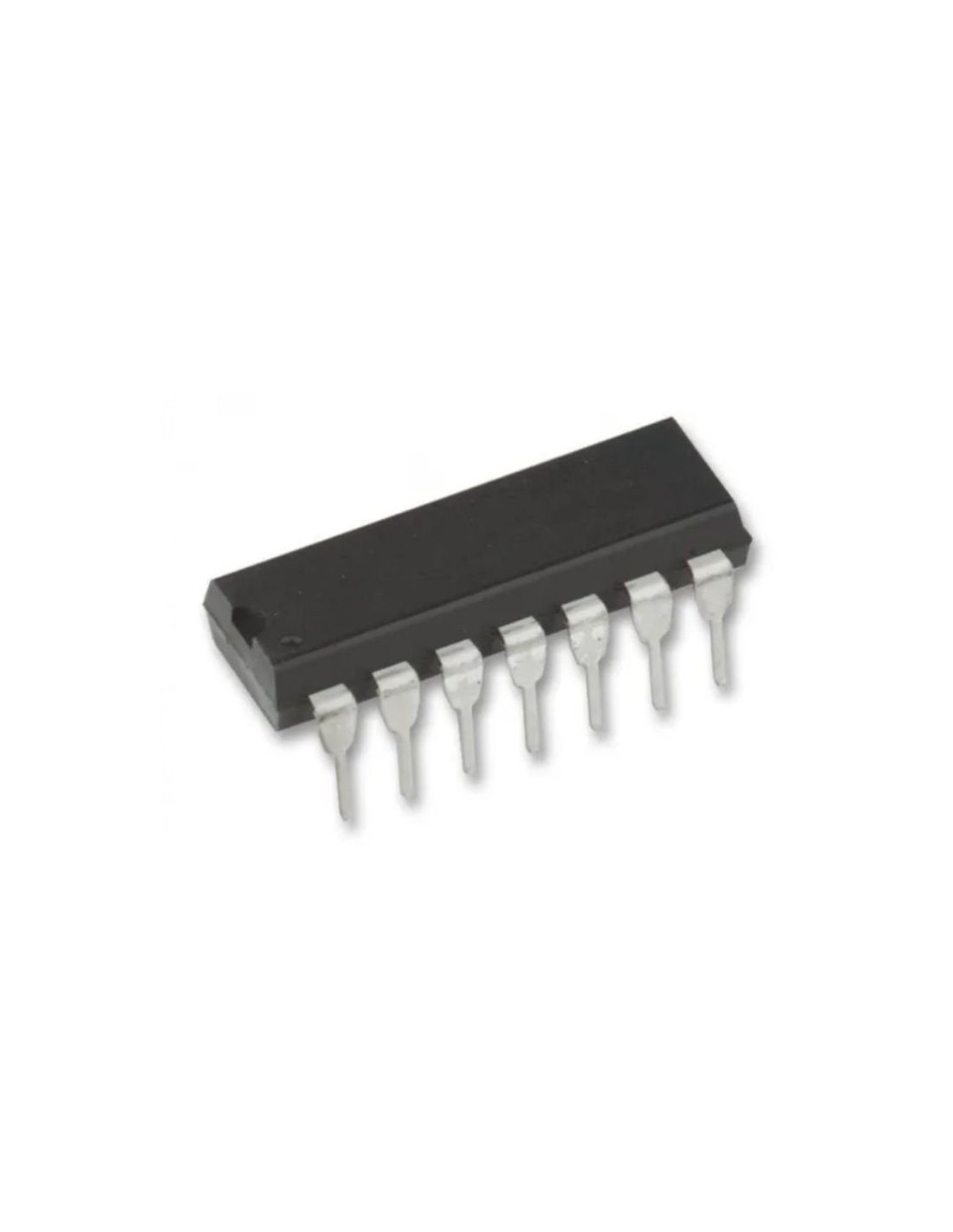

IC 74LS114 Dual J-K Flip-Flop (Negative-Edge, Preset/Clear)

IC
IC74LS114
Part.No: 74LS114
€1.96
Last items in stock
Immediate Dispatch



Dual JK Negative-Edge-Triggered Flip-Flop (with Preset, Clear & Common Clock)

  • Operating Voltage: 4.75V-5.25V (Typical 5V)
  • Number of Pins: 14
  • Logic Family: TTL
  • Functions: Two independent JK flip-flops that change state on the negative edge of a *common* clock pulse. Includes asynchronous preset and clear inputs. Differs from 74LS113 by having a single clock input for both flip-flops.
  • Inputs/Outputs: 2x J inputs, 2x K inputs, 1 common clock input, 2x preset, 2x clear, 2x Q outputs, 2x Q-bar outputs
IC Case Style
DIP 14
