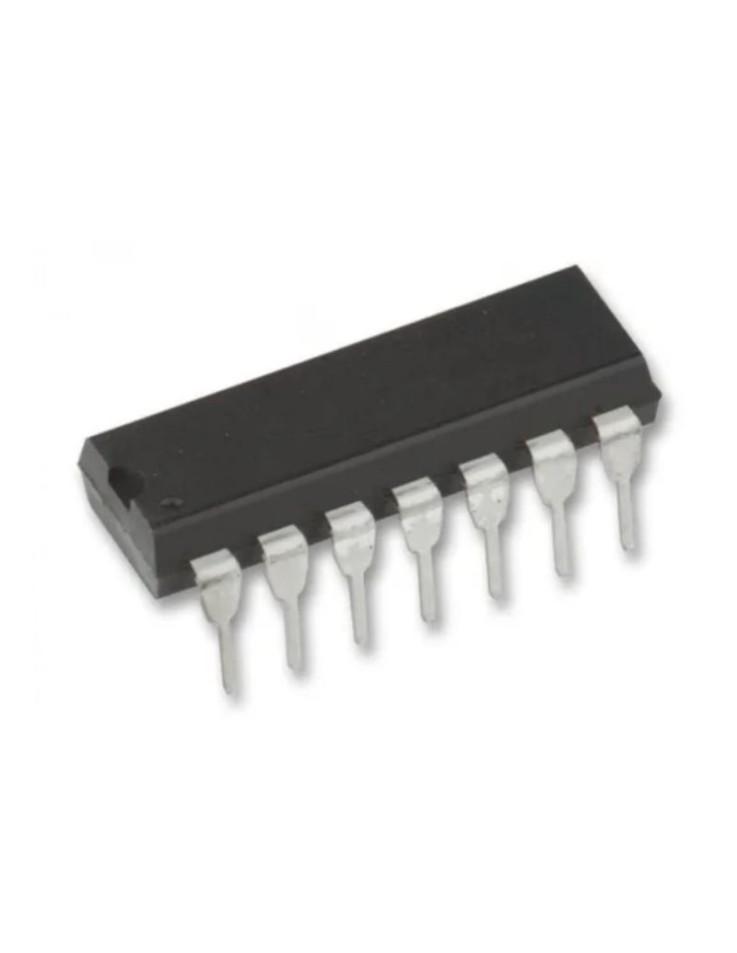

IC 74LS09 Quad 2-input AND Gate (Open Collector)

IC 74LS09 Quad 2-input AND Gate (Open Collector)

IC
IC74LS09
Part.No: 74LS09
€1.57
Last items in stock
Immediate Dispatch


The 74LS09 is an IC with four independent 2-input AND gates, with Open Collector outputs. Operating Current: Typical 7mA (Icc), maximum 20mA (Icc). Operating Temperature Range: Commercial range 0°C to +70°C. Speed / Delay: Typical propagation delay (tPLH/tPHL) 15ns. Inputs / Outputs: Open Collector outputs (requires external pull-up resistor). Functions: Basic AND logic function with "Wired-AND" capability.
IC Case Style
DIP 14
