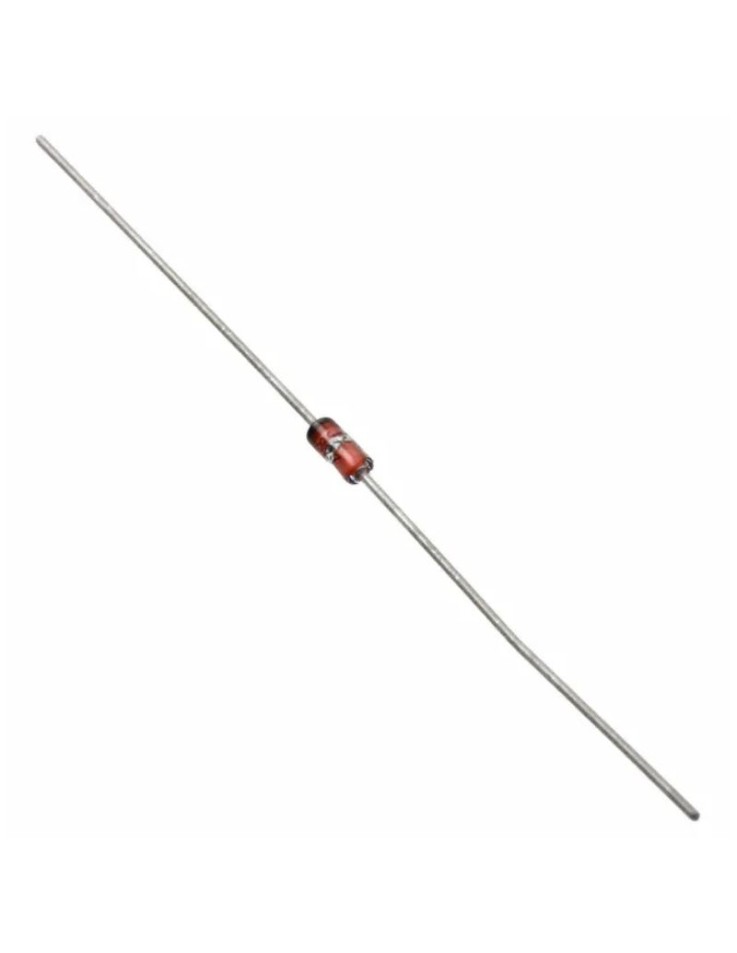

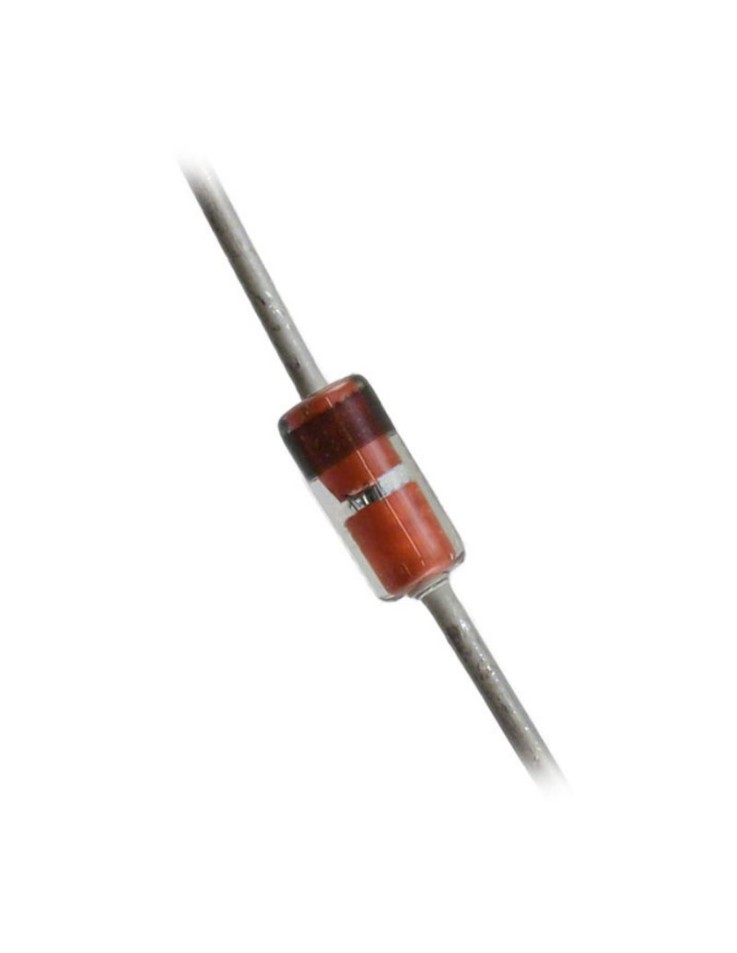

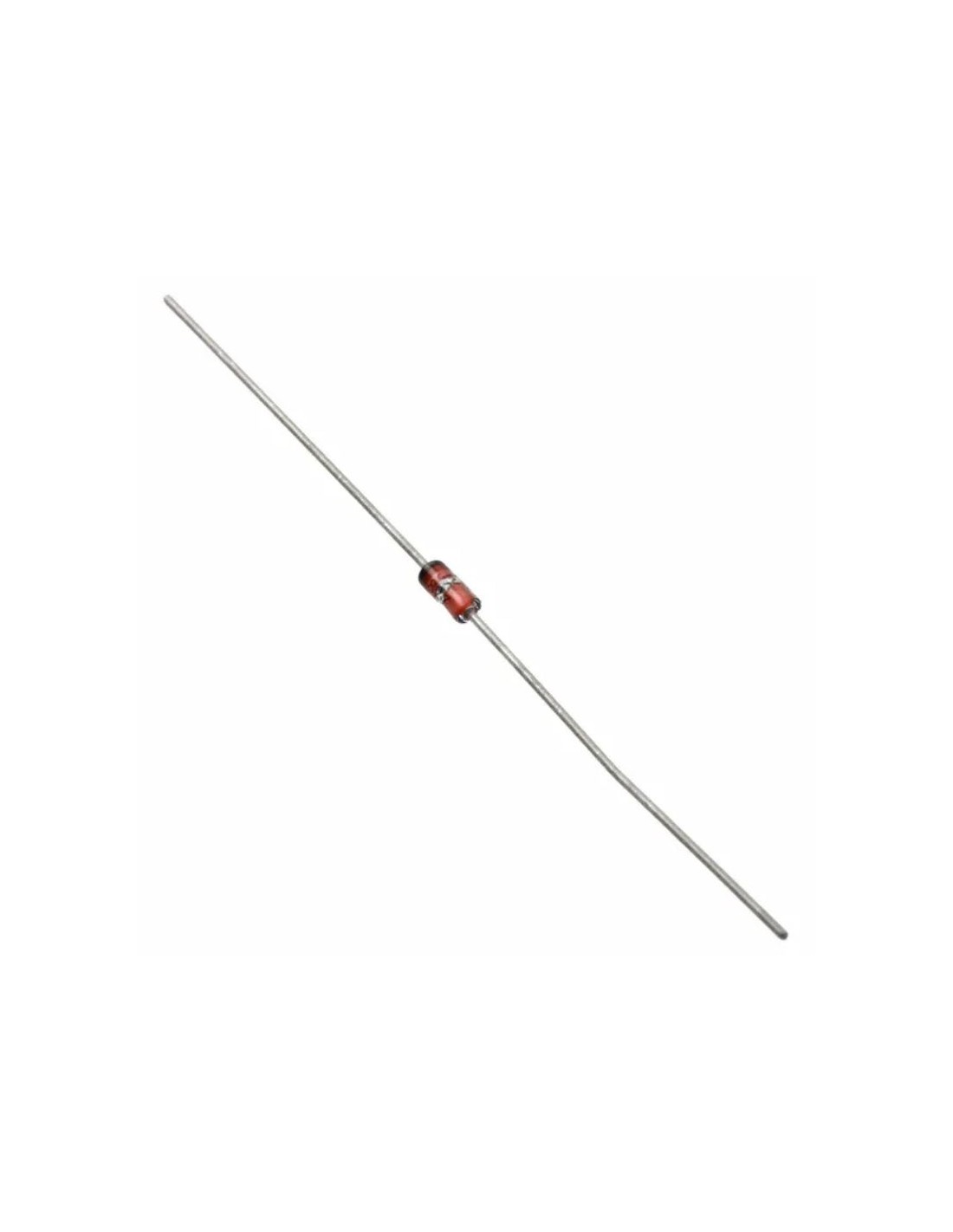

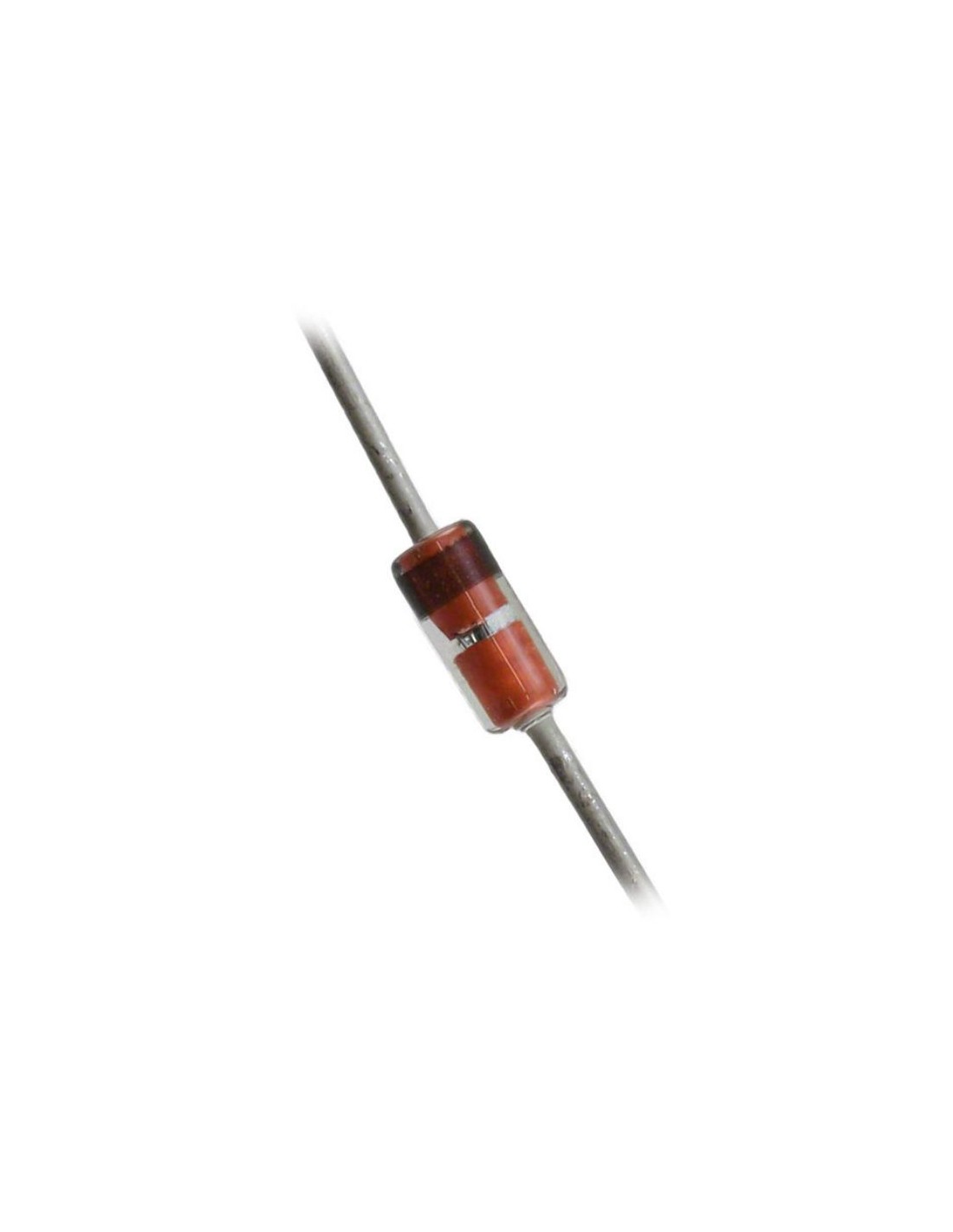

Diode Rectifier 1N914 - 100V
Diode Rectifier 1N914 - 100V
Diode Rectifier 1N914 - 100V
Diode Rectifier 1N914 - 100V

Diode Rectifier 1N914 - 100V

Diodes
DIO001
Part.No: 1N914
€0.30
In Stock
Immediate Dispatch



The 1N914 Rectifier Diode is an extremely reliable and fast switching diode, ideal for electronic applications that require high speed and durability. With a maximum reverse voltage of 100V and an average rectified current of 200mA, it is the perfect choice for rectification, switching, and protection circuits.

The 1N914 diode is well-known for its fast response time and low reverse leakage current, making it an essential component in a wide variety of circuits. It is suitable for:

  • Switching Circuits: Fast signal switching in digital applications.

  • Signal Rectification: Converting alternating current to direct current in low-power applications.

  • Circuit Protection: Protection against reverse polarity and voltage spikes.

Technical Specifications:

  • Model: 1N914

  • Type: Switching / Rectifier Diode

  • Max Reverse Voltage (Vr): 100V

  • Average Rectified Current (Io): 200mA

  • Max Peak Current (Ifsm): 1A

  • Reverse Recovery Time (trr): 4ns

  • Package Type: DO-35

  • Operating Temperature: -65°C to +150°C
