Projectile Launcher 90 Degree Angle PHILIP HARRIS

Projectile Launcher 90 Degree Angle PHILIP HARRIS

Forces & Motion
FOR520
Part.No: HC1008599
€155.00
Upon Request
Delivered within 15-20 days

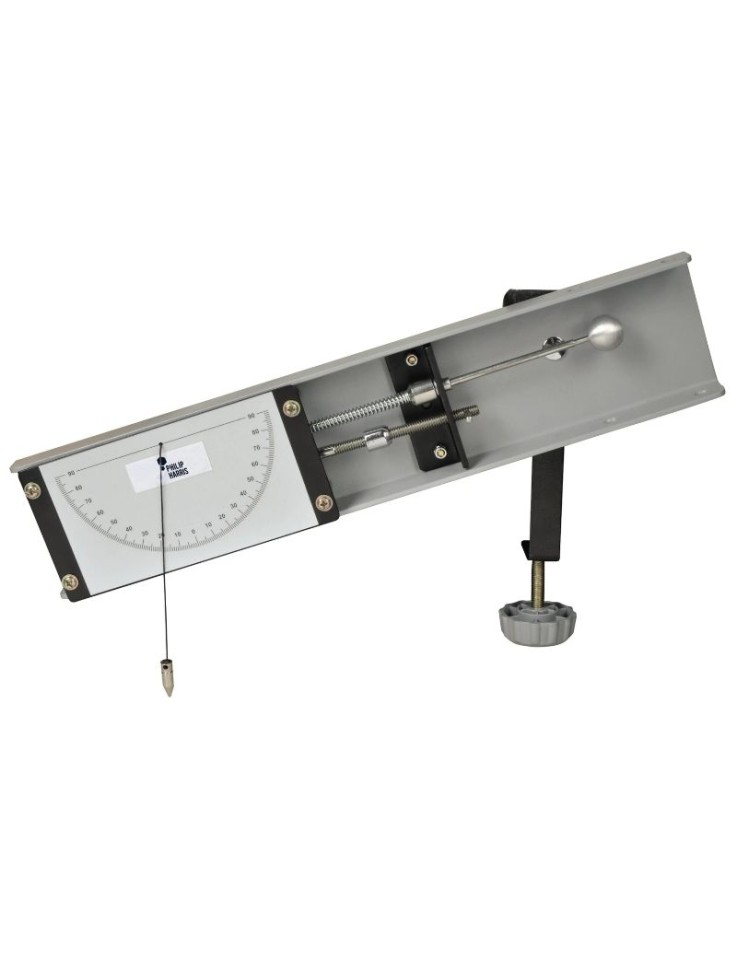

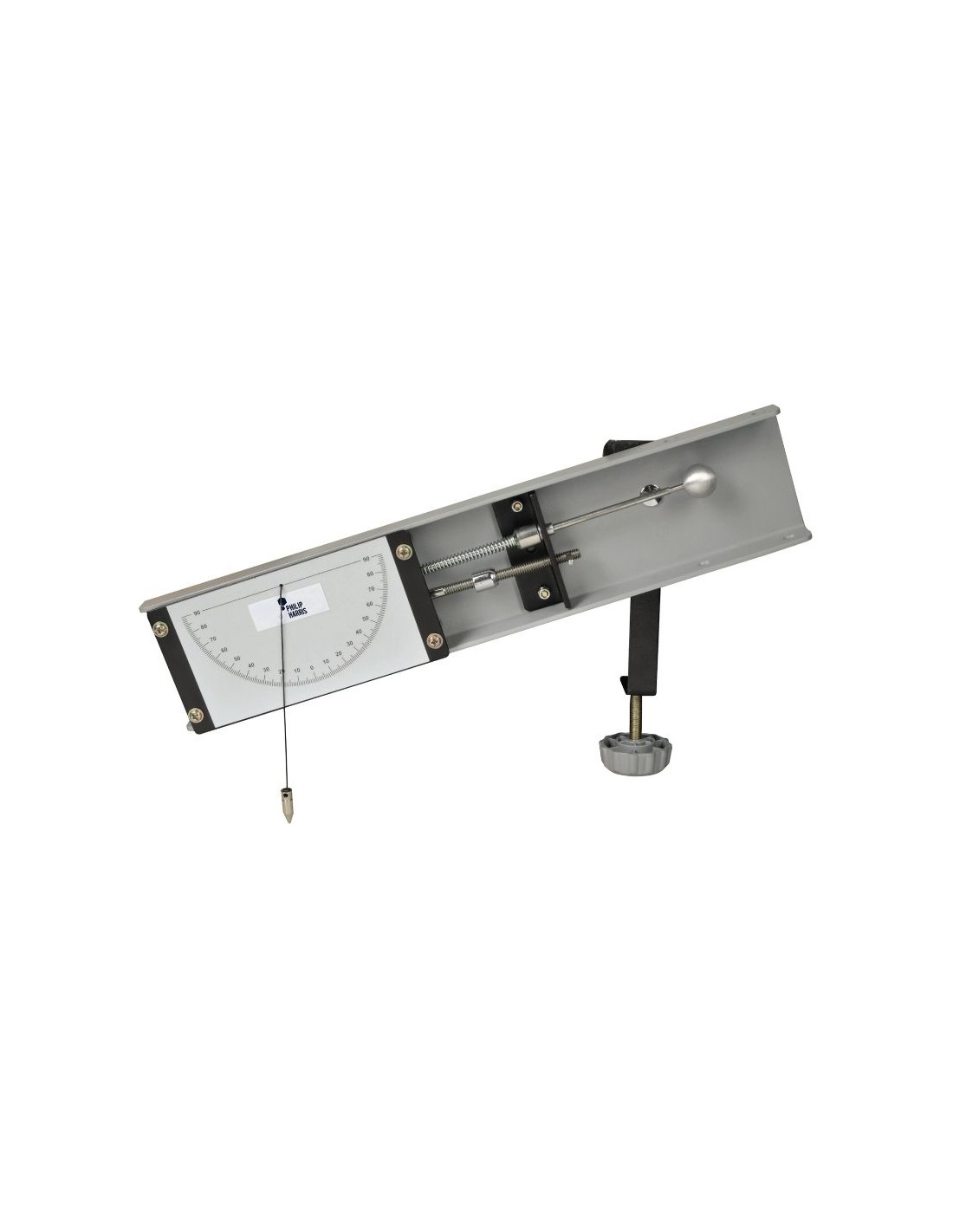

This projectile launcher features an adjustable launch angle across a full 90-degree range, with a built-in plumb-line angle measurer for precise setup. It is used in physics to study projectile motion at different launch angles.



Projectile Launcher for Studying Motion in Physics

Studying projectile motion requires repeatable, controlled launches at a known angle. This launcher lets students vary the launch angle and observe its effect on the projectile's trajectory.

  • Adjustable launch angle up to 90°: allows comparison of trajectories at different firing angles.
  • Spring-loaded rod mechanism: launches the ball (included) consistently and repeatably for each trial.
  • Plumb-line angle measurer: allows precise reading of the launch angle before each shot.

Frequently Asked Questions

Is the launch ball included?
Yes, the unit comes with a ball bearing that is used as the projectile in experiments.

How is it mounted to a work surface?
It attaches with a built-in clamp to a bench or work surface, ensuring stability during launch.

Launch angle range 0° - 90°
Launch mechanism Spring-loaded rod
Angle measurement Plumb line with angle measurer
Mounting Bench clamp
Use Studying projectile motion in physics

Package contents: 1x projectile launcher with launch ball and mounting clamp. Safety tip: make sure the area in front of the launcher is clear before each shot.
