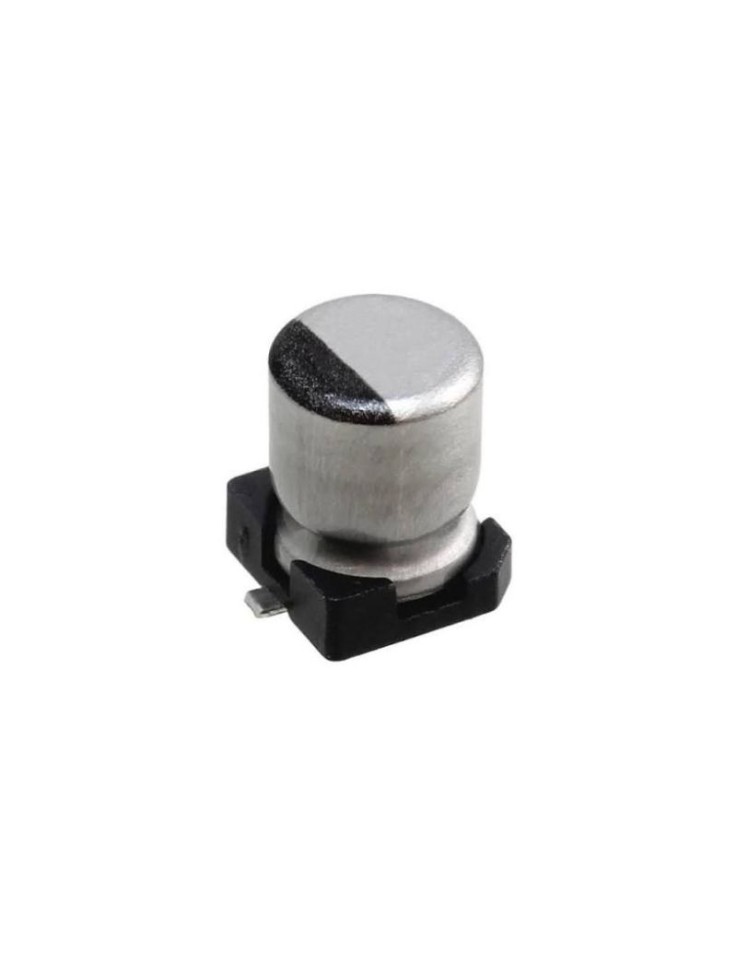

SMD Electrolytic Capacitor 47µF 35V Samwha SC

SMD Electrolytic Capacitor 47µF 35V Samwha SC

Electrolytic Capacitors
CAD372
Part.No: SC1V476M6L006VR
€0.50
Upon Request
Delivered within 2-3 days

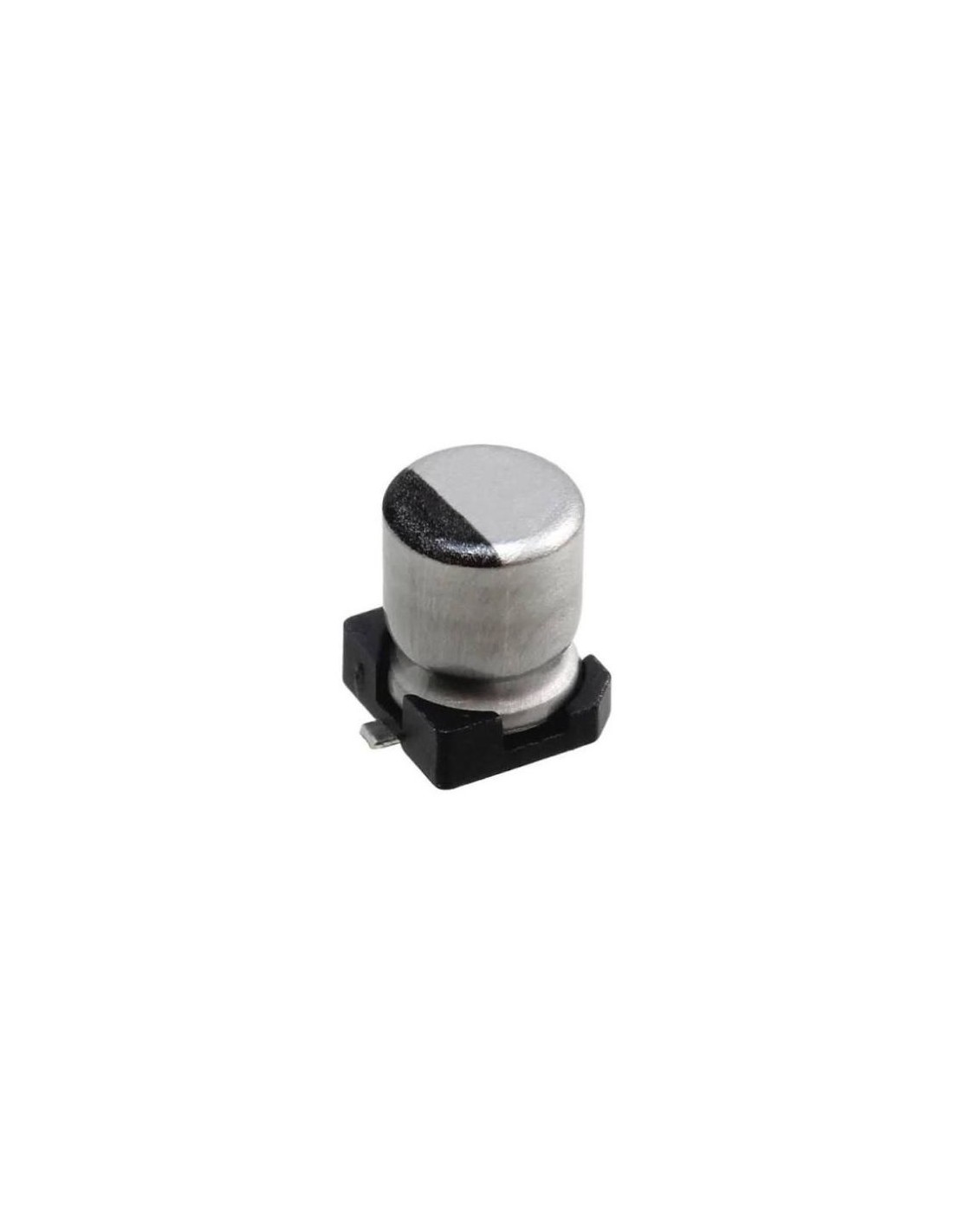

An SMD aluminium electrolytic capacitor rated 47 µF / 35 V DC from Samwha's SC series, with ±20% tolerance in a Ø6.3 x 5.8 mm V-chip package. It operates from -40 °C to +85 °C with a rated life of 2000 hours at 85 °C, for surface mounting in power supply and filtering circuits.



A 47 µF 35 V SMD capacitor for supply filtering and decoupling

Samwha's SC series covers standard filtering needs in power supplies and analogue stages. The 35 V rating leaves comfortable headroom on 12 V and 24 V rails.

  • 47 µF capacitance rated at 35 V DC with ±20% tolerance.
  • Ø6.3 x 5.8 mm SMD V-chip package for automated surface mounting.
  • Operating range -40 °C to +85 °C with a rated life of 2000 hours at 85 °C.
  • RoHS compliant and lead-free construction.
  • Suited to supply decoupling, DC-DC output smoothing and filtering in analogue stages.

Frequently Asked Questions

Is this 47 µF or 47 mF?
It is 47 microfarads (µF). An "m" would mean millifarads, a thousand times larger. The 476 code in the part number denotes 47 x 10^6 pF, that is 47 µF.

What working voltage is safe?
The rated voltage is 35 V DC and must not be exceeded. In practice a margin of at least 20% is preferred, which makes this part a comfortable fit on 12 V and 24 V rails.

What does the 2000-hour life rating mean?
It is the rated endurance under continuous operation at the maximum 85 °C. At lower temperatures life increases substantially — as a rule of thumb it roughly doubles for every 10 °C reduction.

Technical Specifications

Specification Value
Manufacturer Samwha
Manufacturer part number SC1V476M6L006VR
Series SC
Type Aluminium electrolytic capacitor, SMD
Capacitance 47 µF
Rated voltage 35 V DC
Capacitance tolerance ±20%
Diameter x height Ø6.3 x 5.8 mm
Mounting Surface mount (SMD, V-chip)
Operating temperature -40 °C to +85 °C
Rated life 2000 hours at 85 °C
Compliance RoHS, lead-free
Soldering note: electrolytic capacitors are polarised — the stripe on the can marks the negative terminal. Reverse mounting or exceeding the rated voltage destroys the part. Follow the manufacturer's specified reflow temperature profile.
Operating voltage (V)
35v
Capacitance (F)
47uF
