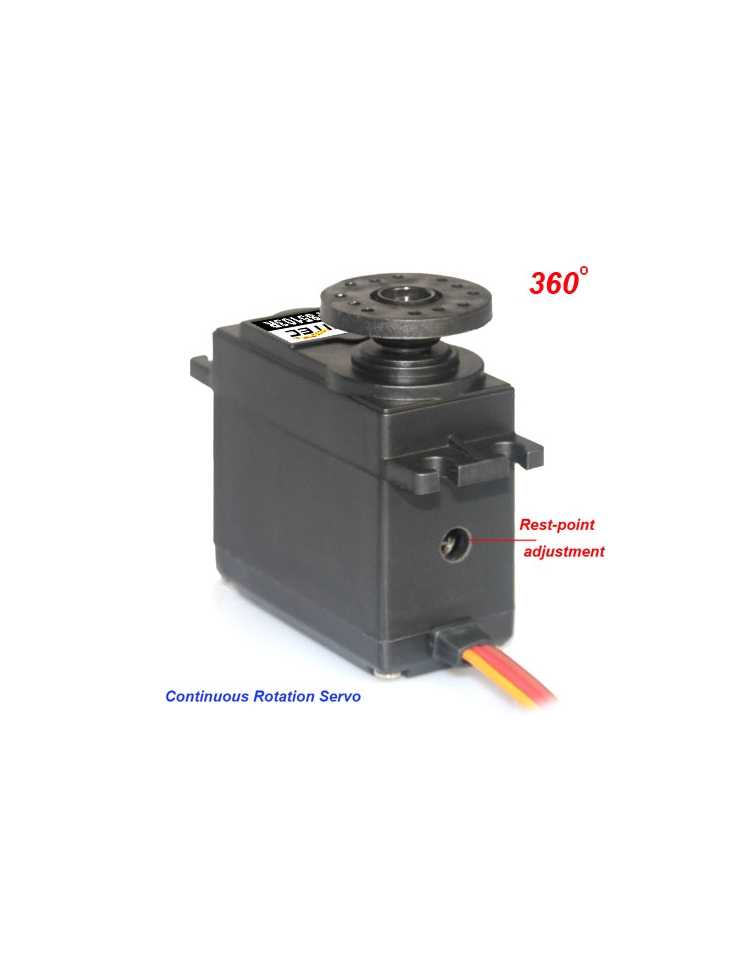

This servo FS5106R rotates fully forward or backward instead of moving to a position. You can use any servo code, hardware, or library to control these servos. Good for making simple moving robots. Comes with one horn only, as shown.

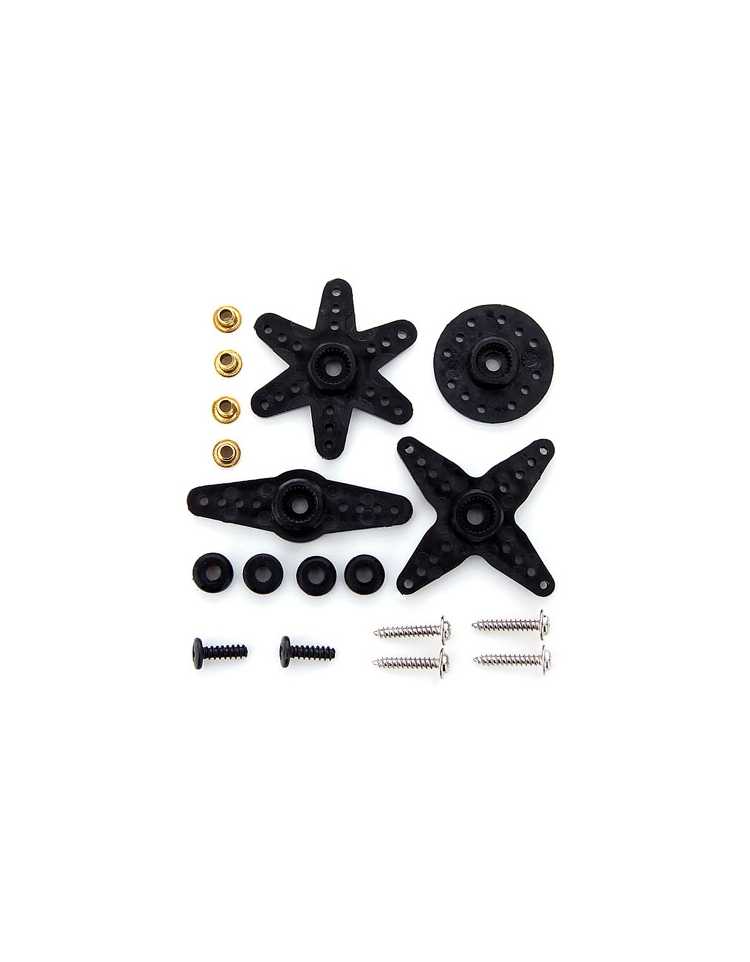

Includes 4 Arms as shown in the picture.
SPECIFICATIONS
Servo Standard: 25T (Futaba/Feetech)
Gear Type: Plastic
Rotation: 360°
Servo Operation: Analog
Servo Size: Standard
Speed (6V): 0.16sec/60°
Torque (6V): 6kg.cm
SPECIFICATIONS
- Operating Speed:
- 0.18sec/60degree (4.8V)
- 0.16sec/60degree (6V)
- Stall Torque:
- 5kg.cm/69.56oz.in(4.8V)
- 6kg.cm/83.47oz.in(6V)
- Operating Voltage: 4.8V~6V
- Control System: Analog
- Direction: CCW
- Operating Angle: 360degree
- Required Pulse: 500us-2500us
- Bearing Type: 2BB
- Gear Type: Plastic
- Motor Type: Metal
Dimensions
- 40.8 × 20.1 × 38 mm
- Weight: 40 g
- Connector Wire Length: 30 cm

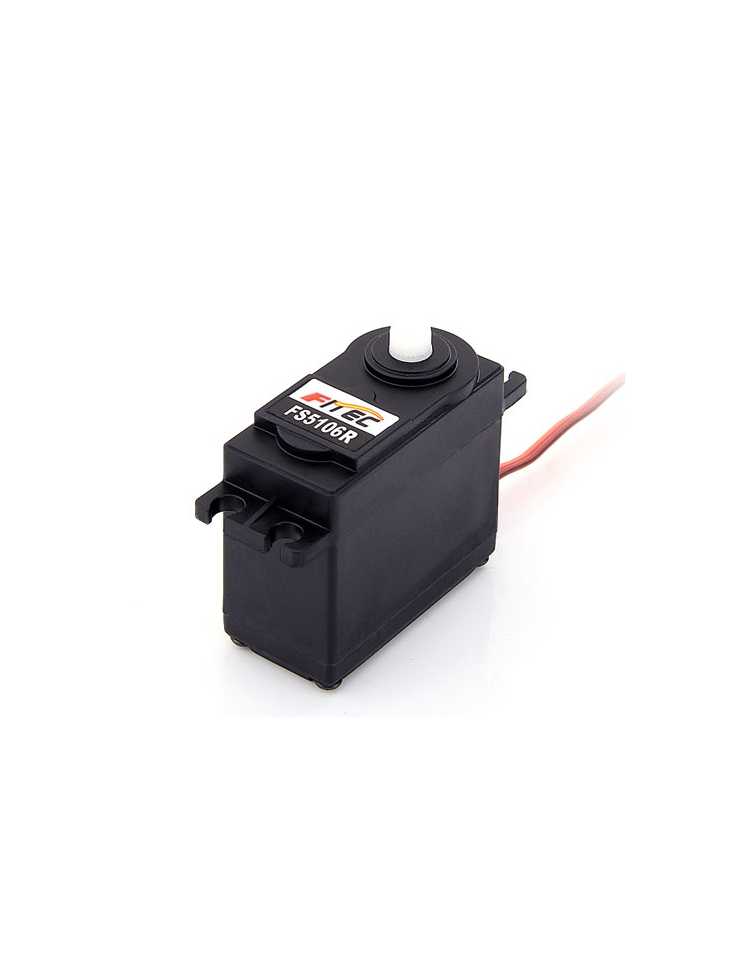

FS5106R
