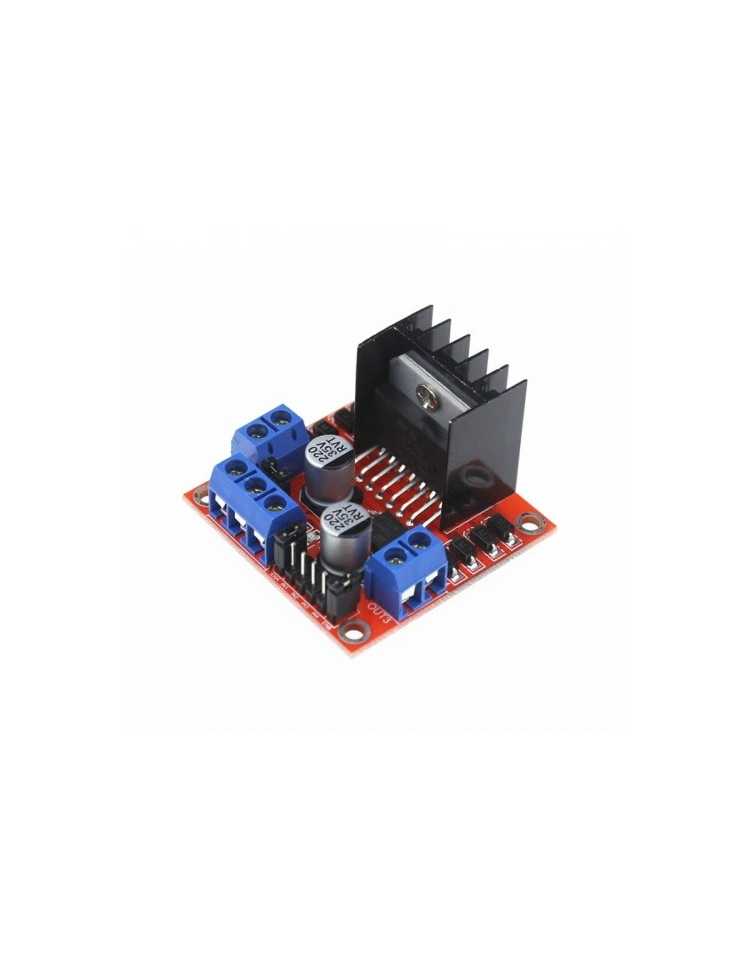

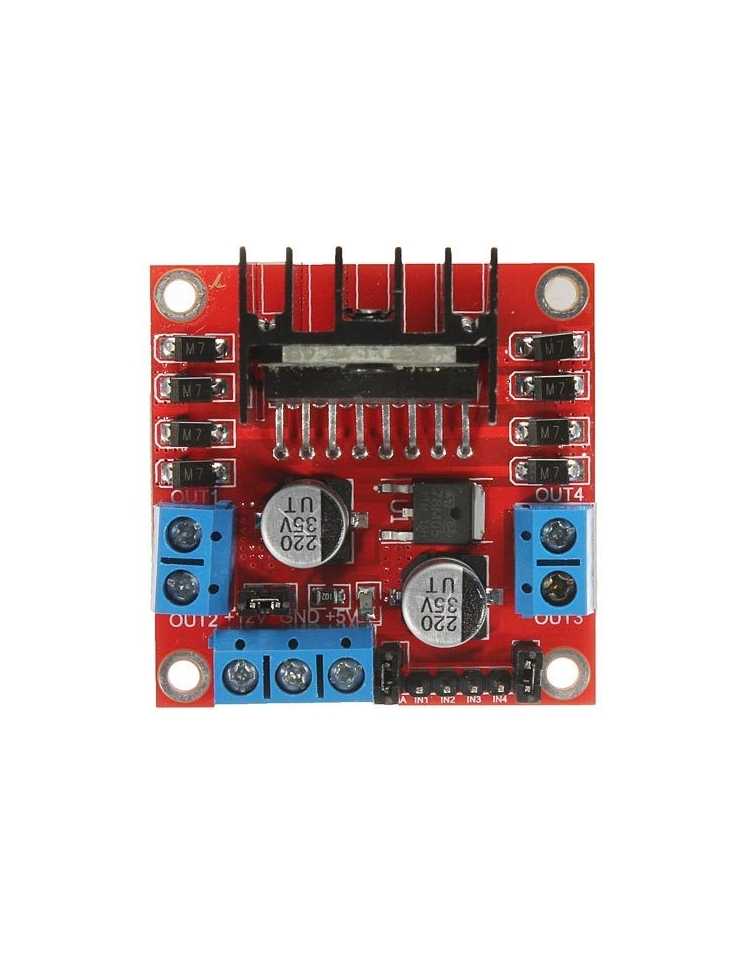

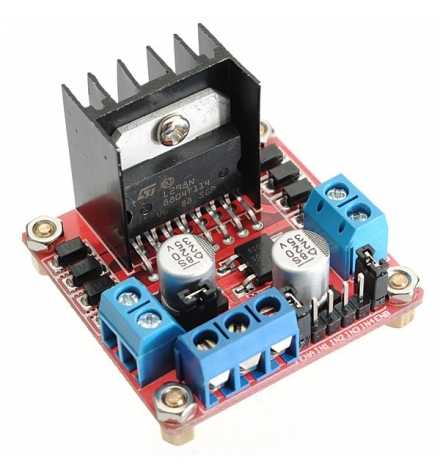

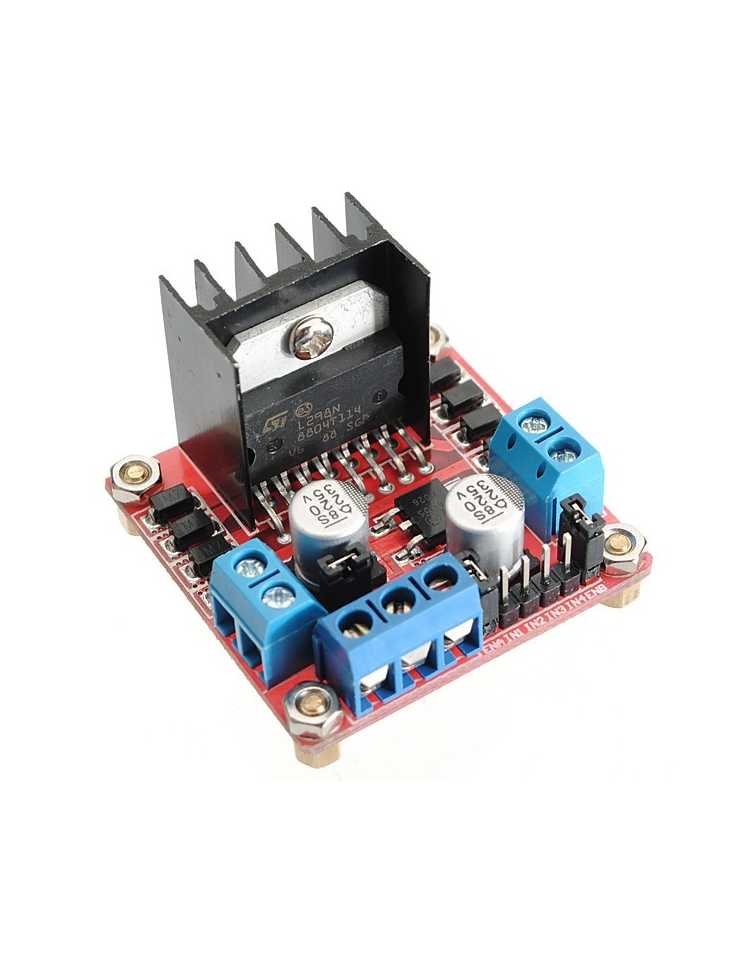

The L298N H-bridge module, allows you to control the speed and direction of two DC motors, or control one bipolar stepper motor with ease. The L298N H-bridge module can be used with motors that have a voltage between 5 and 35V DC. The L298N is an integrated monolithic circuit. It is a high voltage, a high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC, and stepping motors.
SPECIFICATIONS
Driver Type:
- DC Motor
- Stepper
Max. Current per Channel: 2A
SPECIFICATIONS
- Driver: L298N Dual H Bridge DC Motor Driver IC
- Motor Power Supply Vs: +5 V to +35 V
- Max average current: 2A
- Peak current Io: 3A
- Logic Level Power Vss: +5 V ~ +7 V (Onboard 5V Regulator can be used if Motor Power is > 7.0V)
- Logic level power: 0 - 36mA
- Logic signal input range: [ Low:-0.3V ≤ Vin ≤ 1.5V] [ High: 2.3V ≤ Vin ≤ Vss]
- Maximum power dissipation: 20W (when the temperature T = 75 ℃)
L298N
Operating voltage | 2.5-12 |
Power (W) | 90 |
