Tactile Switch 12x12mm 12mm 4pins

Tactile Switch 12x12mm 12mm 4pins

SWTA026

New product

€0.40

Add to my wishlist

Add to Compare

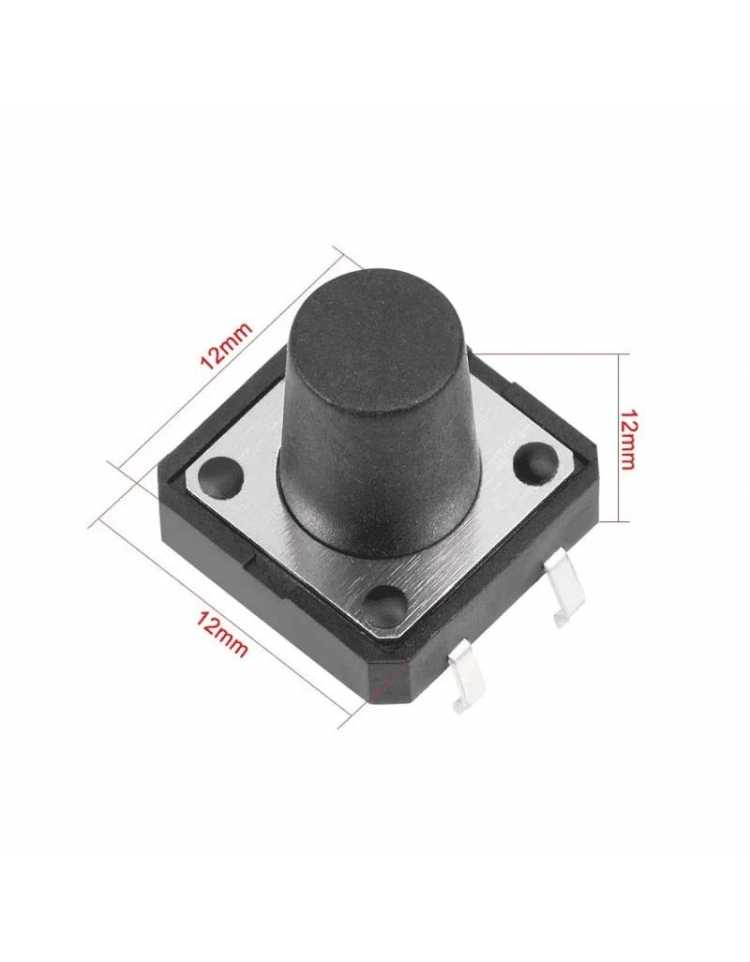

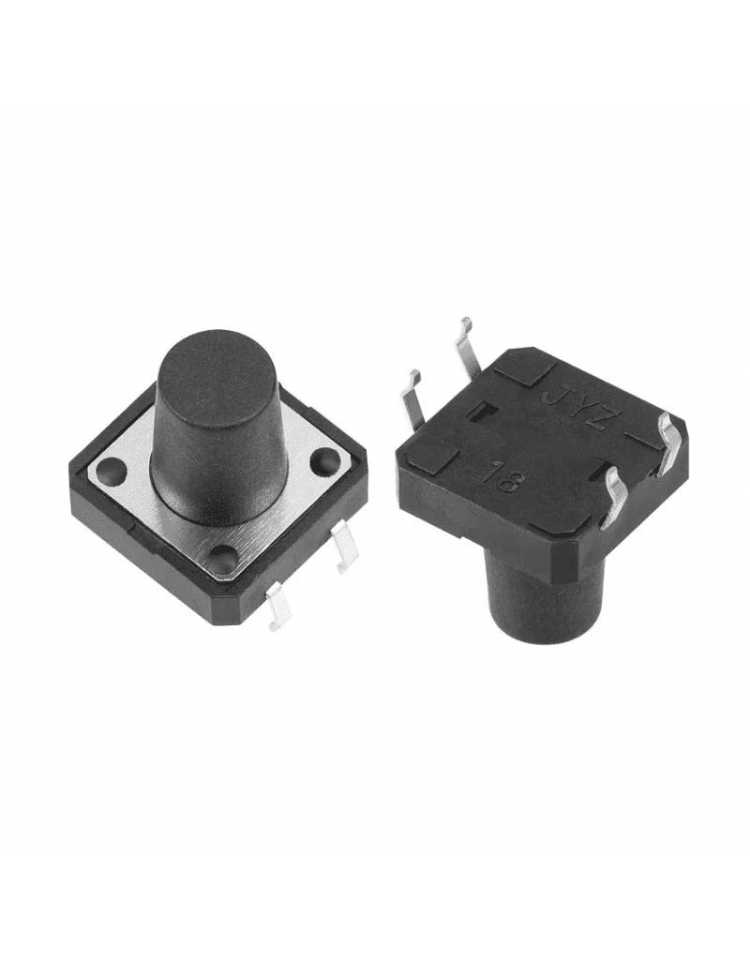

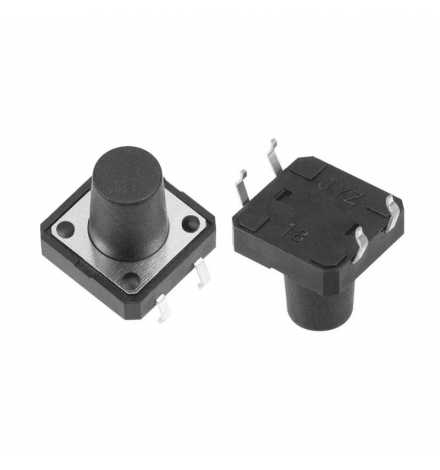

A miniature through hole tactile switch.

  • 12 x 12mm
  • Height 12mm
  • Positive switch action
  • Normally open single pole contacts
  • Four terminal mounting for additional stability

Contact rating 500mA 12V DC
Contact resistance ≤30mΩ max
Travel 0.25mm
Insulation resistance ≥100MΩ min at 500V dc
Dielectric strength 250V AC for 1 minute
Operating temperature –30°C to + 70°C
