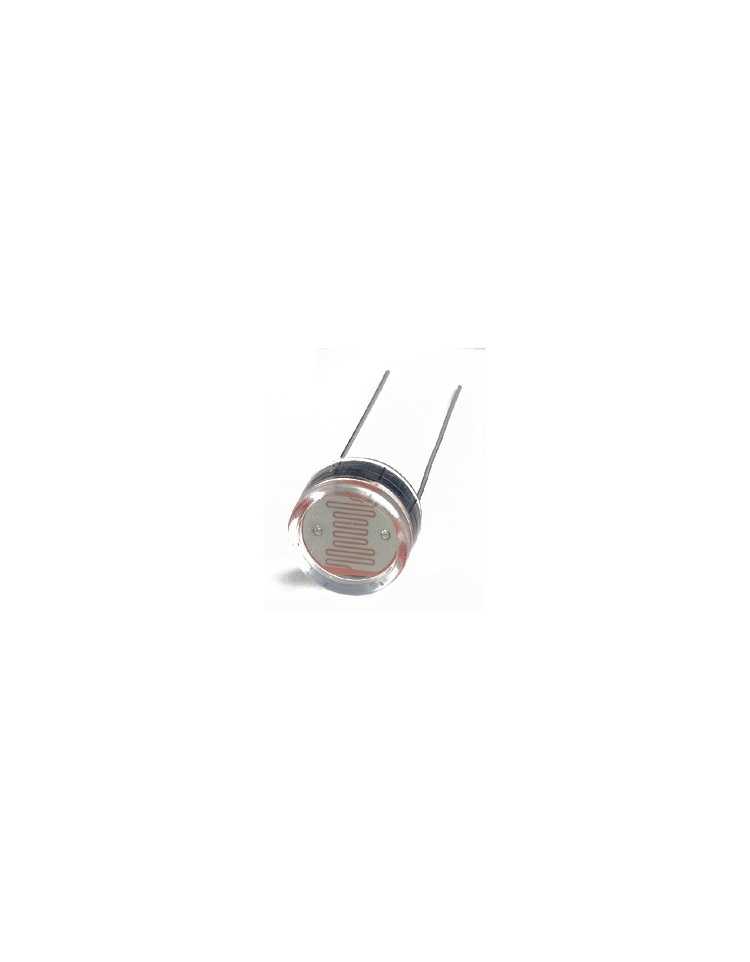

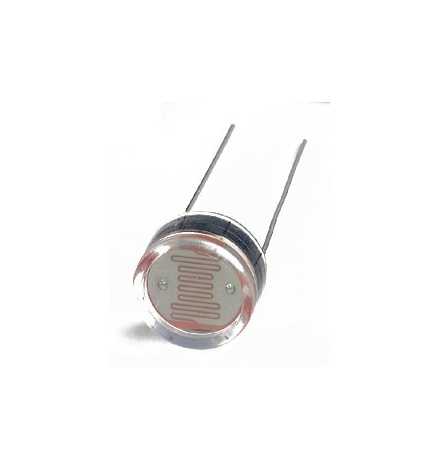

Light Dependent Resistor (LDR) 12mm NORPS
RES914
New product
Non-RoHS Photoconductive cadmium sulfide cell with a spectral response similar to the human eye.
As the light falling on the cell increases, so the resistance of the cell decreases.
Peak spectral response: |
Typ. 550 nm |
| Cell resistance: | 9KW at 10 lux. |
| 400W at 1000 lux. | |
| Dark resistance: | Min. 1MW |
| Maximum dissipation: | 250 mW at 30°C. |
| Maximum voltage: | 250V peak AC or DC |
This device contains cadmium sulfide, which is restricted by the RoHS directive, and therefore not RoHS compliant
NORPS12
