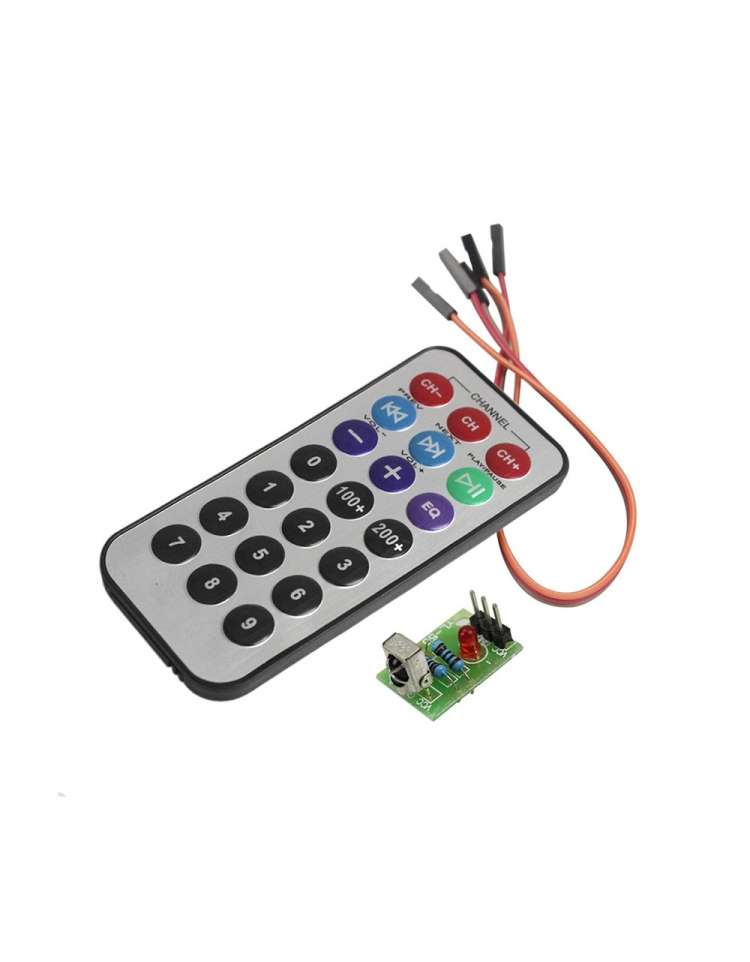

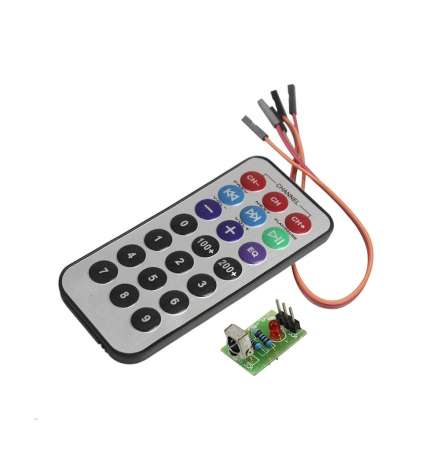

Infrared Remote Control Module

SWK800

New product

€4.00

Warning: Last items in stock! Please contact us to confirm availability

1 VCC external 3.3V-5V voltage (can be directly connected with the 5V MCU and 3.3V chip)

2 GND external GND

3 IN external microcontroller I/O port, I/O port has been designed with 10K pull-up resistor

Theoretical test suite from 5-8 meters, but the surrounding environmental factors depends on when you use the actual application and intermediate barrier (e.g. diaphragm, glass, hinder the barrier or other materials), receiving head using HX1838, with a power indicator light, can receive the 38K frequency of any remote control coding data!

PRODUCT FEATURE

  1. sensor using HX1838, high sensitivity
  2. working voltage 5v
  3. output: digital output

HX1838
